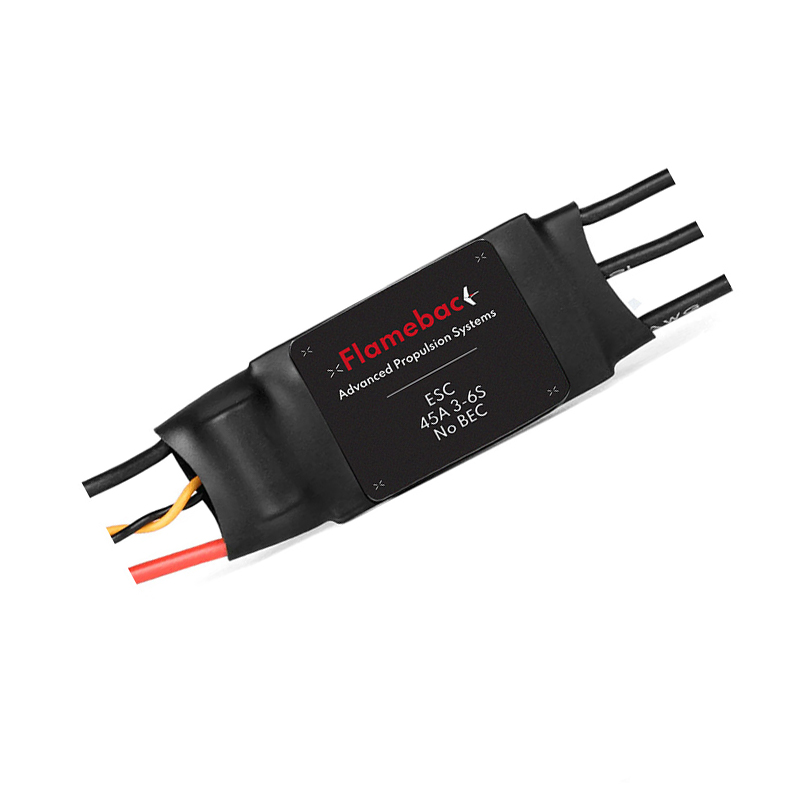

Flameback 45A 6S Brushless ESC (Pack of 2)
Flameback 45A 6S Brushless ESC (Pack of 2) - Image 2
SKU: DRFC-0062
📋 GST Invoice Available

Flameback 45A 6S Brushless ESC (Pack of 2)

₹12,039.00 (Inclusive of all taxes)
Out of Stock

This Flameback 45A 6S ESC delivers robust and efficient power management for advanced drone applications, supporting a wide range of protocols including DSHOT600. Designed for reliability, it ensures stable and responsive motor control across various flight conditions.

Features

  • Robust 45A continuous / 50A burst current capacity for demanding drone setups.
  • Wide 3-6S LiPo input voltage compatibility for versatile power configurations.
  • Supports PWM, Oneshot125/42, Multishot, and DSHOT150/300/600 digital protocols.
  • Equipped with full NMOS, dedicated MOSFET drivers, and low ESR Rubycon capacitor for optimal efficiency and noise reduction.
  • Advanced safety features including overcurrent, undervoltage, overvoltage, and temperature protection.

Out of stock

Description

Introducing the Flameback 45A 6S Electronic Speed Controller (ESC), meticulously designed for advanced drone applications. This high-performance unit provides robust power delivery and exceptional reliability for demanding flight scenarios. Its architecture integrates full NMOS for fast switching and drives triple phases via dedicated MOSFET drivers, ensuring optimal motor control.

Equipped with a low ESR Rubycon Capacitor (0.15Ω) pre-attached on the power lines, the ESC achieves noise-free operation and stable voltage delivery. Ultra-low resistance, bigger package MOSFETs (~1mΩ) contribute to high efficiency, minimal heat generation, and superior heat dissipation. With a compact form factor and advanced safety features, this ESC is built to be a workhorse, sustaining continuous operation for extended periods while maintaining superb performance.

Key Features

  • Full NMOS architecture for rapid switching response.
  • Dedicated MOSFET driver for efficient triple-phase motor control.
  • Pre-attached low ESR Rubycon Capacitor (0.15Ω) for noise-free power delivery.
  • Ultra-low resistance, large package MOSFETs (~1mΩ) for high efficiency and minimal heat.
  • Superior thermal dissipation and repairability for extended operational lifespan.
  • Integrated advanced safety suite: overcurrent, undervoltage, overvoltage, and temperature sensing.
  • Optimized power-to-size ratio, minimizing weight without compromising capability.
  • Includes full silicon signal and power wires for reliable connectivity.

Applications

  • FPV freestyle and racing drones requiring robust power.
  • Cinematic and professional camera drones for smooth flight.
  • Custom multirotor builds for various commercial or hobby applications.

Technical Specifications

Item TypeElectronic Speed Controller
Voltage Rating11.1V to 22.2V (3-6S LiPo)
Current Rating45A (Continuous), 50A (Burst)
Supported ProtocolsPWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, DSHOT600
Length45mm
Width27.5mm
Weight19.55g
Temperature Gradient120°C
MOSFET ESR~1mΩ
Capacitor ESR0.15Ω

Frequently Asked Questions

What input voltage range does this Flameback 45A ESC support?

This ESC is designed to operate with a 3-6S LiPo battery, translating to a voltage range of 11.1V to 22.2V. This broad compatibility allows it to be used in various drone configurations, providing ample power for both freestyle and racing setups. It ensures consistent performance across different cell counts.

Which communication protocols are supported by the Flameback 45A ESC?

The Flameback 45A ESC supports a comprehensive suite of digital and analog protocols, including PWM, Oneshot125, Oneshot42, Multishot, DSHOT150, DSHOT300, and DSHOT600. This versatility allows seamless integration with most modern flight controllers, providing precise and reliable motor control for enhanced flight characteristics.

What advanced protection features are integrated into this ESC?

This ESC incorporates multiple advanced safety features to protect your drone components. These include overcurrent protection, undervoltage cutoff, overvoltage protection, and active temperature sensing. These mechanisms collectively safeguard the ESC and motors from potential damage due to extreme operating conditions, enhancing system longevity and reliability.

How does the Flameback ESC ensure efficient thermal management?

The ESC features ultra-low resistance, large package MOSFETs (~1mΩ) that minimize heat generation during operation. Coupled with a design focused on superb heat dissipation and repairability, it ensures the unit remains cool under heavy loads. This efficient thermal management is crucial for sustaining continuous high-performance flights without thermal throttling.

Package Includes

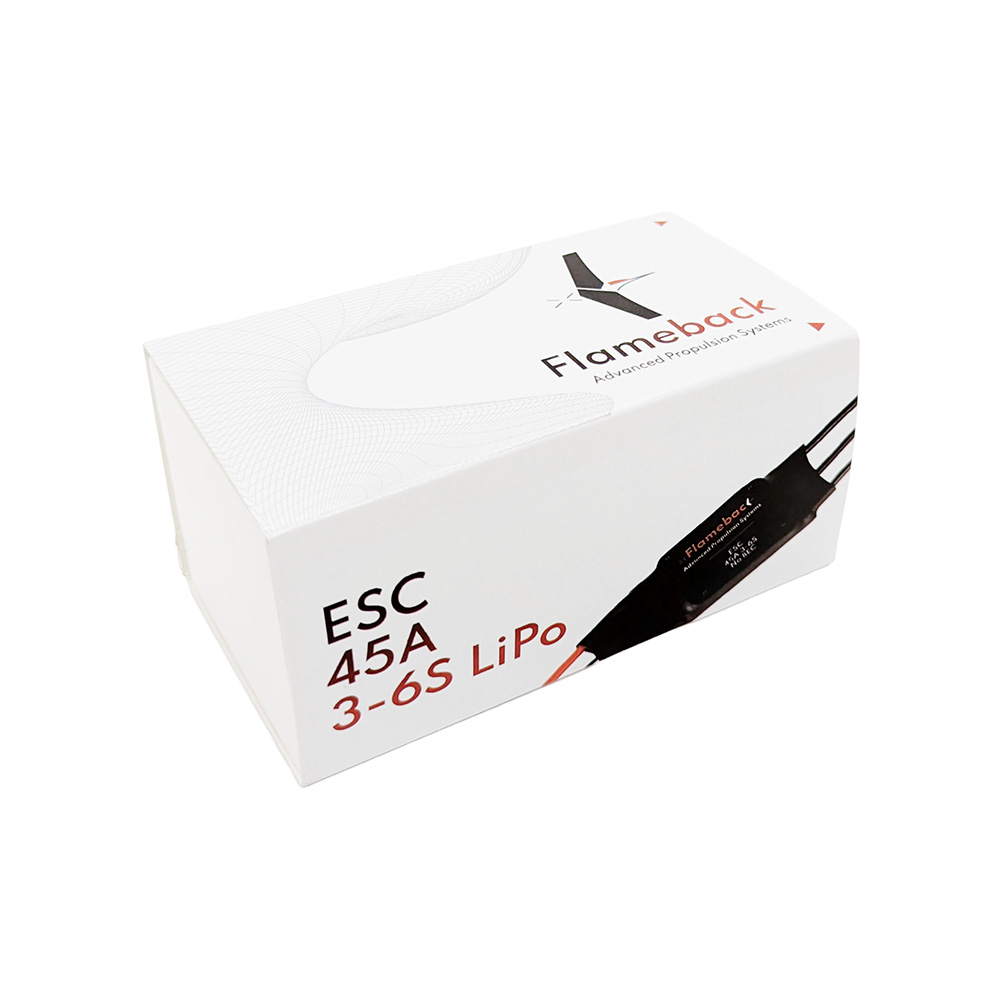

  • 2x Flameback 45A 6S Electronic Speed Controller (ESC)

Additional Information

Dimensions 4.5 × 2.75 cm
