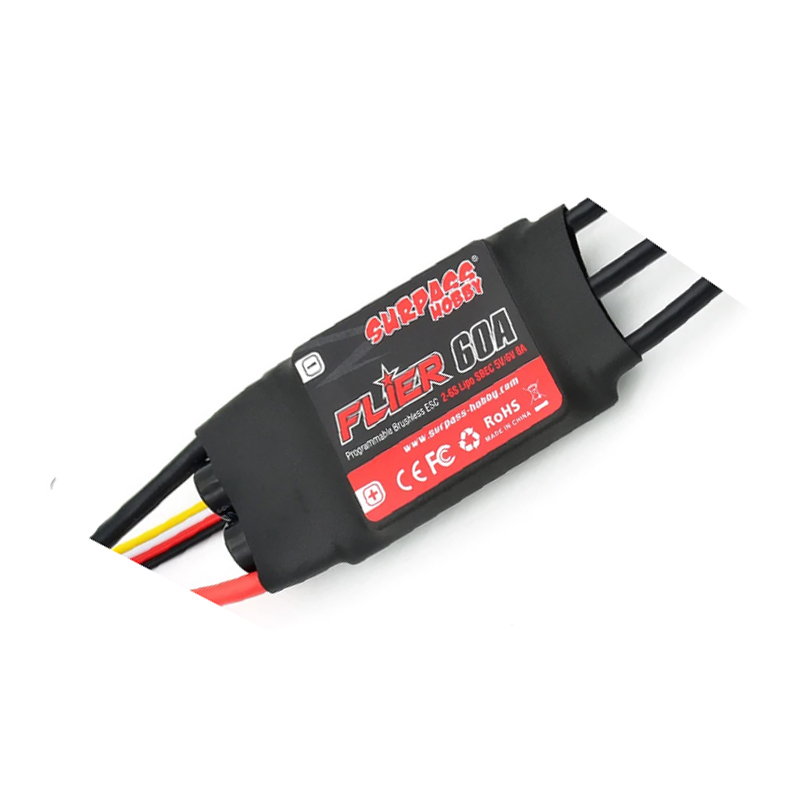

Surpass Hobby 60A SBEC ESC 2-6S LiPo w/ 4.0mm Connector

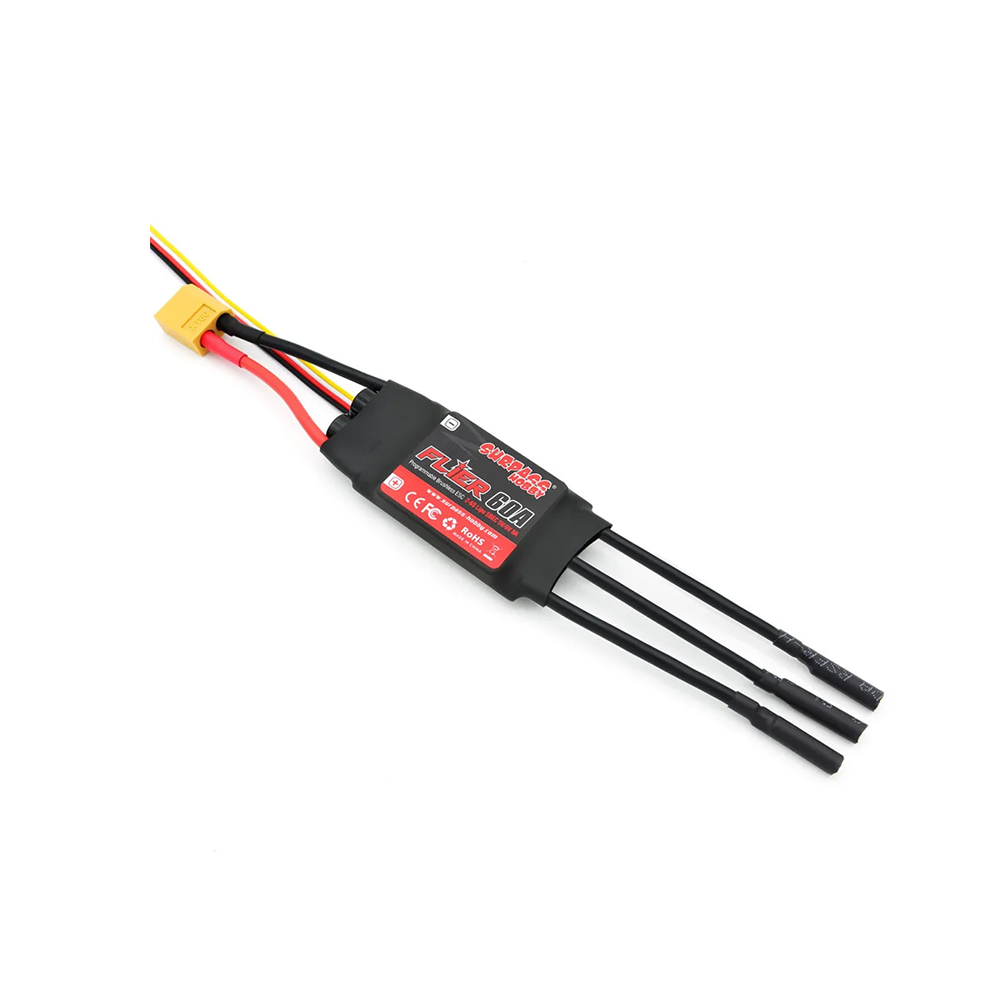

Surpass Hobby 60A SBEC ESC 2-6S LiPo w/ 4.0mm Connector - Image 2
SKU: DRFC-0105
📋 GST Invoice Available

Surpass Hobby 60A SBEC ESC 2-6S LiPo w/ 4.0mm Connector

₹3,019.00 (Inclusive of all taxes)
Out of Stock

The Surpass Hobby 60A ESC delivers precise motor control and robust power handling for RC aircraft, supporting 2-6S LiPo and 5-18NC NiMH batteries. Featuring an integrated 5V/6V 8A SBEC, it ensures stable power for all onboard electronics, ideal for fixed-wing and multi-rotor applications.

Features

  • Robust 60A continuous current with 70A burst capability.
  • Wide input voltage compatibility: 2-6S LiPo or 5-18NC NiMH.
  • Integrated Switch-mode BEC providing stable 5V or 6V at 8A output.
  • Compact 70x34x10mm design for seamless integration into diverse airframes.
  • Equipped with durable 4.0mm connectors for secure power transmission.

Out of stock

Description

The Surpass Hobby 60A ESC is an advanced electronic speed controller meticulously engineered to provide precise motor control and robust performance for various RC aircraft. Its compact design and versatile feature set make it well-suited for a wide range of fixed-wing and multi-rotor applications, ensuring optimal flight dynamics and reliable operation under demanding conditions.

This ESC is designed with efficient heat dissipation mechanisms, allowing it to operate for extended periods without overheating. The integrated Switch-mode Battery Eliminator Circuit (SBEC) delivers stable output voltages of 5V or 6V at up to 8A, effectively powering onboard electronics like servos and receivers without requiring an additional unit. Its broad battery compatibility, supporting 2-6S LiPo and 5-18NC NiMH, offers flexibility for different aircraft configurations and flight durations, enhancing its utility across various drone and RC plane builds.

Key Features

  • **Wide Battery Compatibility:** Supports LiPo batteries ranging from 2 to 6 cells and NiMH batteries from 5 to 18 cells, offering versatility for various aircraft configurations and flight durations.
  • **High Current Handling:** Provides 60A continuous current and a burst current of 70A for 10 seconds, ensuring ample power for demanding maneuvers and high-performance applications.
  • **Integrated Switch-mode SBEC:** Equipped with a Switch-mode Battery Eliminator Circuit (SBEC) delivering stable 5V or 6V output at up to 8A, reliably powering servos, receivers, and other onboard electronics.
  • **Compact & Lightweight Design:** Measures 70mm x 34mm x 10mm, enabling seamless integration into most aircraft setups while optimizing space and minimizing overall weight for improved flight performance.
  • **Efficient Heat Dissipation:** Engineered with effective thermal management, allowing extended operation under demanding flight conditions without performance degradation or overheating.
  • **Secure 4.0mm Connectors:** Features industry-standard 4.0mm connectors for reliable and efficient connections to the motor and battery, minimizing connectivity issues.

Applications

  • RC Fixed-wing aircraft (gliders, trainers, warbirds)
  • Multirotor drones (freestyle, racing, utility)
  • General purpose RC models requiring robust ESC with BEC
  • Experimental UAV platforms

Technical Specifications

Item TypeElectronic Speed Controller (ESC)
BrandSurpass Hobby (Flier Series)
Continuous Current60A
Burst Current70A (10 seconds)
Battery CompatibilityLiPo 2-6S, NiMH 5-18NC
Voltage Rating (V)7.4V to 22.2V
SBEC Output5V/6V, 8A (Switch-mode)
Dimensions (L x W x H)70mm x 34mm x 10mm
Connector Type4.0mm

Frequently Asked Questions

What battery types are compatible with this ESC?

The Surpass Hobby 60A ESC is compatible with 2-6 cell LiPo and 5-18 cell NiMH batteries. This wide battery compatibility allows it to power diverse RC aircraft, including fixed-wing planes and multi-rotor drones. It ensures reliable and consistent flight performance for various setups, providing flexibility for builders.

What is the output capability of the integrated SBEC?

The integrated Switch-mode Battery Eliminator Circuit (SBEC) provides a stable output of either 5V or 6V, delivering up to 8A. This robust power supply is crucial for reliably powering essential onboard electronics like servos, flight controllers, and receivers without needing a separate BEC unit. It simplifies wiring.

What are the physical dimensions and connector type?

This ESC features a compact design, measuring 70mm in length, 34mm in width, and 10mm in height. It is equipped with standard 4.0mm connectors, ensuring secure and efficient power transmission between the battery, ESC, and motor. This design simplifies installation and enhances overall system reliability for various setups.

Can this ESC be used for both fixed-wing and multi-rotor aircraft?

Yes, the Surpass Hobby 60A ESC is engineered for broad application across RC aircraft. Its robust 60A continuous current handling and versatile SBEC make it suitable for both fixed-wing models requiring precise throttle control and multi-rotor drones demanding responsive and stable motor management, ensuring optimal flight dynamics.

Package Includes

  • 1 x Surpass Hobby 60A ESC (2-6S LiPo/5-18NC NiMH, 5V/6V 8A SBEC, 4.0mm Connector)

Additional Information

Dimensions 7 × 3.4 × 1 cm

Related Products

Out of Stock

Surpass Hobby 100A 2-6S SBEC 5V/6V/8A ESC

4,589.00
Learn More
Out of Stock

T-Motor AT 75A 6S Brushless ESC

4,239.00
Learn More
Out of Stock

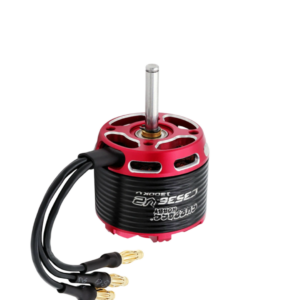

Surpass Hobby C3536 14-Pole Outrunner Brushless Motor for Fixed Wing Aircraft - 1300KV

2,529.00
Learn More
Out of Stock

Surpass Hobby 80A 2-6S SBEC ESC w/ 4.0mm Connector

3,619.00
Learn More
Out of Stock

RadioLink Pixhawk Flight Controller Board

15,389.00
Learn More
Out of Stock

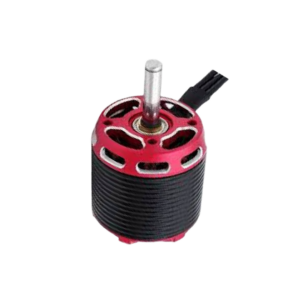

Surpass Hobby C3536 14-Pole Outrunner Brushless Motor for Fixed Wing Aircraft (910 KV)
