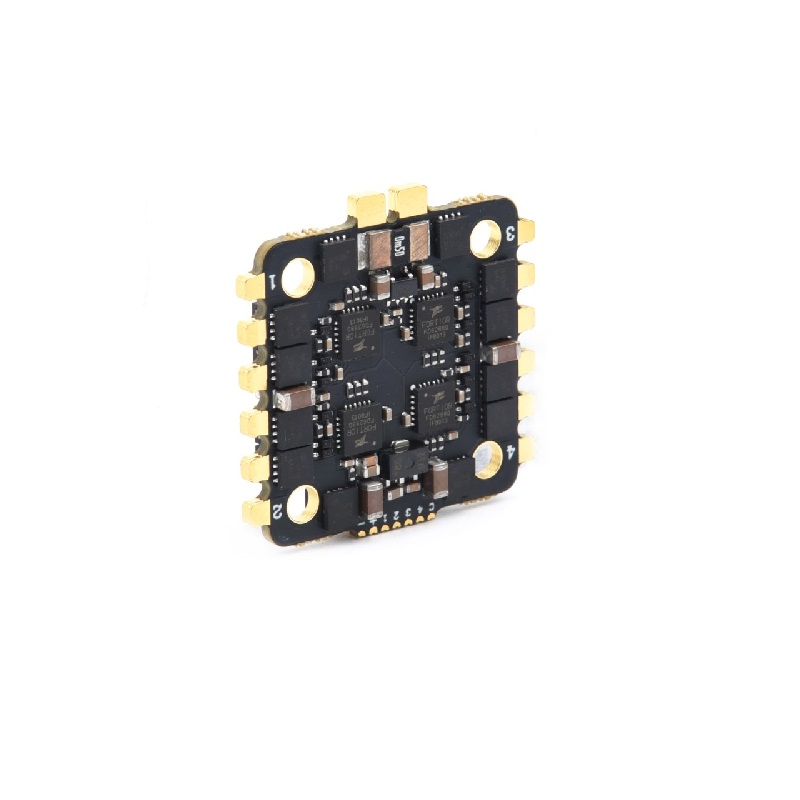

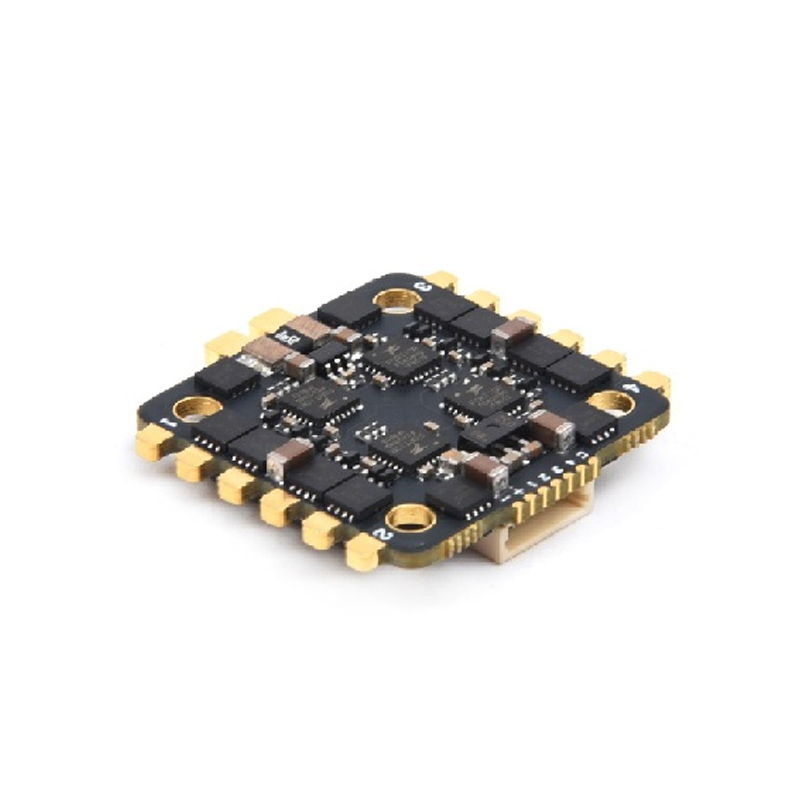

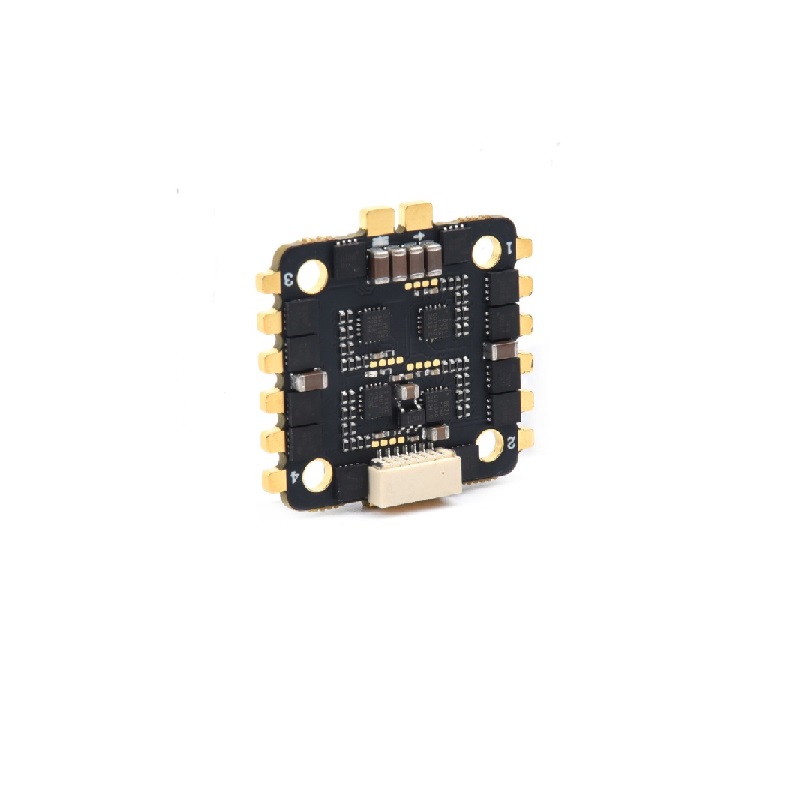

35A 2-5S BLHeli_S 4-in-1 ESC
This Generic 35A 2-5S BLHeli_S 4-in-1 ESC integrates four electronic speed controllers into a compact module, supporting 2S to 5S LiPo input for FPV racing and freestyle drones. It provides robust 35A continuous current per channel, ensuring stable power delivery and high-speed responsiveness for demanding flight maneuvers.
Features
- Integrated 35A continuous current 4-in-1 ESC for powerful performance.
- Supports a wide input voltage range from 2S to 5S LiPo (7.4V to 21V).
- Runs BLHeli_S firmware, enabling advanced DSHOT, OneShot, and MultiShot protocols.
- Ultra-compact 20x20mm mounting footprint reduces build complexity and weight.
- Features synchronous rectification for enhanced efficiency and cooler operation.
Out of stock
This 35A 4-in-1 ESC bundle integrates four BLHeli_S speed controllers into one compact module, providing a streamlined power solution for FPV quadcopters. Designed for demanding applications, each channel is rated for a continuous 35A, with burst capacity to handle sudden current peaks during aggressive flight, ensuring consistent and reliable motor control across the entire 2S to 5S LiPo voltage range (7.4V to 21V).
Running on advanced BLHeli_S firmware, this ESC supports high-speed digital protocols such as DSHOT150, DSHOT300, and DSHOT600, alongside traditional OneShot and MultiShot, for precise and responsive motor synchronization. The unified 4-in-1 design significantly reduces wiring complexity and overall weight, making it an ideal choice for compact racing builds or freestyle drones where space and weight optimization are critical. Built-in protections like overheat, low-voltage cutoff, and signal-loss safety enhance reliability, complemented by telemetry feedback capabilities for comprehensive flight controller integration.
Additional Information
| Dimensions | 11 × 7 × 1 cm |
|---|
