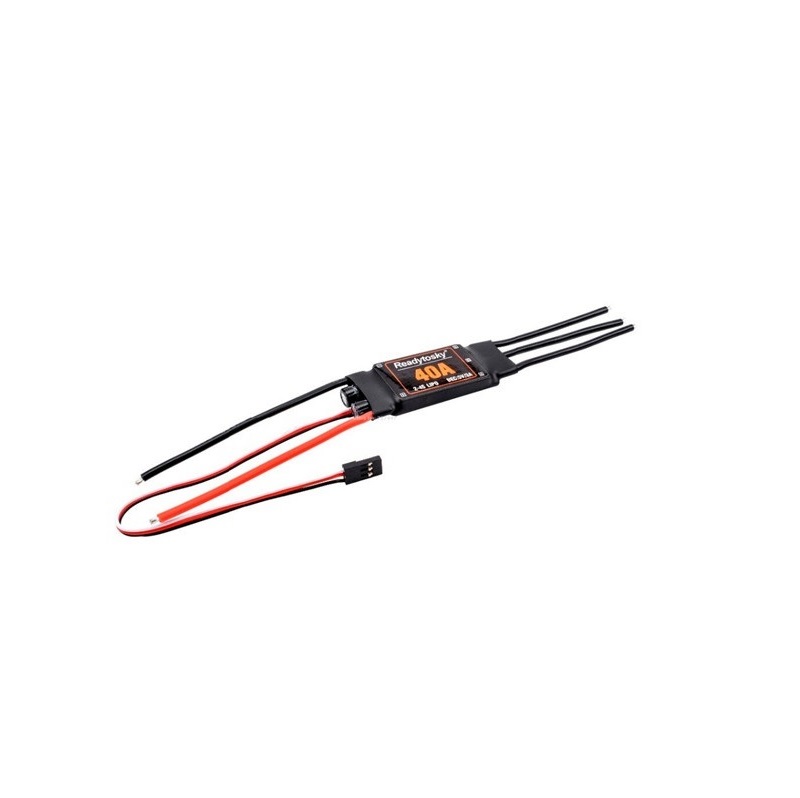

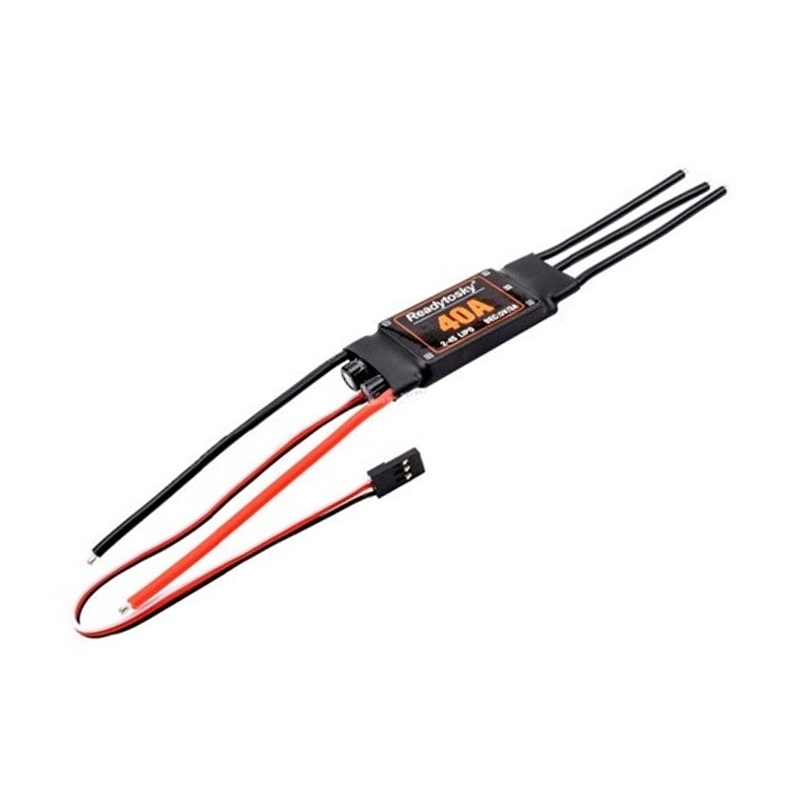

ReadyToSky 40A 2-4S Brushless ESC
This ReadyToSky 40A 2-4S Brushless ESC is designed for quadcopters and multi-rotors, providing enhanced motor speed control for improved flight performance. It features a 5V/3A BEC, making it suitable for a range of 2-4S LiPo powered UAV applications.
Features
- Robust 40A continuous, 60A burst current handling for demanding flight.
- Wide 2-4S LiPo battery compatibility with integrated 5V/3A BEC.
- Optimized firmware ensures rapid throttle response and precise motor control.
- Supports high throttle signal refresh rates up to 621Hz for low-latency control.
- Utilizes ultra-low resistance MOSFETs for superior efficiency and reliability.
Out of stock
The ReadyToSky 40A 2-4S ESC is purpose-built for quadcopters and multi-rotors, engineered to deliver superior motor speed control and responsiveness compared to many other available ESCs. It incorporates a specialized program, optimized for disc motors, ensuring very good compatibility across various multi-rotor platforms. This tailored firmware provides rapid throttle response, crucial for dynamic flight maneuvers.
Designed for stability, the ESC features a twisted throttle signal line to effectively reduce crosstalk interference during signal transmission, contributing to more stable flight characteristics. It supports an impressive throttle signal refresh rate of up to 621Hz, making it compatible with a wide array of flight controllers and enabling low-latency control. The integration of ultra-low resistance MOSFETs along with a dedicated MOSFET driver IC significantly enhances its current handling capacity, performance, and overall stability, surpassing designs reliant on discrete components.
