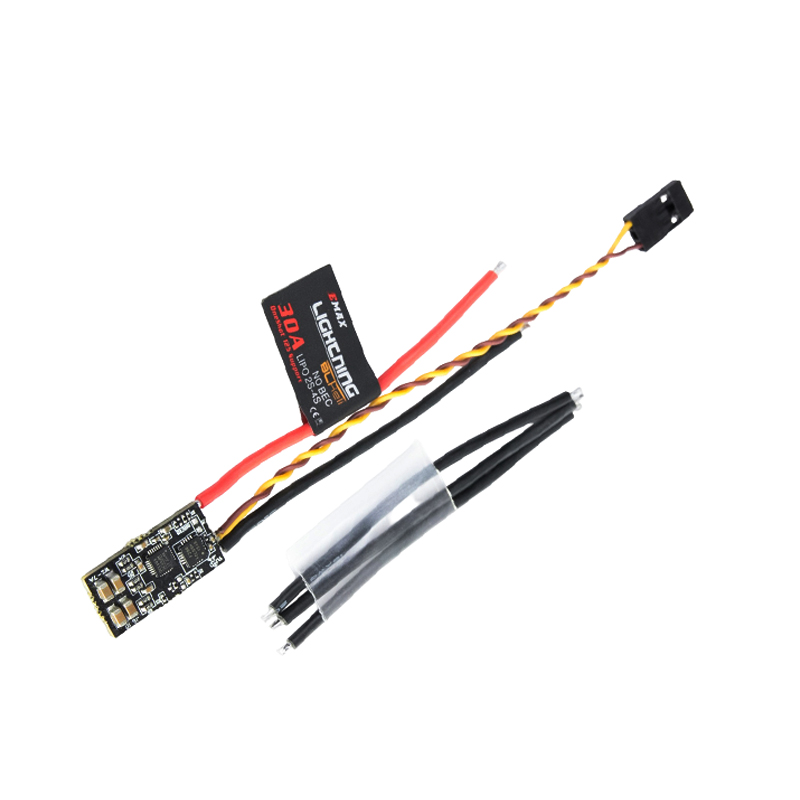

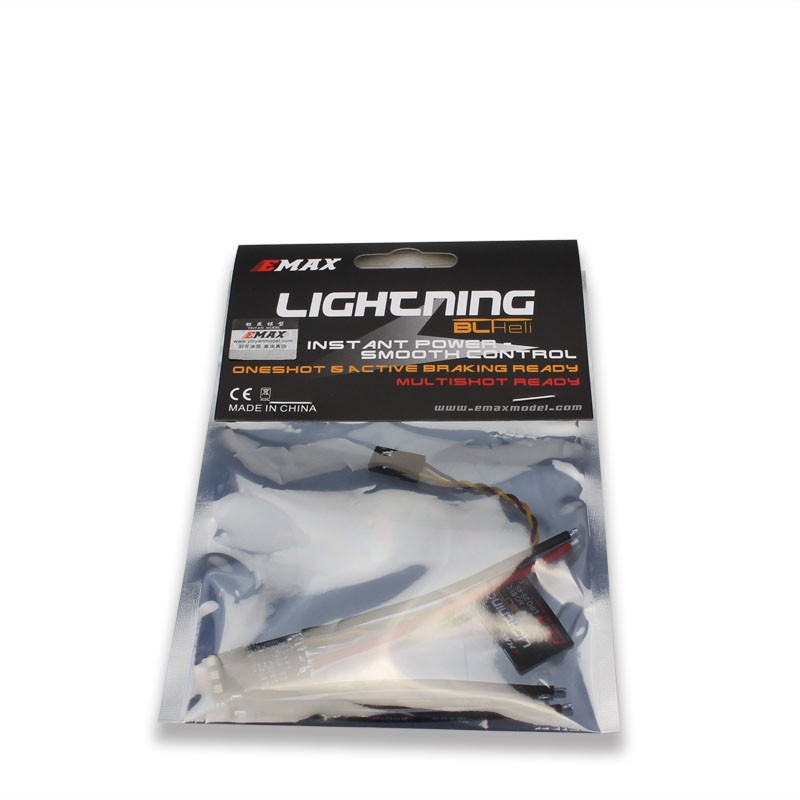

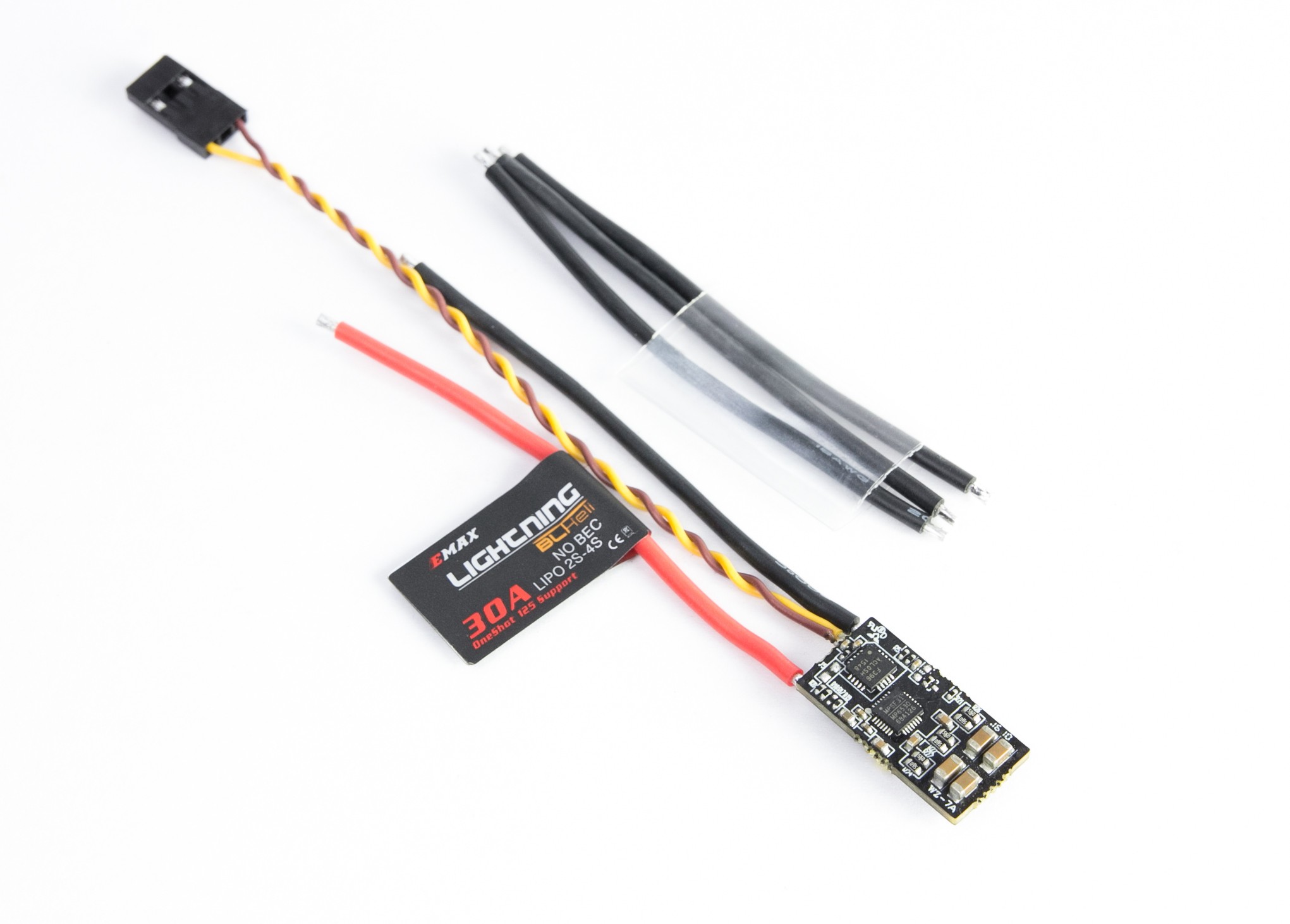

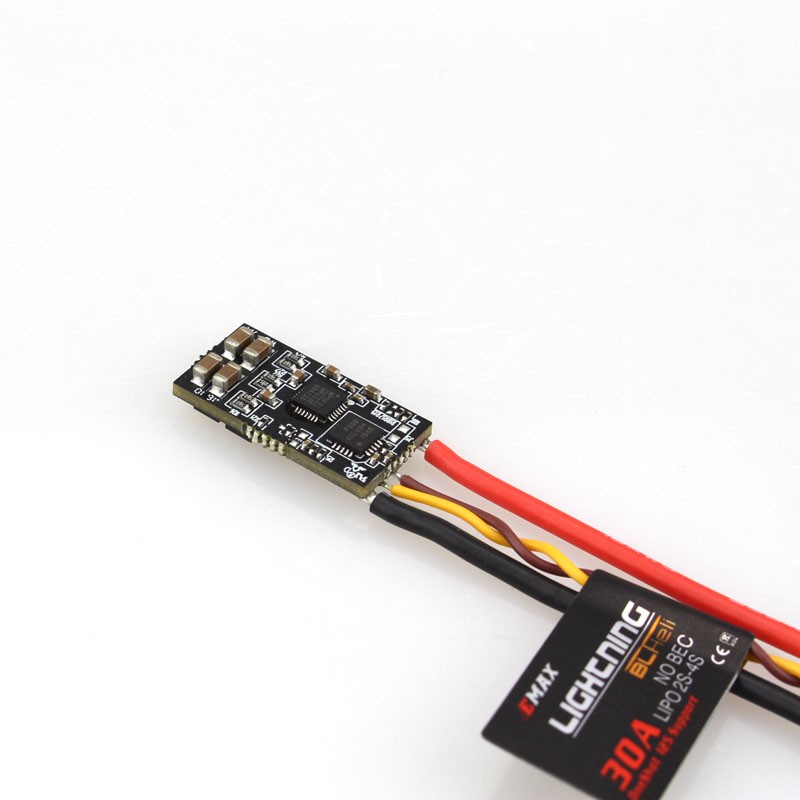

EMAX Lightning 30A Brushless ESC 2-4S
The EMAX Lightning 30A Brushless ESC delivers robust and precise power management for 2-4S LiPo drone setups. Featuring a high-performance F396 MCU and BLHeli_S firmware with synchronous rectification, it ensures ultra-fast and smooth throttle response critical for competitive FPV racing and freestyle.
Features
- Integrated F396 MCU for rapid processing and precise motor control.
- Supports 2-4S LiPo batteries, including High Voltage (HV) cells up to 4.35V.
- 30A continuous current with 40A burst, ideal for demanding FPV applications.
- BLHeli_S firmware with Synchronous Rectification for maximum efficiency and smooth throttle.
- Active braking capability for quicker motor stops and enhanced flight maneuverability.
Out of stock
The EMAX Lightning 30A Brushless ESC is engineered for peak performance in FPV drone applications, providing a lightweight yet powerful solution for speed control. It stands out as one of the first BLHeli ESCs to incorporate synchronous rectification hardware, significantly boosting efficiency and reducing heat generation during flight. At its core, this ESC utilizes a high-performance F396 MCU, enabling rapid signal processing and precise motor commands.
Pilots benefit from features such as active braking, which allows for instant motor deceleration and sharper maneuvers, and firmware upgradability via a single signal wire, ensuring quick updates and configurability. The BLHeli_S firmware, leveraging hardware-generated motor PWM, delivers an exceptionally smooth and linear throttle response, translating into superior control and a more stable flight experience, especially during aggressive freestyle or racing.
Additional Information
| Dimensions | 2.45 × 1.25 × 0.5 cm |
|---|
