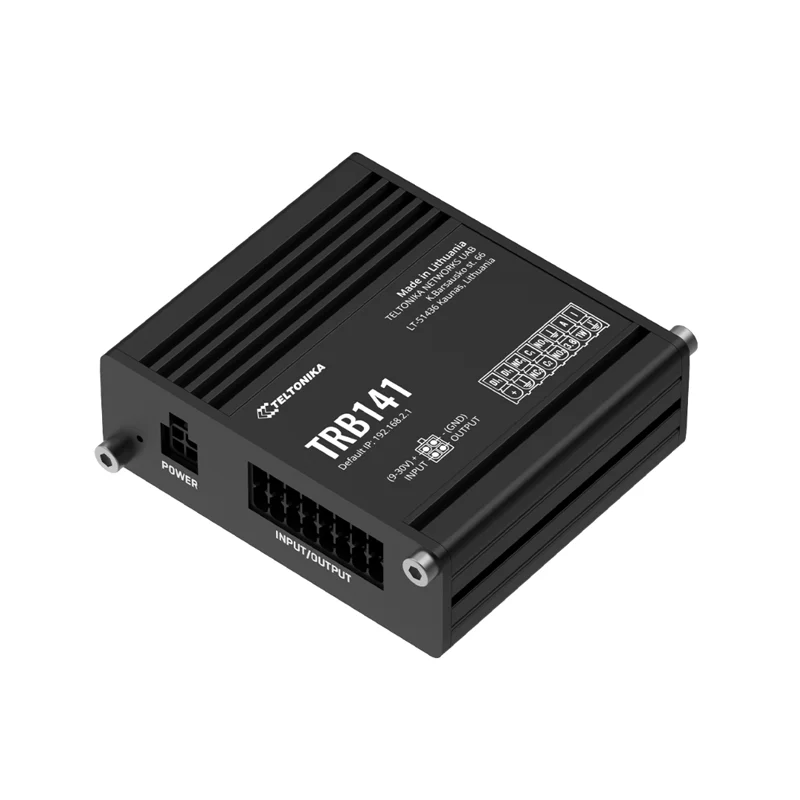

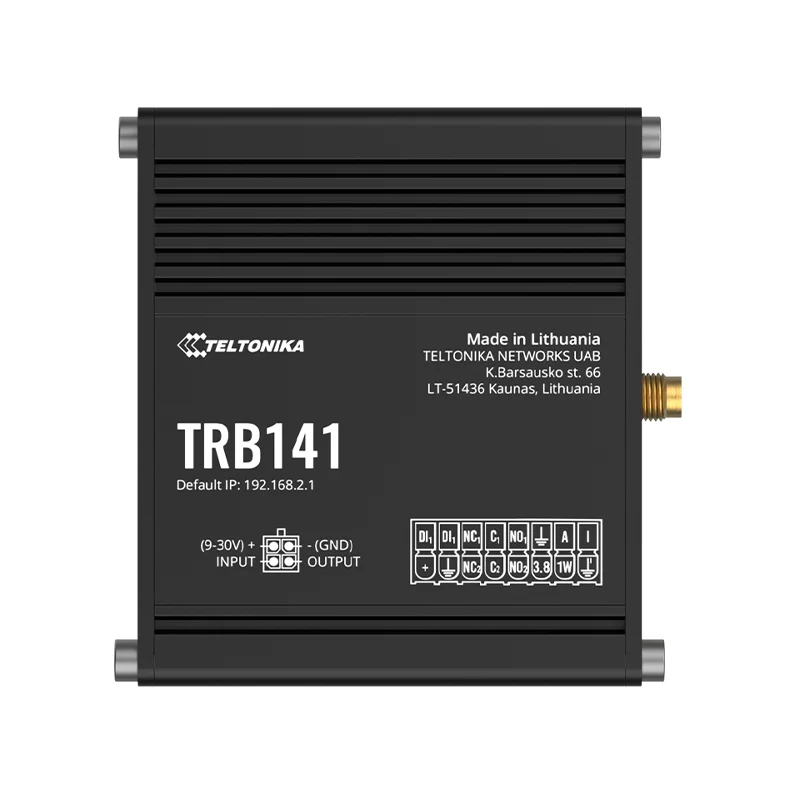

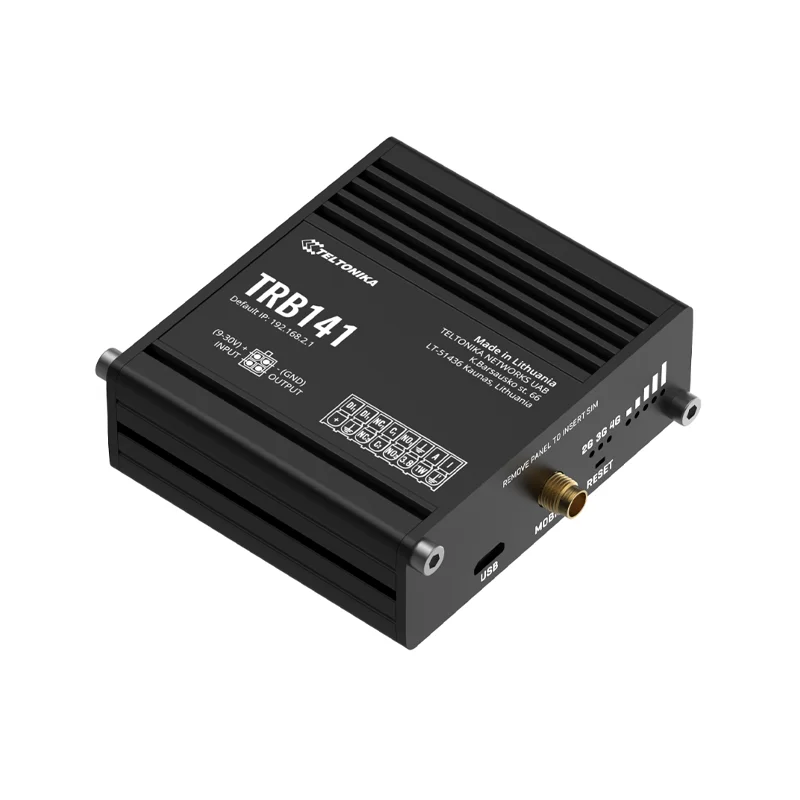

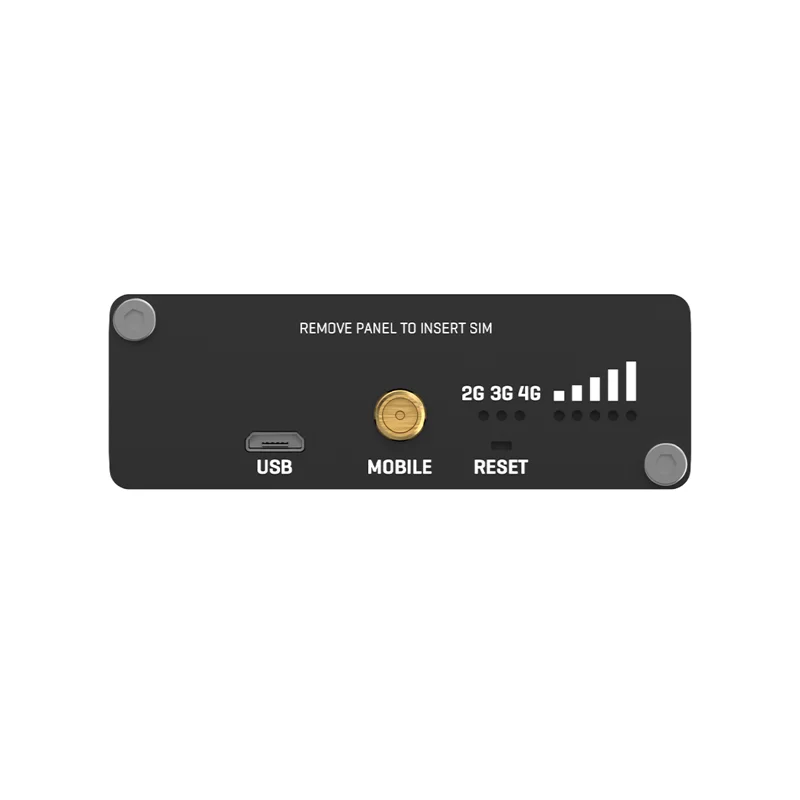

Teltonika TRB141 Industrial LTE Cat-1 Gateway

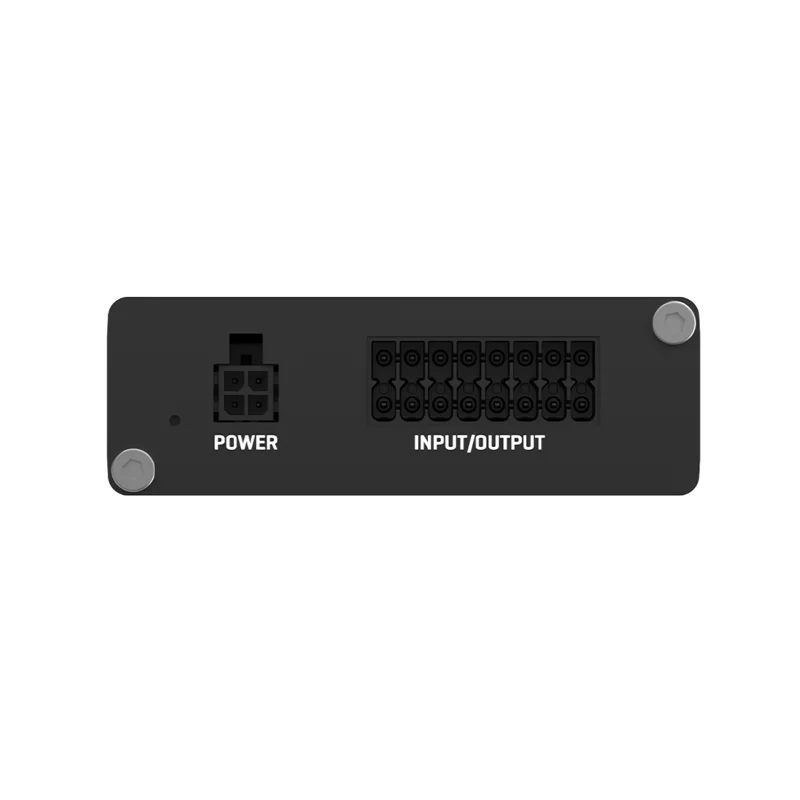

Connect your 4-20 mA sensor to the dedicated analog input terminals on the gateway's 8-pin connector. Access the TRB141's web interface via its LAN IP address. Navigate to the 'I/O' configuration section under RutOS. Select the analog input channel, set the measurement type to 'Current (4-20 mA)', and configure scaling if needed. You can then set up data logging, create triggers, or forward the sensor data via MQTT, SMS, or to the Teltonika RMS cloud platform for remote monitoring.

The RutOS firmware on the Teltonika TRB141 supports multiple secure VPN protocols for encrypted site-to-site and remote access tunnels. These include OpenVPN (both client and server modes), IPsec with IKEv1/IKEv2, and WireGuard. Configuration is managed through the intuitive web interface. You can establish VPN connections to corporate networks, cloud services like AWS VPC, or between multiple TRB gateways to create a secure, private network for your distributed IoT devices and data streams.

Yes, the TRB141 is well-suited for off-grid and renewable energy applications. Its wide 9–30 V DC input range allows direct connection to 12V battery banks, typical in solar setups. With its low power consumption, it can run efficiently on such systems. For deployment, ensure your power source can provide the required current. You can also configure the device's sleep schedules or use the digital inputs to trigger power-saving modes via RutOS, further optimizing energy use in battery-dependent installations.

Centralized management is achieved through the Teltonika Remote Management System (RMS). First, ensure each TRB141 has an active SIM card and can reach the internet. Enable the RMS service in the device's web interface under the 'Services' section. Register your gateways on the RMS platform. Once connected, you can remotely view device status, cellular signal strength, data usage, configure firmware updates, manage I/O states, set up alerts, and access logs from a single dashboard, streamlining oversight of distributed assets.
