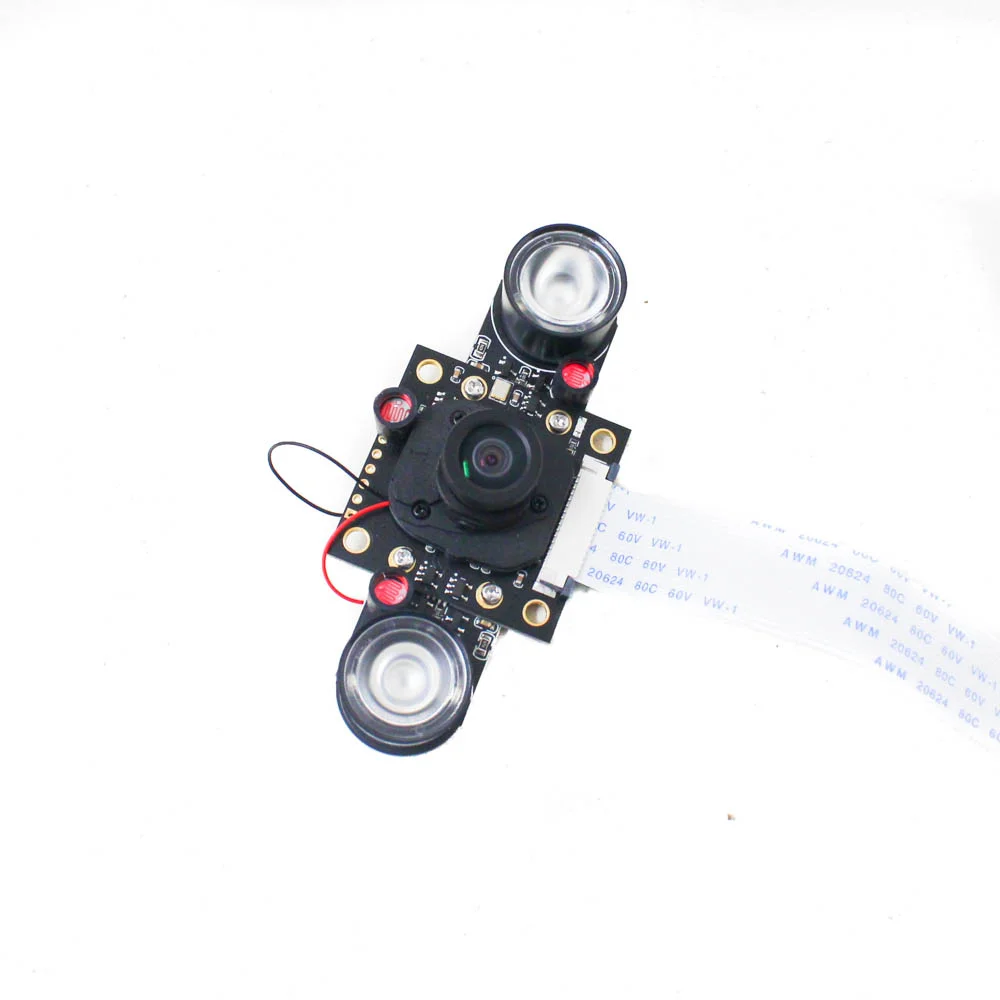

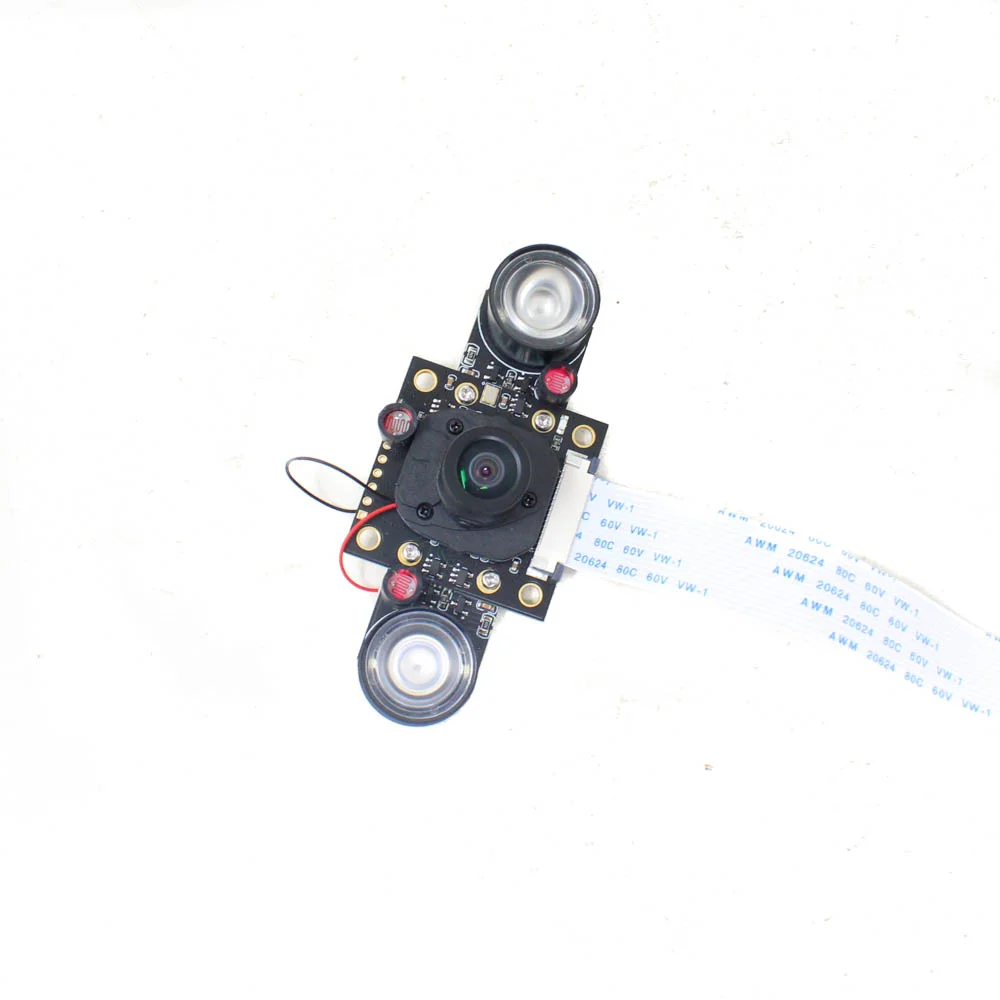

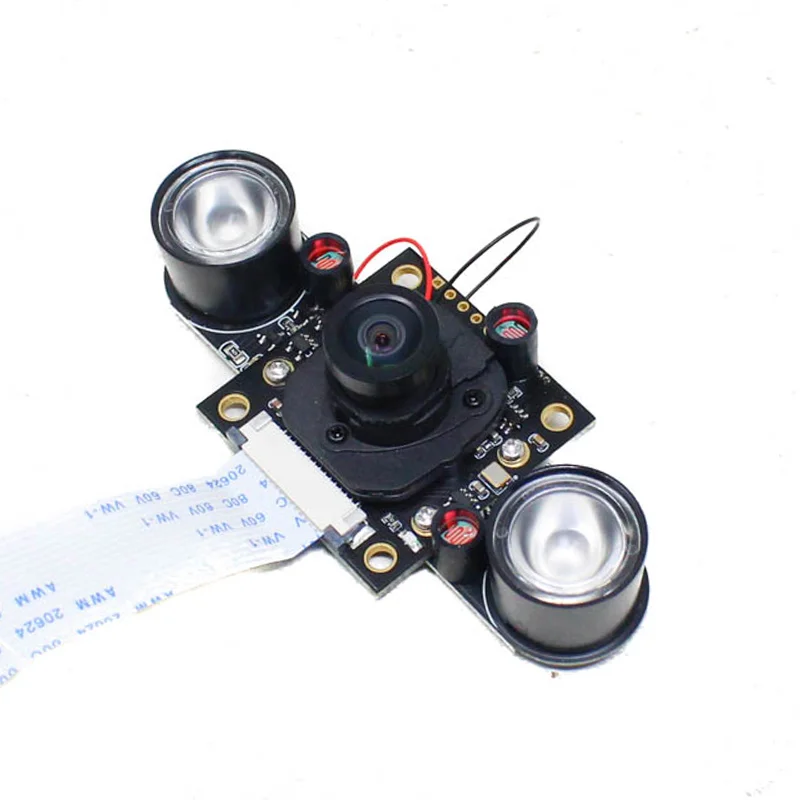

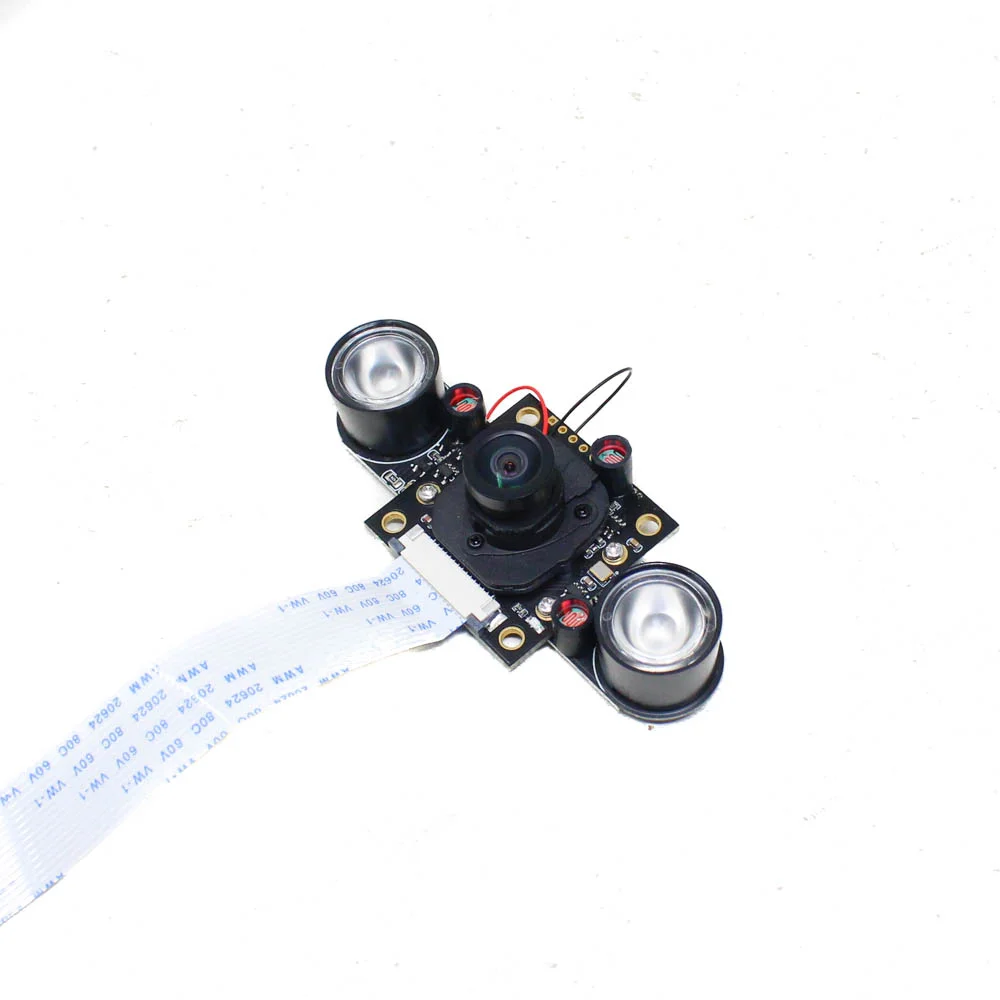

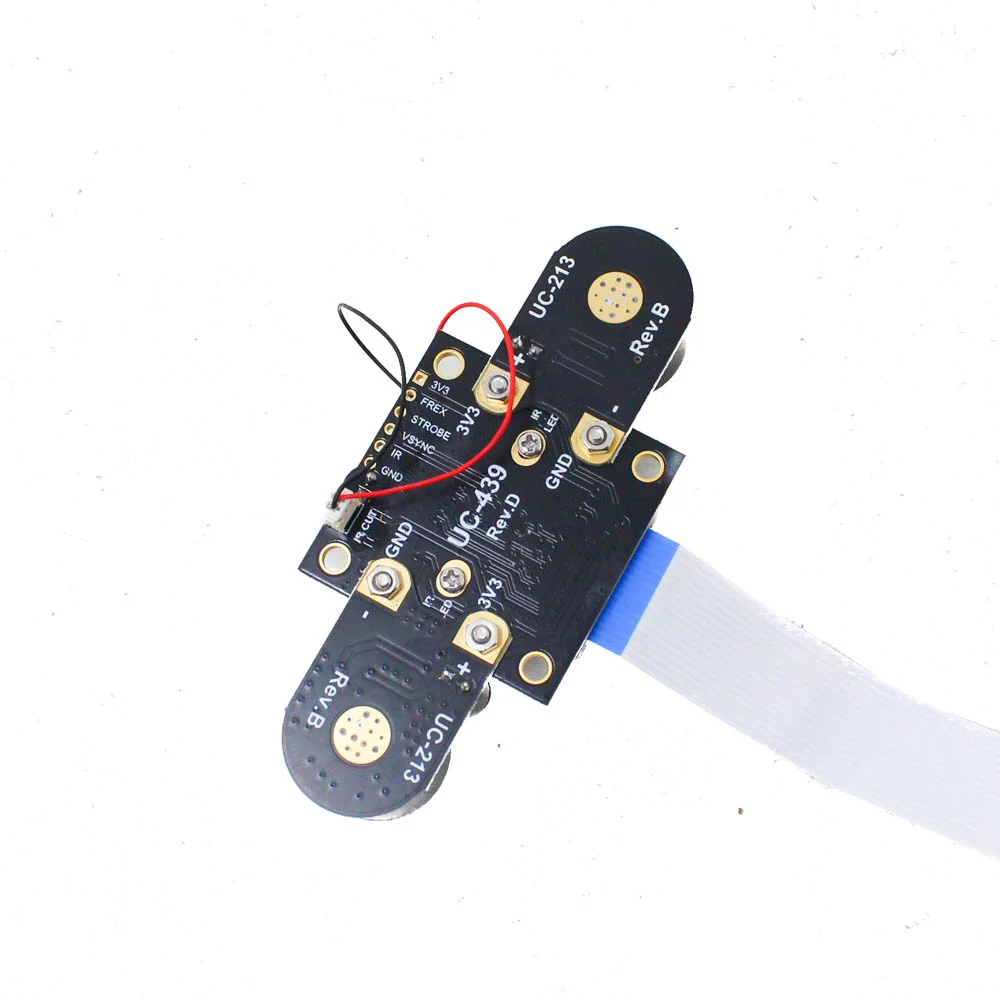

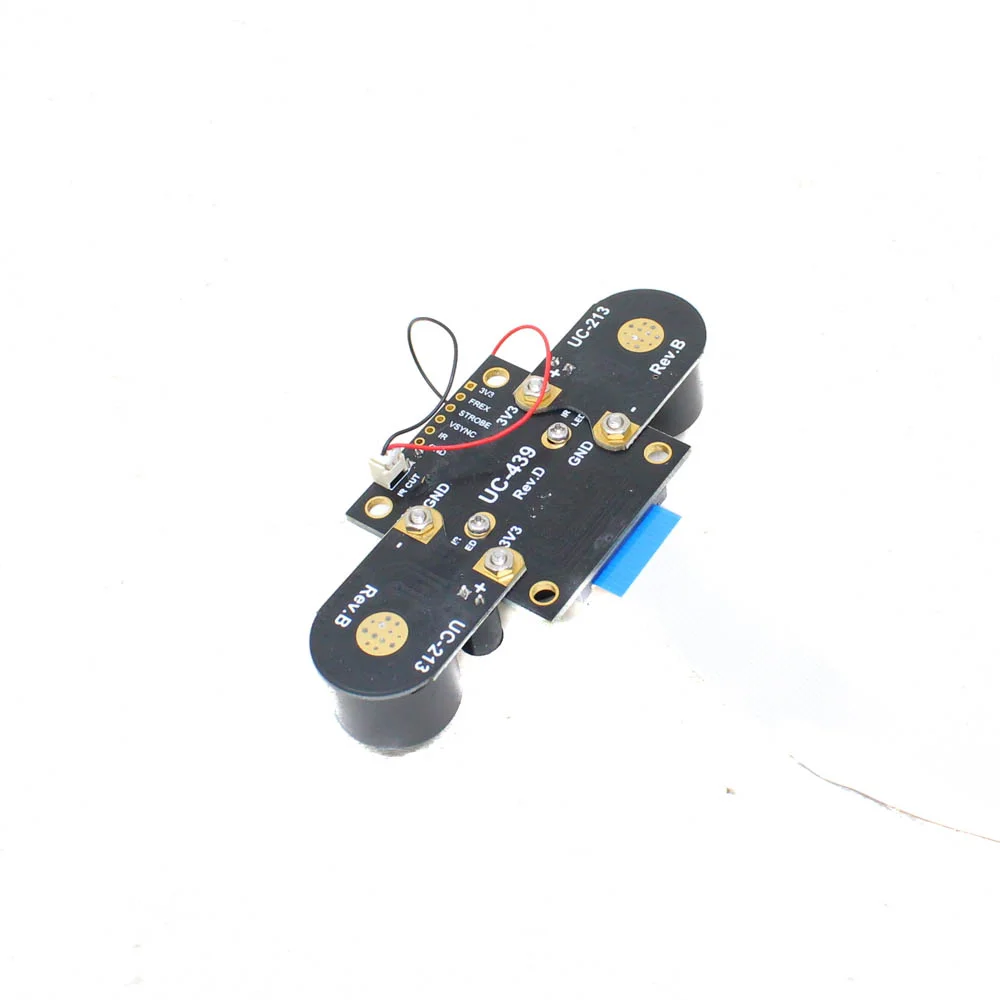

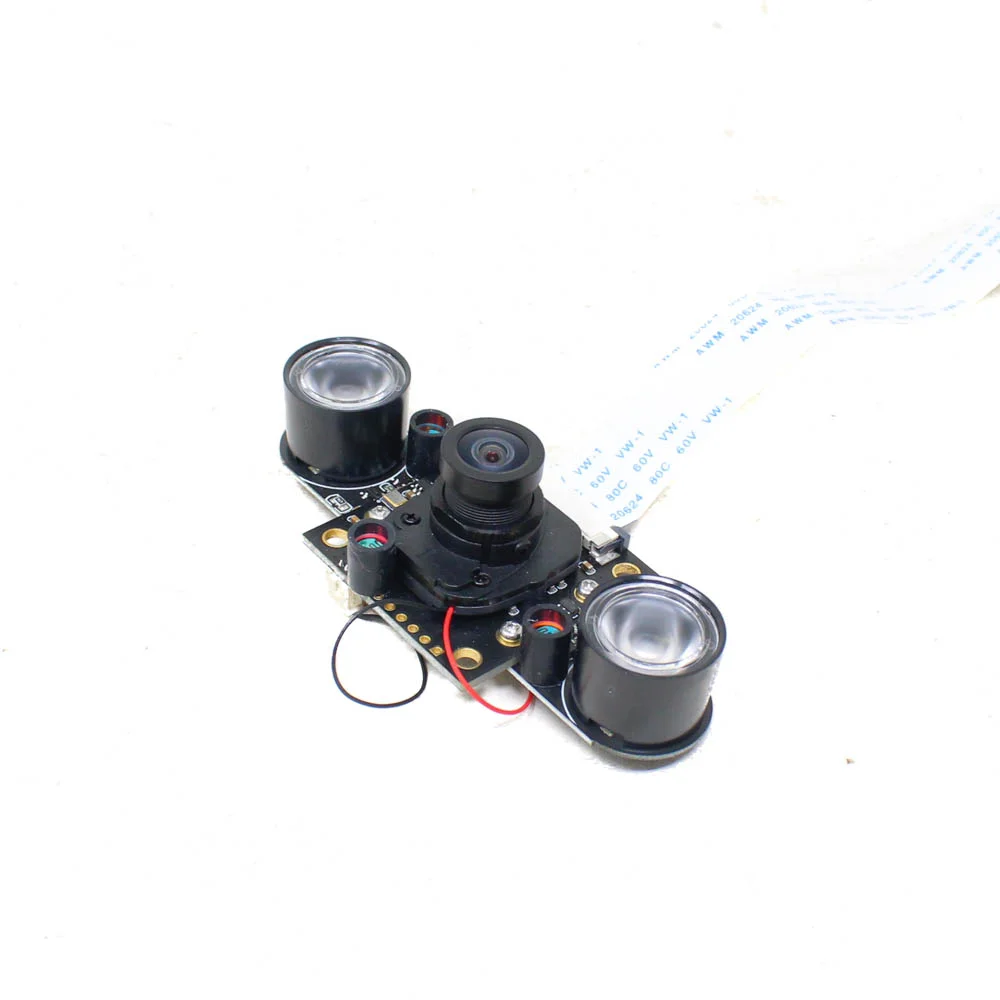

Arducam 5MP OV5647 NoIR Motorized IRcut Filter Camera w/ LS-30188 Lens
This 5MP OV5647 NoIR camera module for Raspberry Pi features a motorized IR-cut filter and dual IR LED illuminators for automated day/night vision switching, ideal for environmental monitoring and computer vision projects.
Features
- 5MP OV5647 Sensor: Delivers 2592 x 1944 resolution for detailed stills and video capture on Raspberry Pi 4, 3, and Zero.
- Motorized IR-Cut Filter: Automatically switches on for accurate daylight color and off for enhanced infrared night vision.
- Dual IR LED Illuminators: Paired with a light sensor to automatically activate in low-light conditions for clear night imaging.
- IR-Corrected LS-30188 Lens: M12 mount lens with low-dispersion glass minimizes focus shift and chromatic aberration across visible and IR spectra.

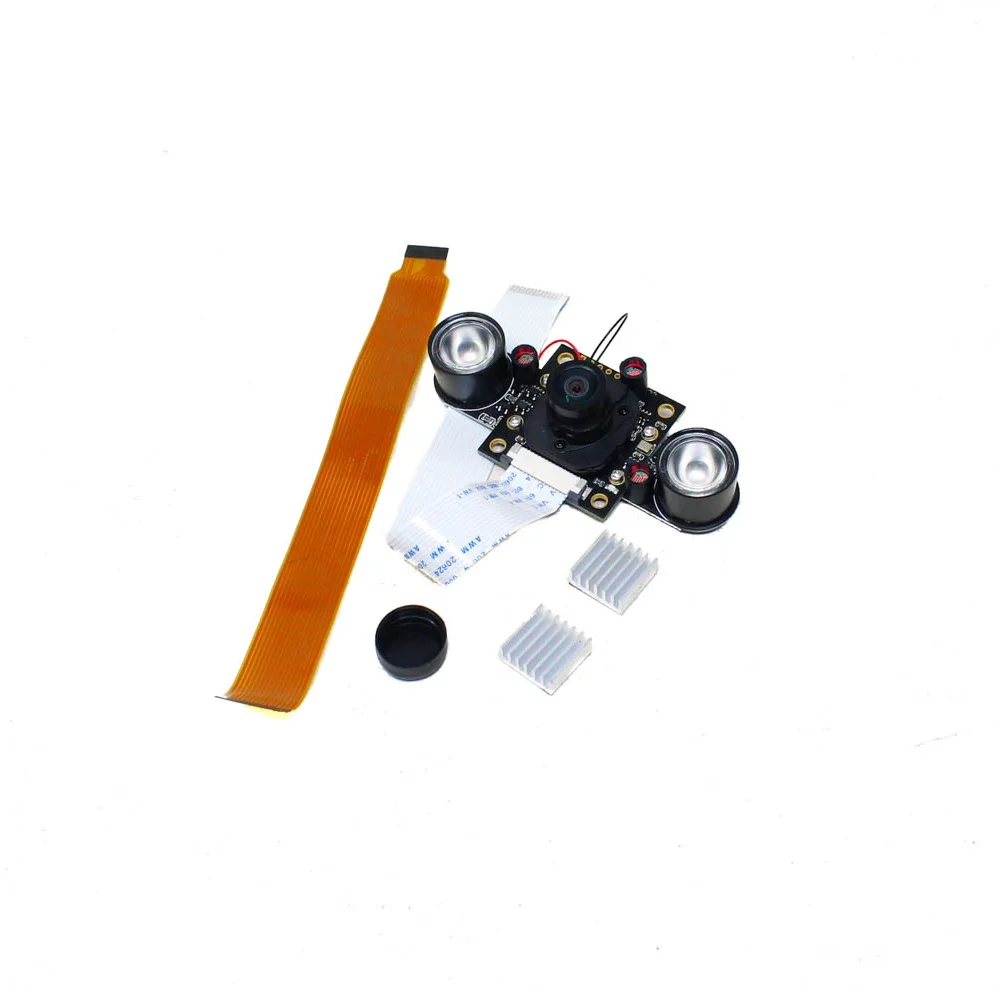

- Full Pi Compatibility: Includes two 150mm FFC cables for standard Raspberry Pi models and the Pi Zero form factor.
Out of stock
The Arducam 5MP OV5647 NoIR Camera Module is engineered for robust, round-the-clock vision applications on the Raspberry Pi platform. Its core innovation is a software-controllable, motorized IR-cut filter that mechanically slides into place for true-color daytime photography and retracts for high-sensitivity infrared imaging after dark. This is complemented by two broad-spectrum IR LED illuminator boards that activate based on ambient light levels, providing invisible illumination for covert surveillance or wildlife monitoring.
Built around a 5-megapixel OmniVision OV5647 sensor, the module outputs crisp 2592×1944 stills and supports full-motion video. The included LS-30188 lens features an IR-corrected optical design with an M12 mount, ensuring that visible and infrared wavelengths converge on the same focal plane to eliminate the focus shift common in standard lenses. The module operates from a 3.3V to 5V supply, matching the Raspberry Pi’s GPIO power rails, and comes with necessary cabling for immediate integration into Pi-based IoT vision systems, smart agriculture setups, or DIY security projects.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3.4 × 3.4 cm |
