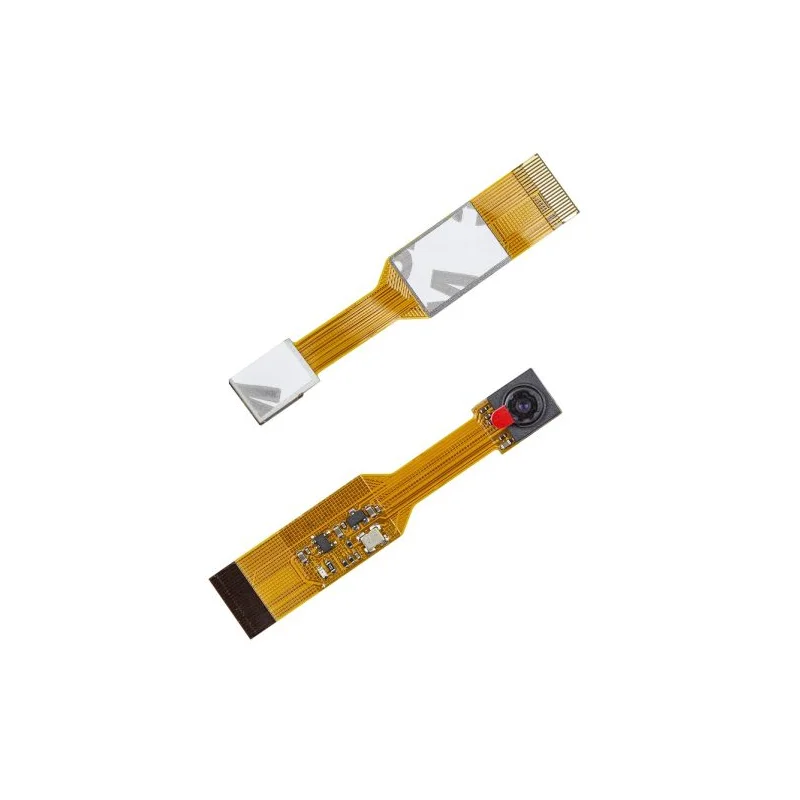

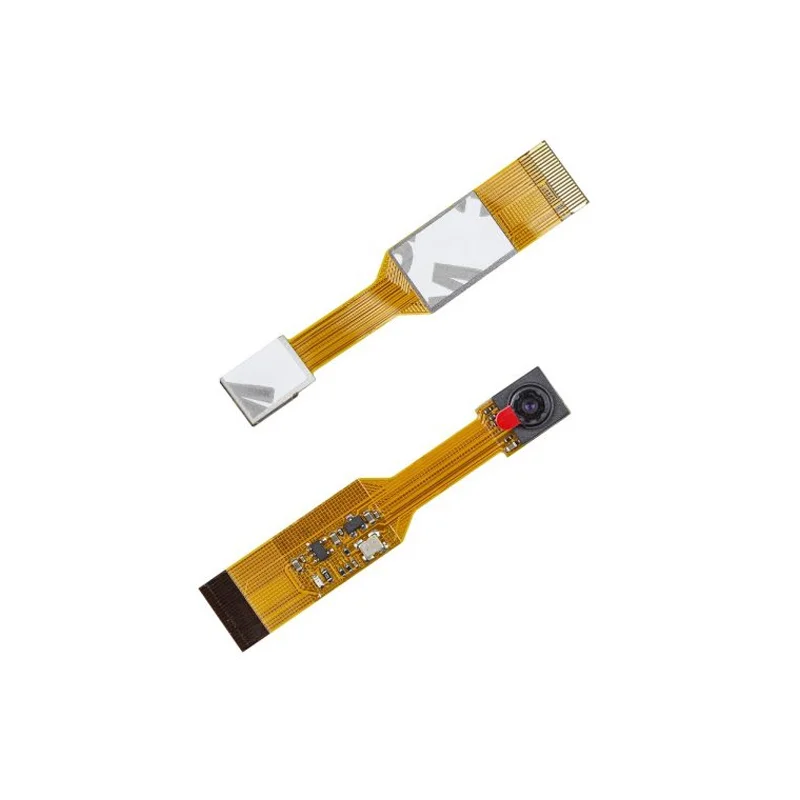

Arducam 5MP OV5647 NoIR MINI Camera Module w/ Flex Cable
The Arducam 5MP OV5647 NoIR MINI Camera Module is a compact, fixed-focus camera designed for Raspberry Pi Zero and Compute Module, connecting via a dedicated CSI interface and flex cable for high-bandwidth video and image capture.
Features
- 5MP OV5647 sensor delivers 2592 x 1944 still images and 1080p30 video.

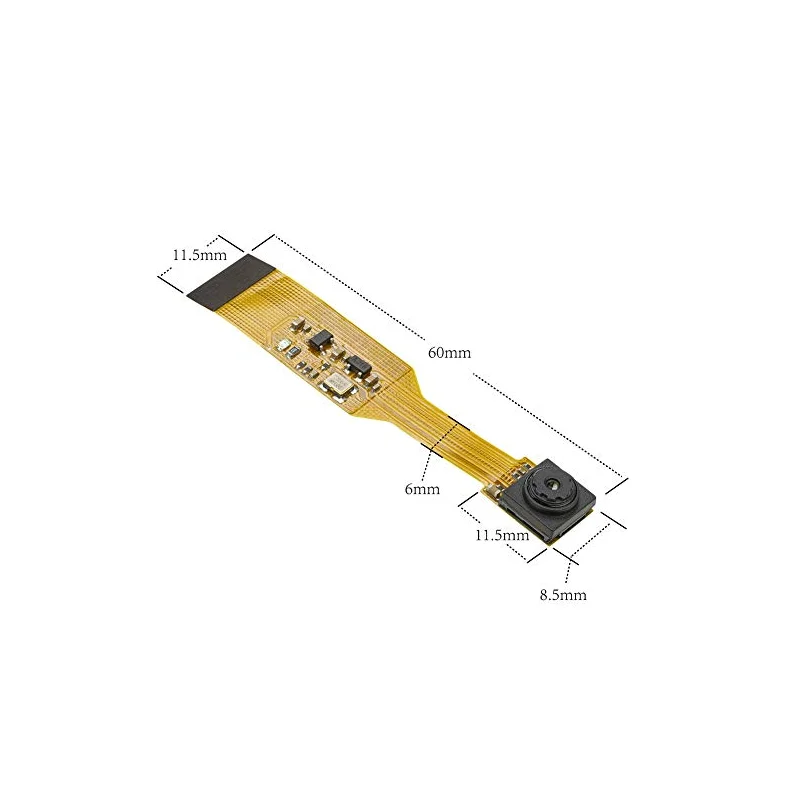

- Compact 60mm x 11.5mm x 5mm form factor with a 6mm-wide neck for tight spaces.

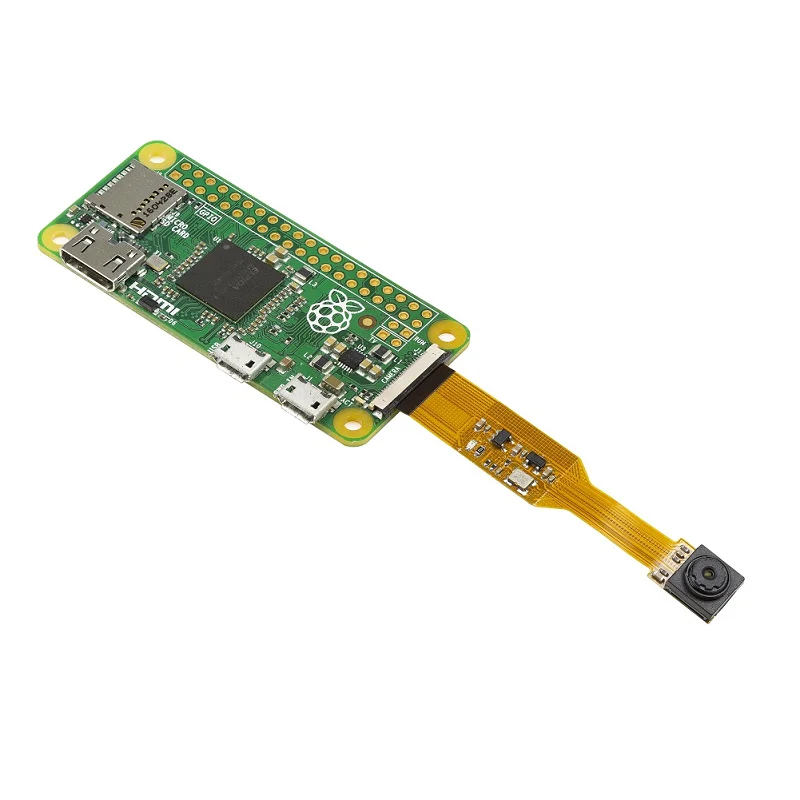

- Connects to Raspberry Pi Zero/Compute Module via CSI bus flex cable for high-speed data transfer.

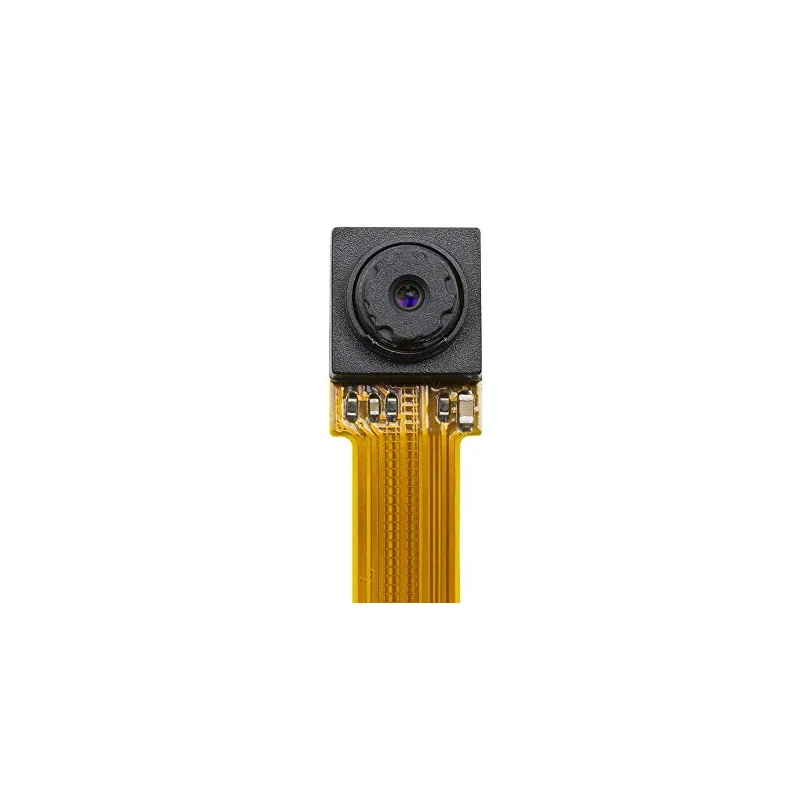

- Fixed-focus lens with a 72.4° diagonal field of view and 1m to infinity focus range.
- NoIR (No Infrared Filter) variant optimized for visible light imaging applications.
Out of stock
The Arducam 5MP OV5647 NoIR MINI Camera Module is engineered for space-constrained Raspberry Pi Zero and Compute Module projects requiring reliable image capture. Its 1/4-inch OV5647 sensor interfaces directly with the BCM2835 processor via the dedicated Camera Serial Interface (CSI) bus, ensuring minimal latency and high-bandwidth data transfer for pixel data over the included flex ribbon cable.
This module features a fixed-focus lens system with a wide 72.4° diagonal field of view, making it suitable for general-purpose imaging where manual focus adjustment is not required. The NoIR (No Infrared Filter) design allows the sensor to capture visible light spectra, which can be advantageous in specific machine vision or surveillance contexts. The board’s slim profile and narrow 6mm neck facilitate integration into endoscopic tools, compact surveillance systems, and other embedded vision applications.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 1.2 × 0.5 cm |
