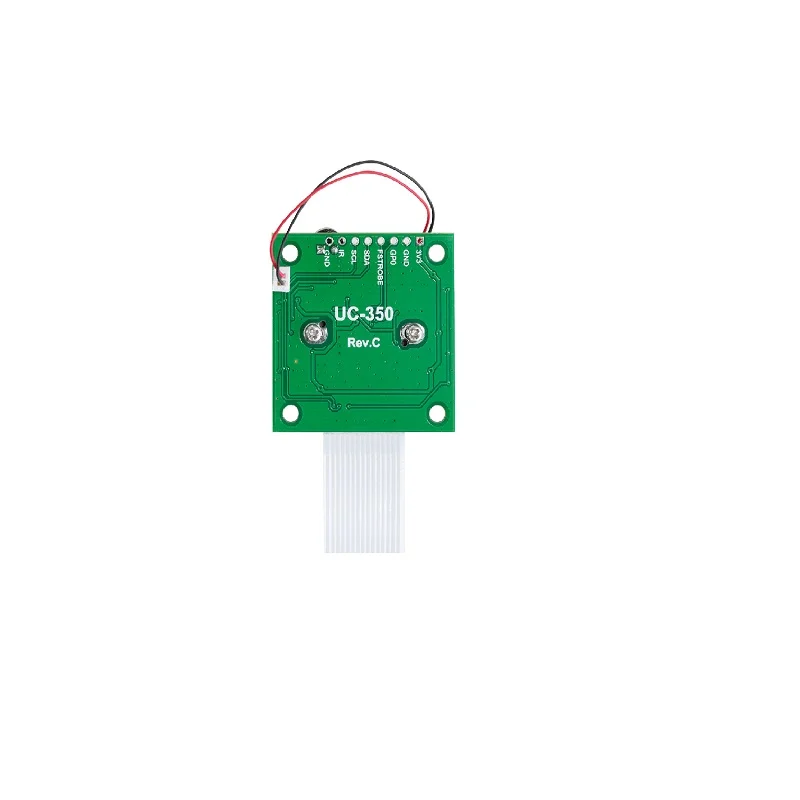

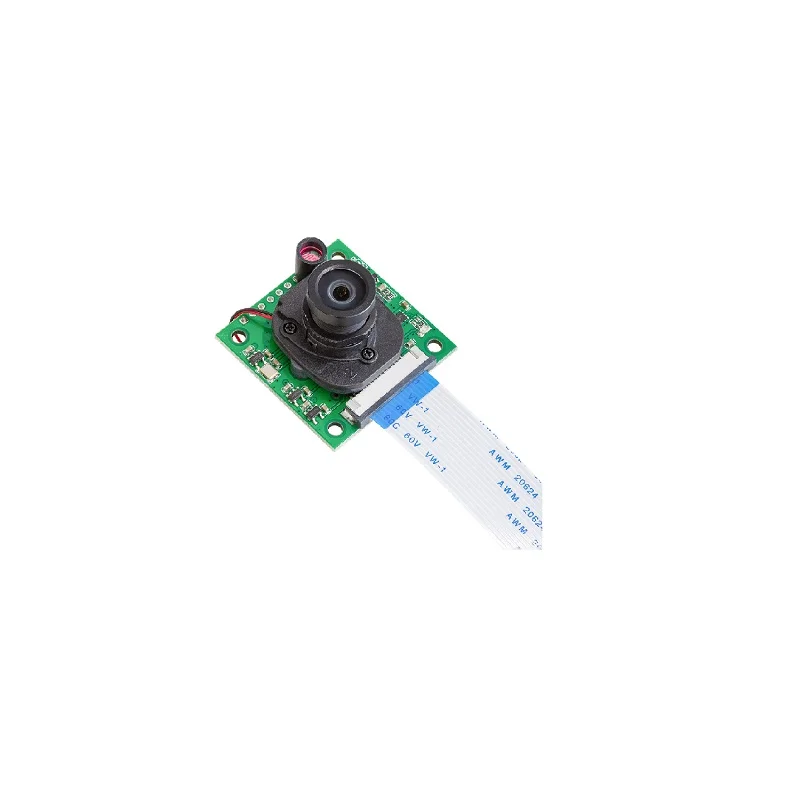

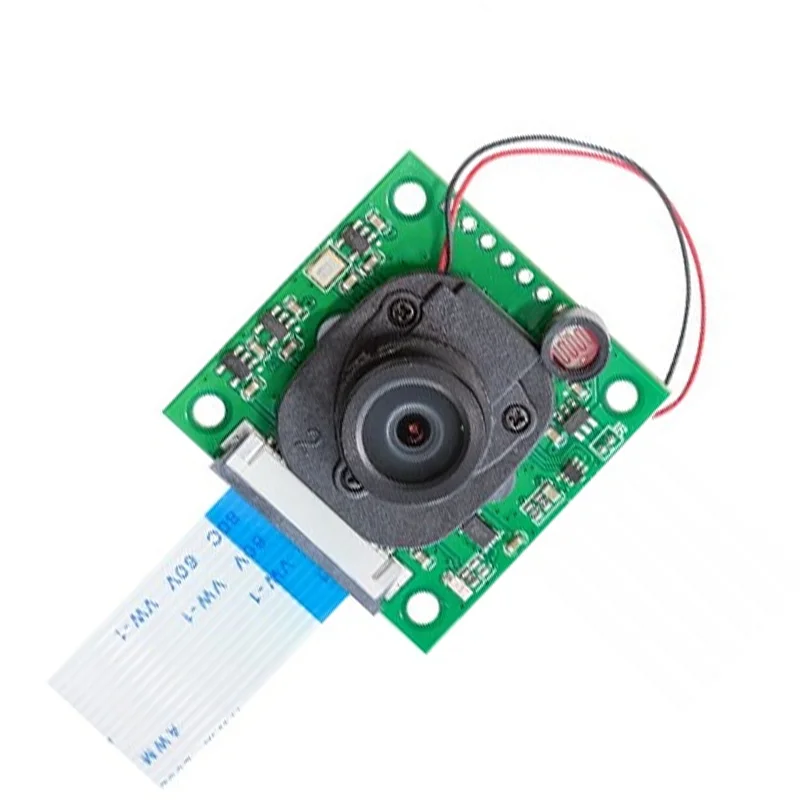

Arducam NOIR 8MP Sony IMX219 Camera Module w/ Motorized IR Cut Filter & M12 Lens
This Arducam NOIR 8MP camera module integrates a Sony IMX219 CMOS sensor with a motorized IR cut filter and M12 lens mount, providing high-quality visible and night vision imaging for Raspberry Pi 4, 3B+, and 3 models via the standard CSI interface.
Features
- 8MP Sony IMX219 Sensor: Delivers high-resolution 3280 x 2464 still images and supports 1080p30, 720p60 video for detailed computer vision projects.
- Motorized IR Cut Filter: Automatically switches between daylight color imaging and high-sensitivity night vision (NOIR) modes for 24/7 surveillance.
- M12 Lens Mount: Supports a wide range of interchangeable lenses (telephoto to fisheye) with a default 100° horizontal FOV for flexible field-of-view customization.
- Raspberry Pi CSI Interface: Plug-and-play compatibility with Raspberry Pi 4, 3B+, and 3 via the dedicated camera serial interface for easy integration.
- High Sensitivity & Low Noise: Features low dark current and an on-chip optical black clamp circuit for clean, detailed images in varying light conditions.
Out of stock
The Arducam NOIR 8MP camera module is engineered for developers and makers requiring robust, dual-mode vision capabilities on the Raspberry Pi platform. At its core is the Sony IMX219 8-megapixel color CMOS sensor, which provides high-resolution still imaging and smooth video capture up to 1080p at 30 fps. The integrated motorized IR cut filter is the key differentiator, enabling automatic switching between standard color reproduction during the day and high-sensitivity infrared imaging for night vision applications, all controlled via software.
Housed with a standard M12 lens mount, the module offers exceptional flexibility. The included LS1820 lens provides a 100-degree horizontal field of view, but the system can be adapted with a vast selection of M12 lenses to achieve different focal lengths, depths of field, and perspectives—from wide-angle to telephoto. This makes it an ideal sensor for Raspberry Pi-based projects in security, machine vision, smart agriculture monitoring, and ambient light sensing where environmental conditions vary.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 4 × 4 × 4 cm |
