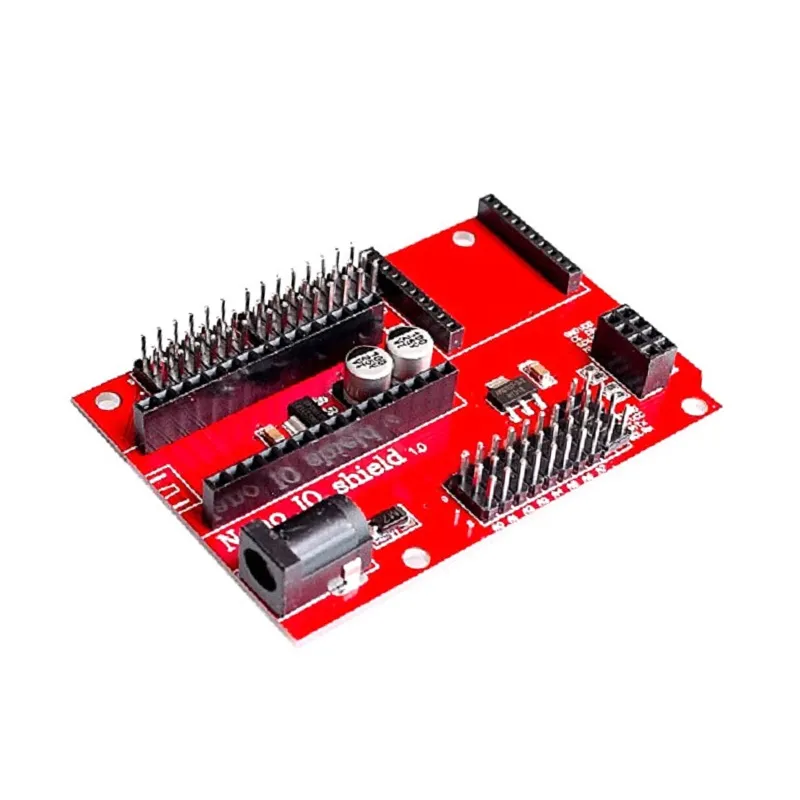

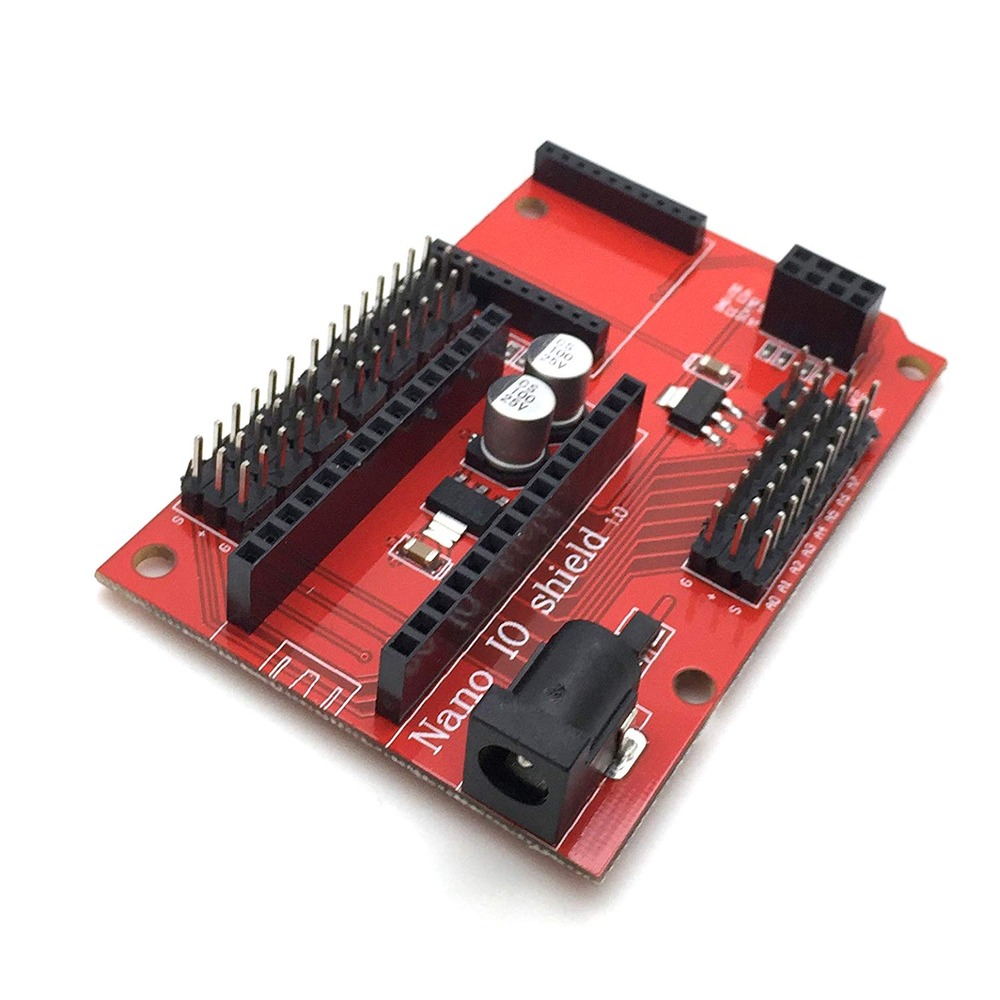

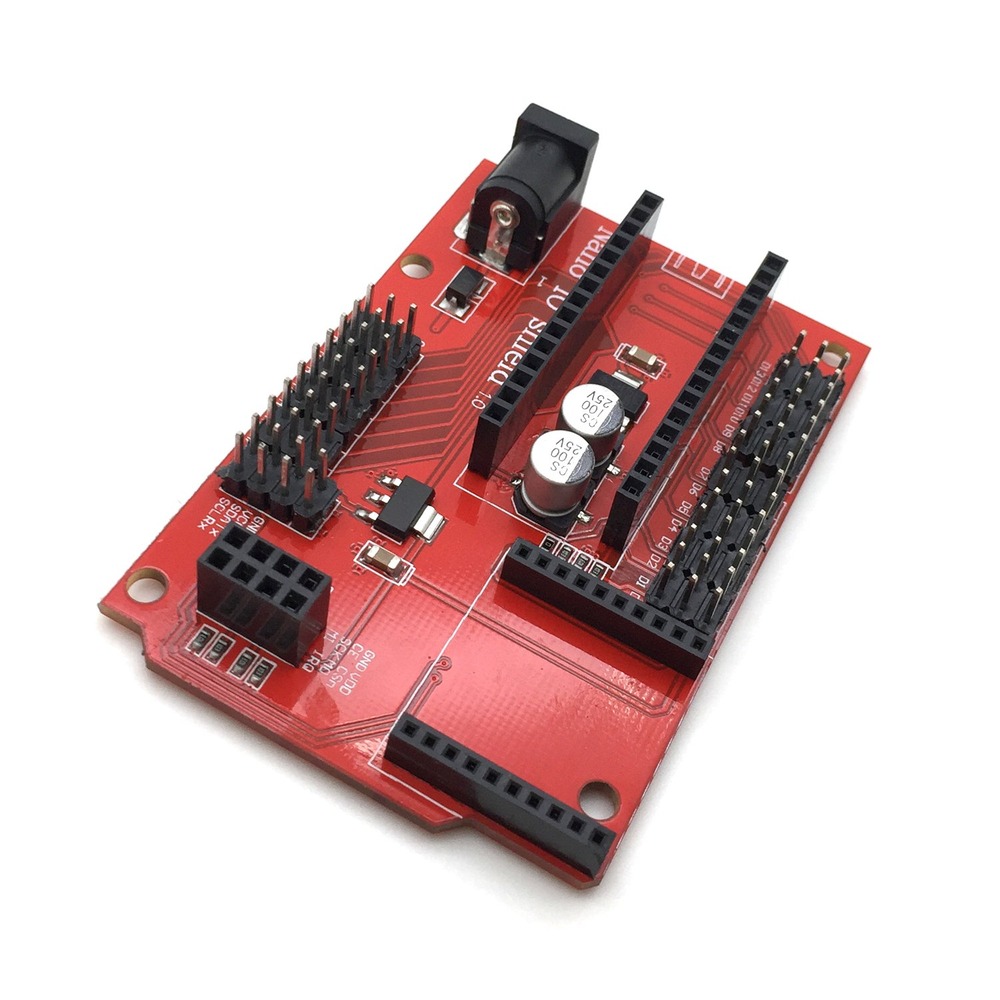

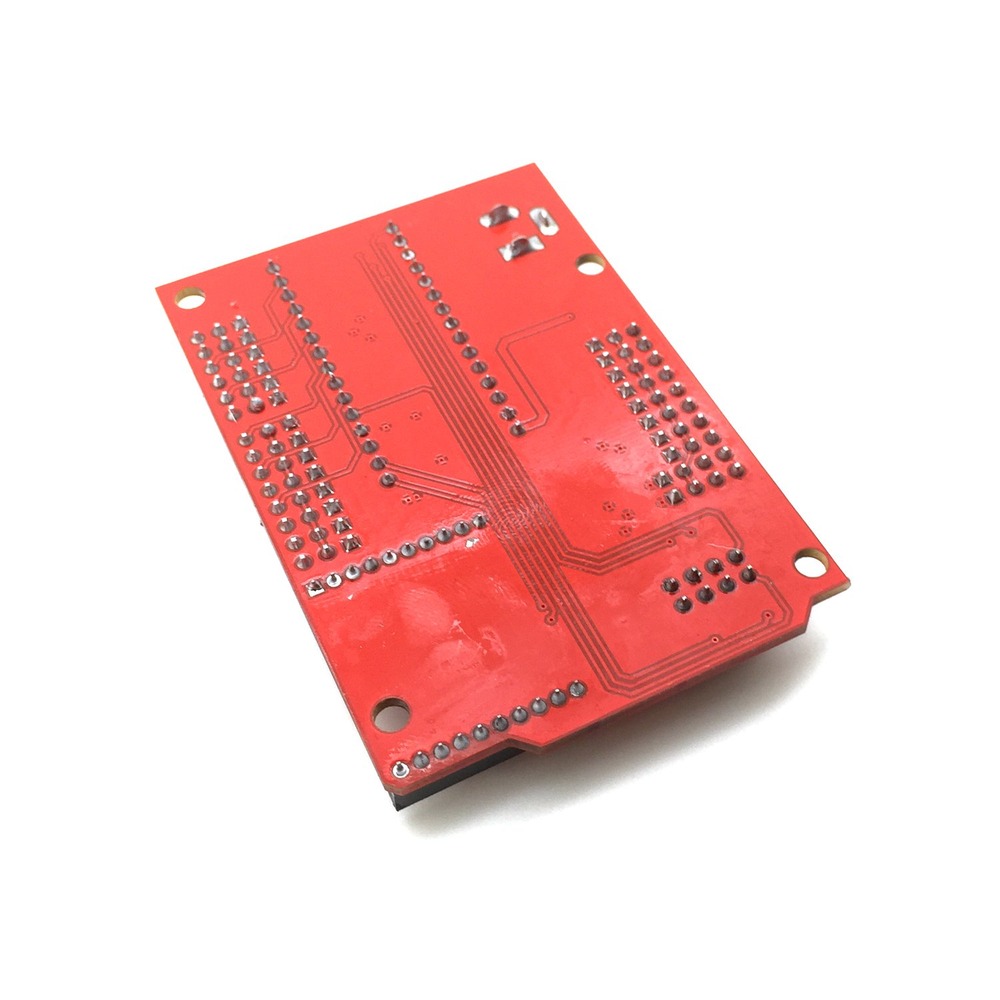

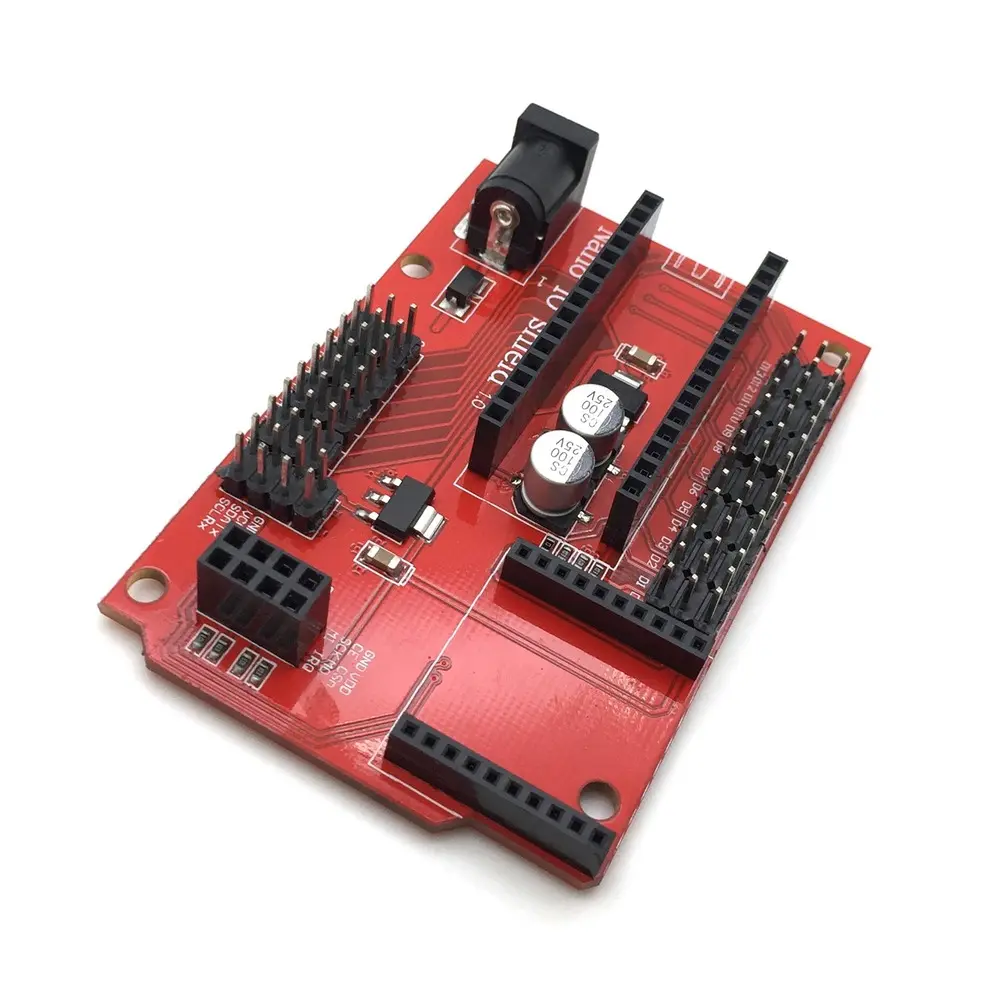

Arduino Nano IO Expansion Shield (328P Compatible)
The Nano IO Expansion Shield for Arduino Nano 328P extends the capabilities of your Nano board by breaking out all digital and analog pins to a convenient 3-pin electronic brick interface. It also integrates interfaces for XBee and nRF24L01+ wireless modules, and supports an external 7-12V power supply for enhanced current delivery.
Features
- Breaks out all digital and analog pins to 3-pin electronic brick interfaces.
- Features integrated sockets for XBee and nRF24L01+ wireless modules.
- Supports external 7-12V DC power input for stable operation.
- Compatible with Arduino Nano 328P boards for expanded I/O and connectivity.
- Provides dedicated power output (3.3V) for connected modules and sensors.
Out of stock
This Nano IO Expansion Shield is engineered to simplify prototyping and project development with the Arduino Nano 328P. It addresses the common challenge of limited I/O access on the compact Nano form factor by providing clearly labeled 3-pin headers for every digital and analog pin, enabling straightforward connection of sensors, actuators, and other modules using standard electronic brick cables.
Beyond basic I/O breakout, the shield significantly enhances the Nano’s communication capabilities by incorporating dedicated interfaces for popular wireless modules. Developers can easily integrate XBee for ZigBee-based mesh networking or an nRF24L01+ module for robust 2.4GHz wireless communication in their projects. An external power input supporting 7-12V allows for powering more demanding peripherals without straining the Nano’s onboard regulator, ensuring reliable performance in various applications.
Designed with practicality in mind, the shield maintains a compact footprint while offering comprehensive expansion. Its pin-compatible design ensures seamless integration with Arduino Nano 328P boards, making it an essential accessory for makers, students, and engineers looking to maximize the versatility of their Nano-based embedded systems.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 7.5 × 5 cm |
