CNC Shield V3 for Arduino UNO - A4988 DRV8825 Compatible

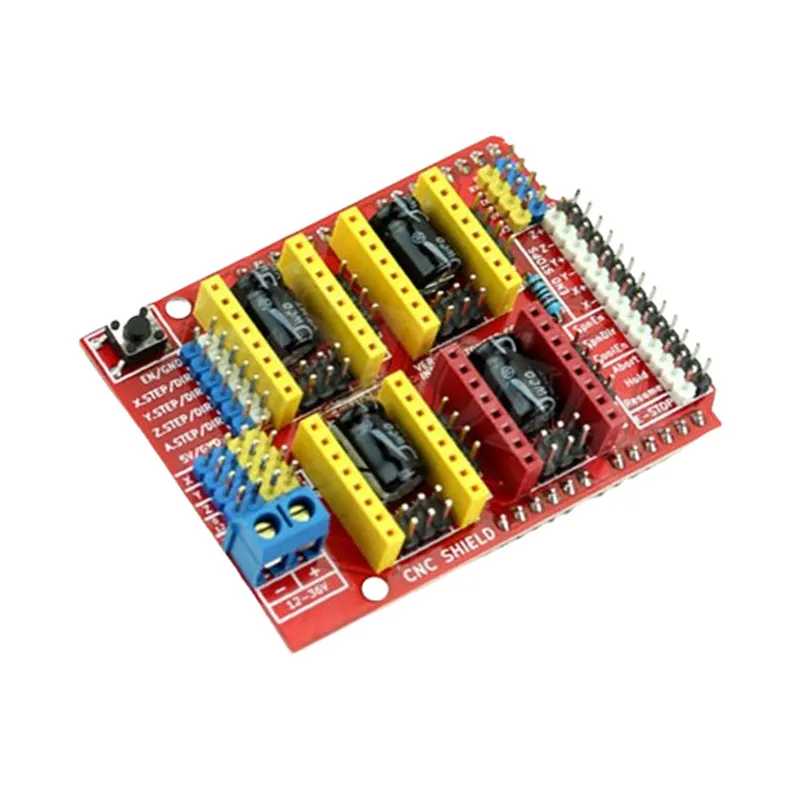

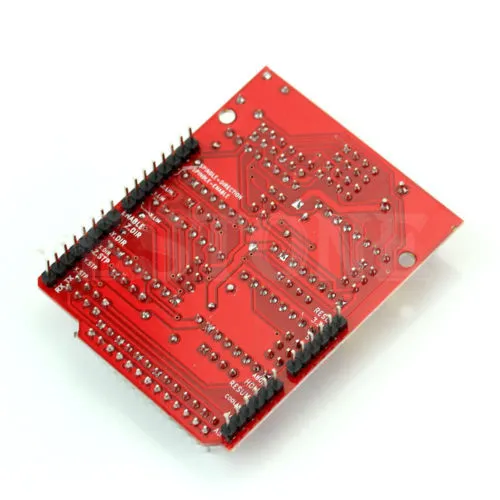

The CNC Shield V3.10 offers a robust solution for controlling 3-axis (or 4-axis with custom firmware) CNC machines, laser engravers, and 3D printers using an Arduino UNO. It provides GRBL 0.9 compatibility and flexible support for A4988 or DRV8825 stepper motor drivers.
Features
- GRBL 0.9 compatible open-source firmware support.
- Provides 4-axis control (X, Y, Z, A) for versatile motion applications.
- Designed for removable Pololu A4988 and DRV8825 compatible stepper drivers.
- Onboard jumpers for convenient micro-stepping configuration.
- Includes dual end stop inputs for each axis (6 total) for precise homing.
Out of stock
This CNC Shield V3 is an expansion board designed to seamlessly interface an Arduino UNO with stepper motor drivers for motion control applications. It simplifies the wiring and control of up to four stepper motors, making it ideal for engraving machines, 3D printers, and robotic platforms. Each stepper motor requires only two IO ports, optimizing Arduino resource usage.
The shield supports popular Pololu A4988 compatible drivers, including the DRV8825, allowing for micro-stepping configuration via onboard jumpers. It operates on a wide 12-36V DC input voltage, though users must ensure their chosen stepper drivers can handle the supply voltage. Additionally, it supports PWM spindle and direction control pins, along with coolant enable functionality for comprehensive machine control. Please note that this product is provided as an unassembled kit, requiring basic soldering skills for assembly.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 5.2 cm |
