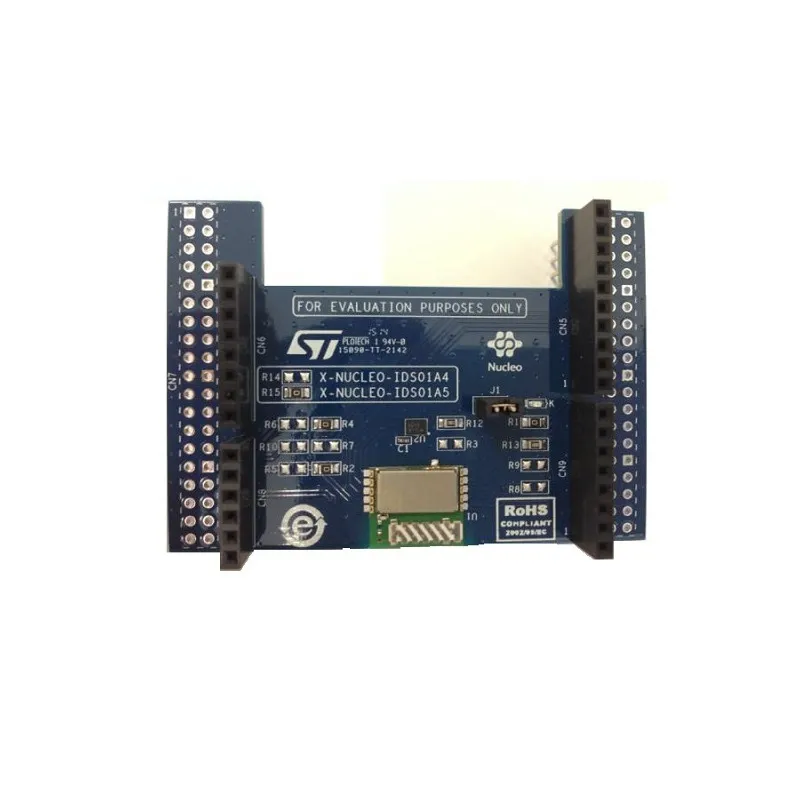

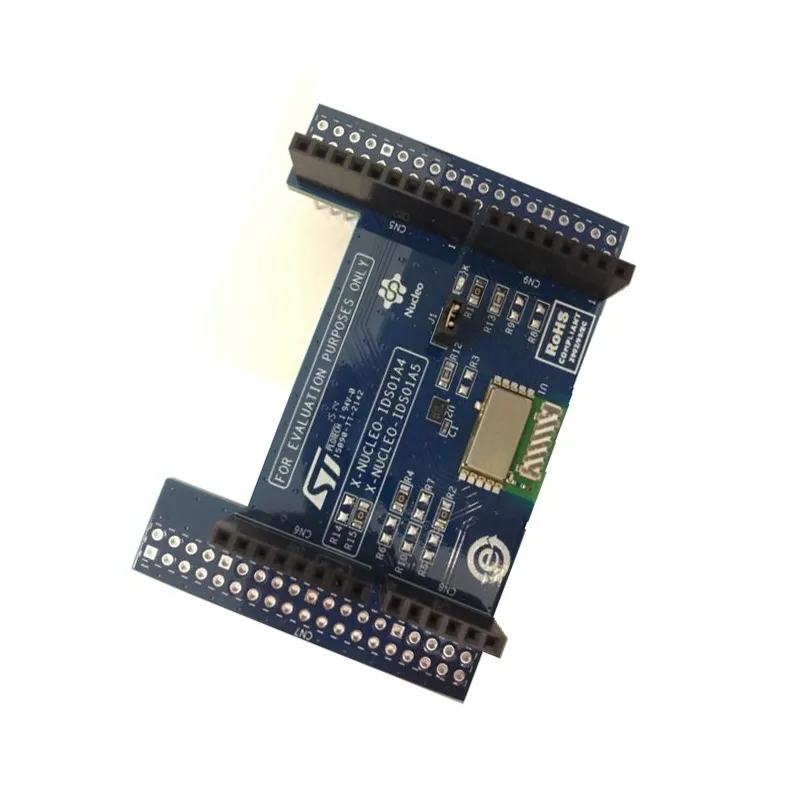

ST X-NUCLEO-IDS01A4 868MHz RF Transceiver for STM32 Nucleo
The ST X-NUCLEO-IDS01A4 is an expansion board for STM32 Nucleo development boards, featuring an SPSGRF 868 MHz ISM band RF transceiver module for low-power wireless communication. It offers Arduino UNO R3 compatibility and supports scalable solutions for diverse IoT and sensing applications.
Features
- Features an SPSGRF-868 module for robust 868 MHz ISM band RF communication.
- Designed as an expansion board for seamless integration with STM32 Nucleo platforms.
- Equipped with Arduino UNO R3 connectors for broad prototyping compatibility.
- Supports scalable system architectures, allowing multiple board cascades.
- ETSI-certified module ensures reliable and compliant wireless operation.
Out of stock
The X-NUCLEO-IDS01A4 is a dedicated expansion board for the STM32 Nucleo ecosystem, incorporating the SPSGRF-868 RF module. This module operates within the 868MHz ISM band and holds ETSI certification, guaranteeing compliance and reliable performance for wireless communication applications. Its design features compatibility with both the MORPHO and Arduino UNO R3 connector layouts, enabling flexible integration into existing prototyping setups.
Interfacing with the host STM32 microcontroller is achieved primarily via SPI connections and dedicated GPIO pins. The board offers a degree of customizability, allowing users to modify certain GPIO configurations by adjusting onboard resistors. This flexibility, combined with its robust RF capabilities, positions the X-NUCLEO-IDS01A4 as a versatile solution for developing low-power, sub-1 GHz wireless systems.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 14 × 13 × 3 cm |
