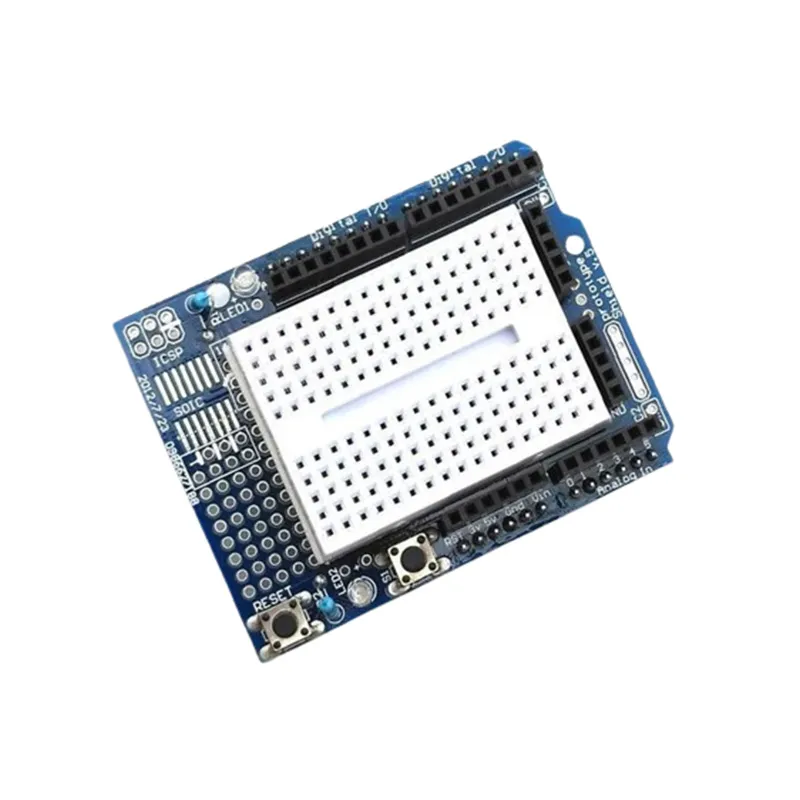

UNO Proto Shield with SYB-170 Mini Breadboard
The UNO Proto Shield provides a versatile prototyping area for Arduino Uno boards, featuring a standard 0.1″ prototyping grid and a bundled SYB-170 mini breadboard for flexible circuit development. It includes dedicated spaces for DIP ICs, power rails, and essential buttons and LEDs for immediate project integration.
Features
- Standard 0.1″x0.1″ prototyping grid with large pads.
- Integrated SYB-170 mini breadboard for flexible circuit layout.
- Features an IC pattern for DIP ICs up to 20 pins.
- Includes a reset button, an extra general-use button, and two 3mm LEDs.
- Pass-thru ICSP stacking header for seamless shield stacking or AVR programming.
Out of stock
The UNO Proto Shield is an essential expansion board designed to enhance the prototyping capabilities of your Arduino Uno. It provides a generous 0.1″x0.1″ prototyping grid with large, easy-to-solder pads, allowing for quick and reliable circuit assembly. This shield comes bundled with an SYB-170 mini breadboard, which can be affixed via double-sided adhesive, offering a convenient solderless area for iterative design and testing.
Engineered for versatility, the shield features dedicated areas for various components, including an IC pattern suitable for DIP ICs up to 20 pins. It incorporates power rails for stable voltage distribution, a tactile reset button, and an additional general-use button for custom inputs. Two 3mm general-use LEDs (red and green), complete with matching resistors, provide immediate visual feedback for debugging or status indication. Furthermore, the board includes a pass-thru ICSP stacking header, enabling the integration of additional shields or direct programming via an AVR programmer, ensuring broad compatibility within the Arduino ecosystem.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 7 × 5.4 cm |
