Nano IO Shield V1.0 for Arduino

Description

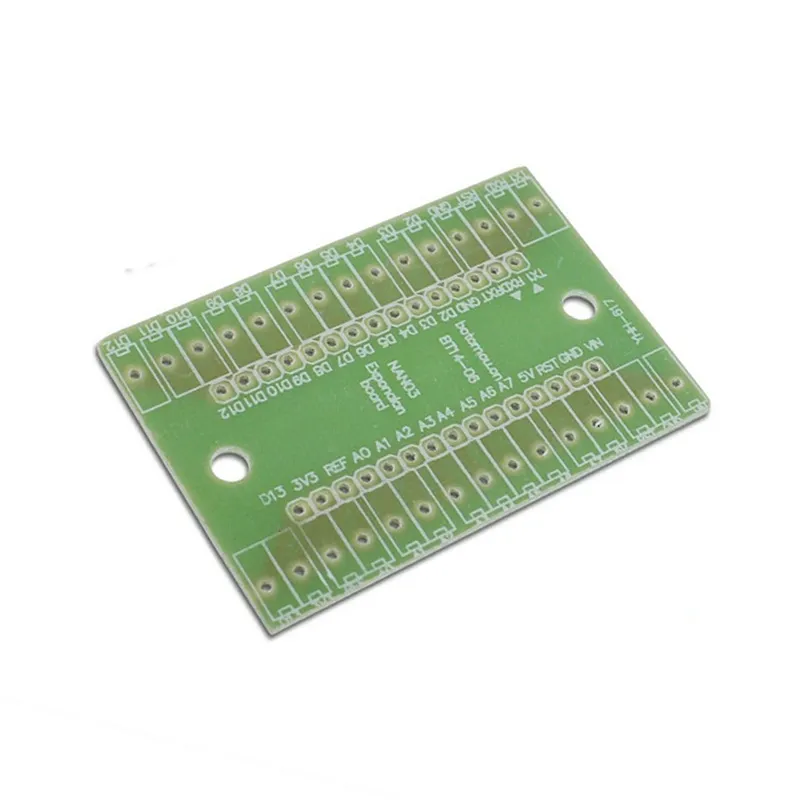

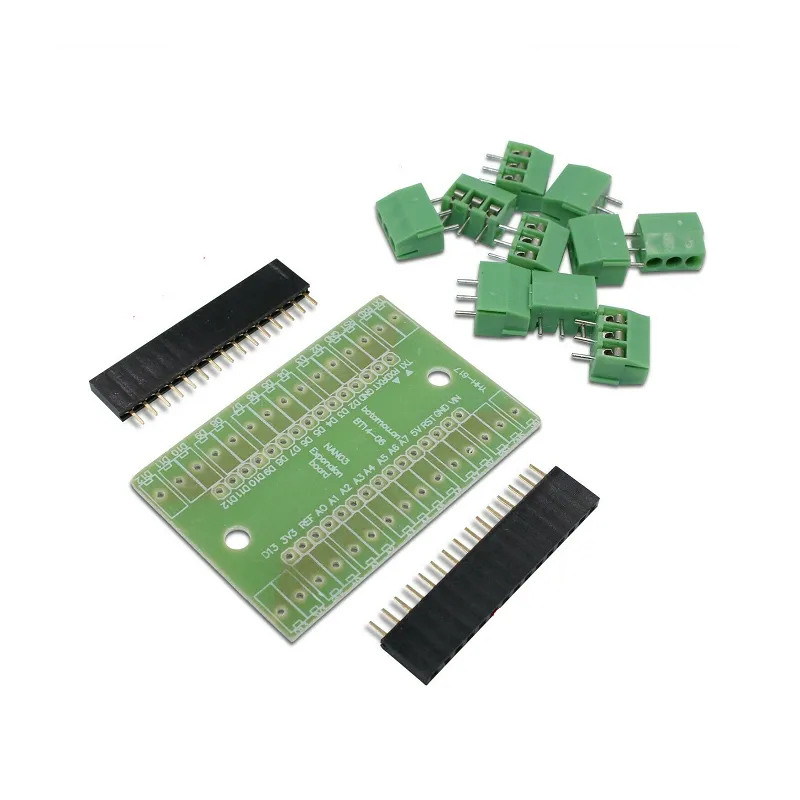

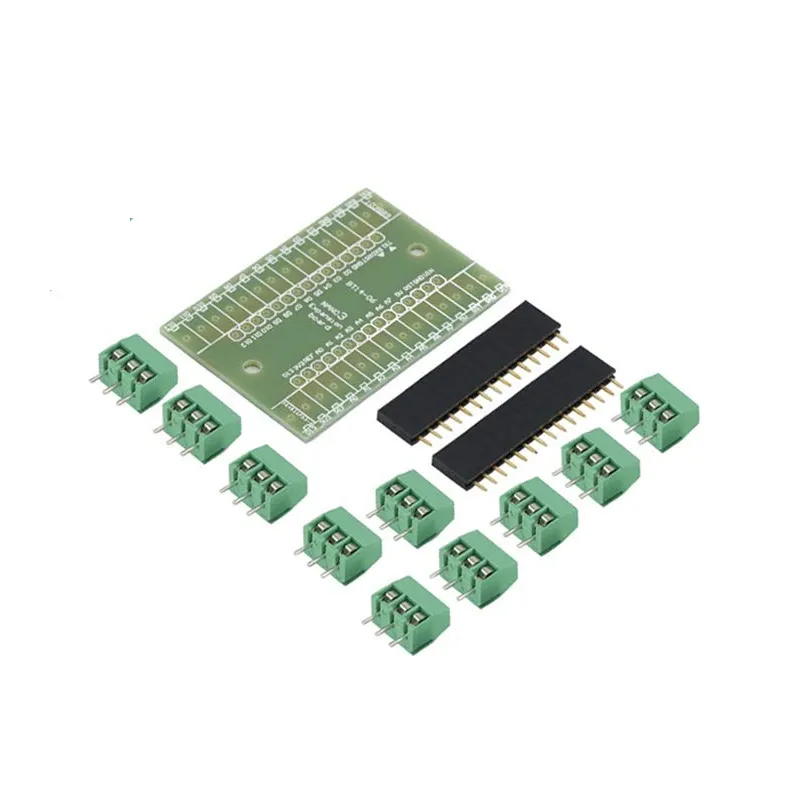

The Nano IO Shield V1.0 serves as a crucial expansion board, meticulously designed to augment the I/O capabilities of your Arduino Nano. It efficiently derives all digital and analog pins, presenting them via convenient screw terminals. This design greatly simplifies the connection process, making it ideal for various experimentation and prototyping tasks without the need for complex breadboard setups. Its compact form factor ensures it integrates smoothly into projects where space is at a premium.

Primarily labeled for Arduino Nano version 3.0, this adapter remains fully compatible with older Nano versions; users simply need to note that analog pins A0-A7 might be in reverse order depending on the specific older board. This shield eliminates the hassle of direct wiring to the Nano’s small headers, allowing for robust and reusable connections to external modules, sensors, and actuators. It is an indispensable tool for makers and engineers looking to streamline their Arduino Nano-based designs.
