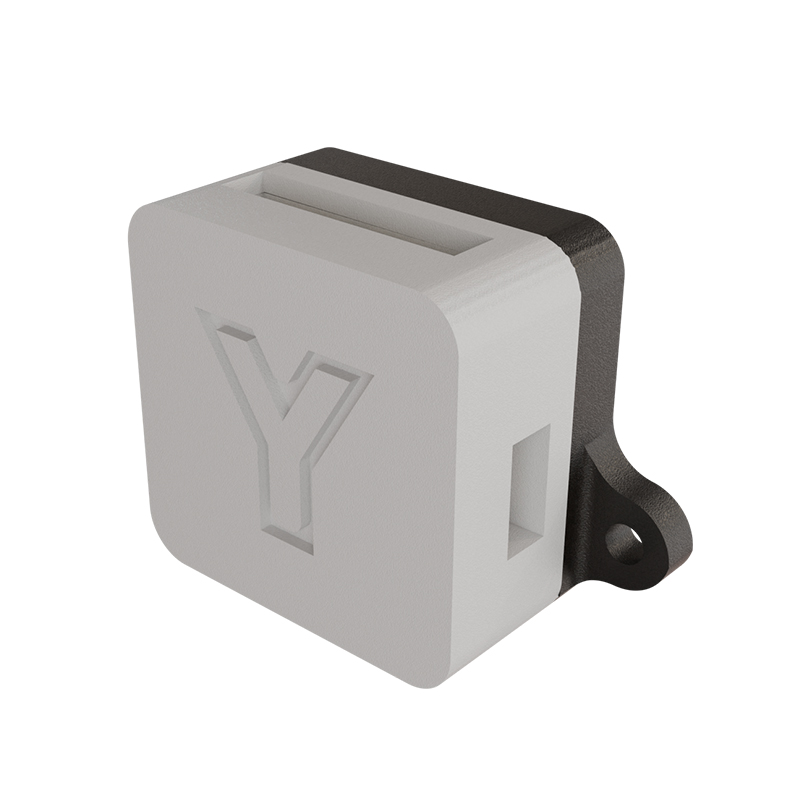

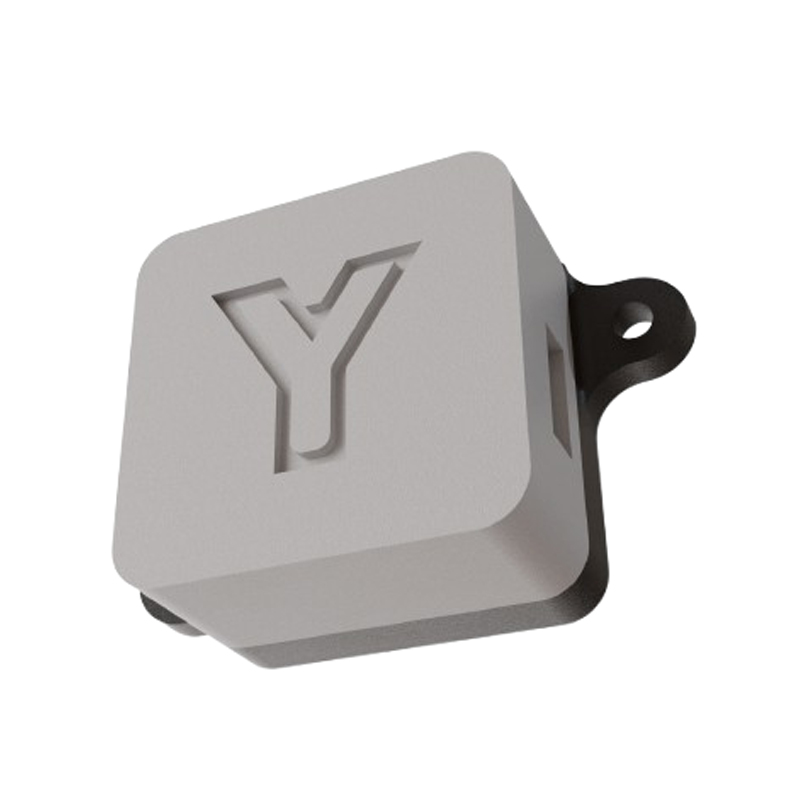

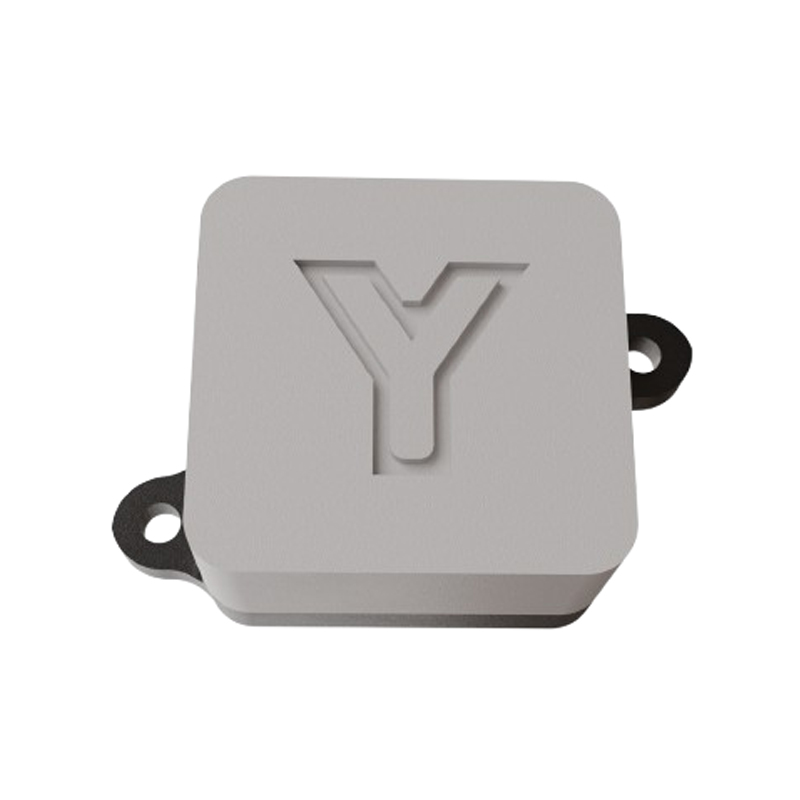

Yaanendriya YDx M CB-2-E 9-DoF AHRS & IMU Module
The Yaanendriya YDx M CB-2-E is a 9-DoF AHRS and IMU module integrating accelerometer, gyroscope, and magnetometer sensors. It provides high-accuracy static roll, pitch, and heading data via a configurable serial interface, ideal for alignment and monitoring systems.
Features
- 9-DoF sensor suite (accelerometer, gyroscope, magnetometer) for full orientation tracking.
- High static accuracy with roll/pitch RMS of 0.8° and reliable magnetometer-fused heading.
- Configurable output rate up to 200 Hz with fast 500 ms startup and low 10 ms latency.
- Factory pre-calibrated for immediate integration into static or low-dynamic applications.
- Wide 2.7V to 5.5V operating voltage range for flexible system compatibility.
Out of stock
The YDx M CB-2-E module employs a 9-Degree-of-Freedom sensor fusion algorithm, combining data from its MEMS accelerometer, gyroscope, and magnetometer to deliver precise Attitude and Heading Reference System (AHRS) outputs. It is optimized for stability in static and low-dynamic environments, ensuring repeatable measurements for critical alignment tasks.
Engineered for industrial integration, the module features a fast startup time and configurable output rates via a serial interface, making it suitable for real-time monitoring systems. Its robust design supports an operating temperature range of -10°C to 60°C, ensuring reliable performance in various installation environments.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 2.876 × 2.786 cm |
