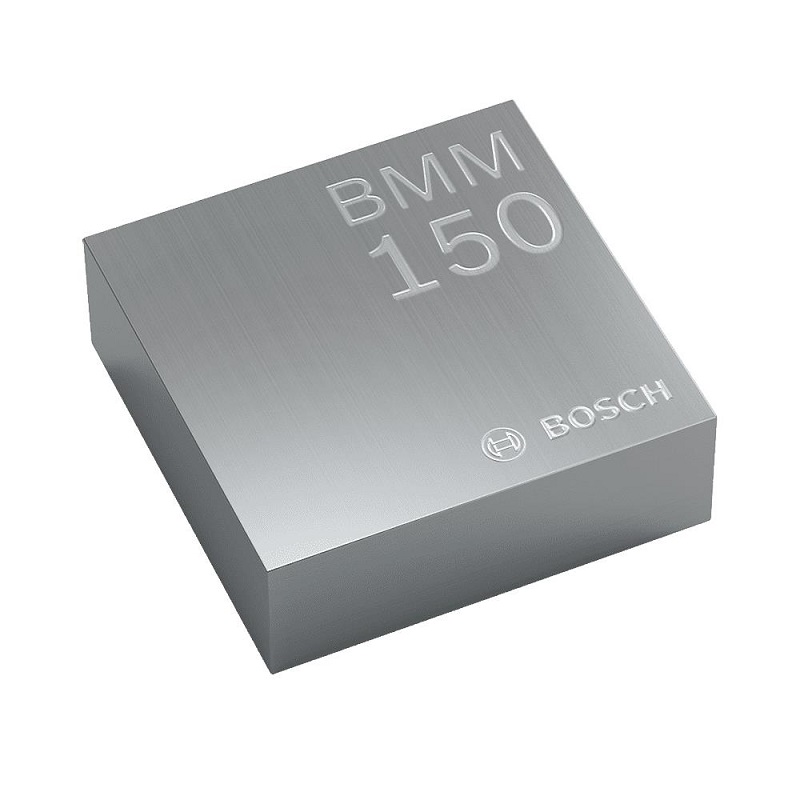

Bosch BMM150 3-Axis Digital Geomagnetic Sensor (Magnetometer), ±1300 µT, WJCSP-12 Package
The Bosch BMM150 is a 3-axis digital geomagnetic sensor (magnetometer) offering high-precision magnetic field measurement in an ultra-compact WLCSP package. It features dual SPI/I²C digital interfaces, operates from 1.2V to 3.6V, and is ideal for integration with microcontrollers like Arduino, Raspberry Pi, and ESP32 for navigation, orientation, and compass applications.
Features
- High-precision 3-axis geomagnetic sensor with ±1300 µT (x,y) / ±2500 µT (z) measurement range.
- Ultra-compact Wafer Level Chip Scale Package (WLCSP): 1.56 x 1.56 x 0.6 mm footprint.
- Dual digital interface support: SPI (4-wire/3-wire) and I²C for flexible system integration.
- Ultra-low power operation: 170 µA typical supply current at 10 Hz ODR.
- Wide operating voltage range from 1.2V to 3.6V, compatible with 3.3V and 5V logic systems.
Out of stock
The Bosch BMM150 is a state-of-the-art 3-axis digital magnetometer designed for high-accuracy magnetic field sensing in space-constrained applications. Utilizing advanced MEMS technology, it provides precise measurement of magnetic flux density across a wide dynamic range. The sensor integrates signal conditioning and a 12-bit ADC, delivering digital output directly via SPI or I²C interfaces.
Engineered for low-power operation, the BMM150 features advanced power management with multiple operational modes and a fast wake-up time, making it suitable for battery-powered devices. Its robust digital core includes an on-chip interrupt controller for efficient event-driven system design. The sensor is supplied in a RoHS-compliant, lead-free WJCSP-12 package, ensuring reliability for consumer electronics, IoT, and industrial positioning systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
