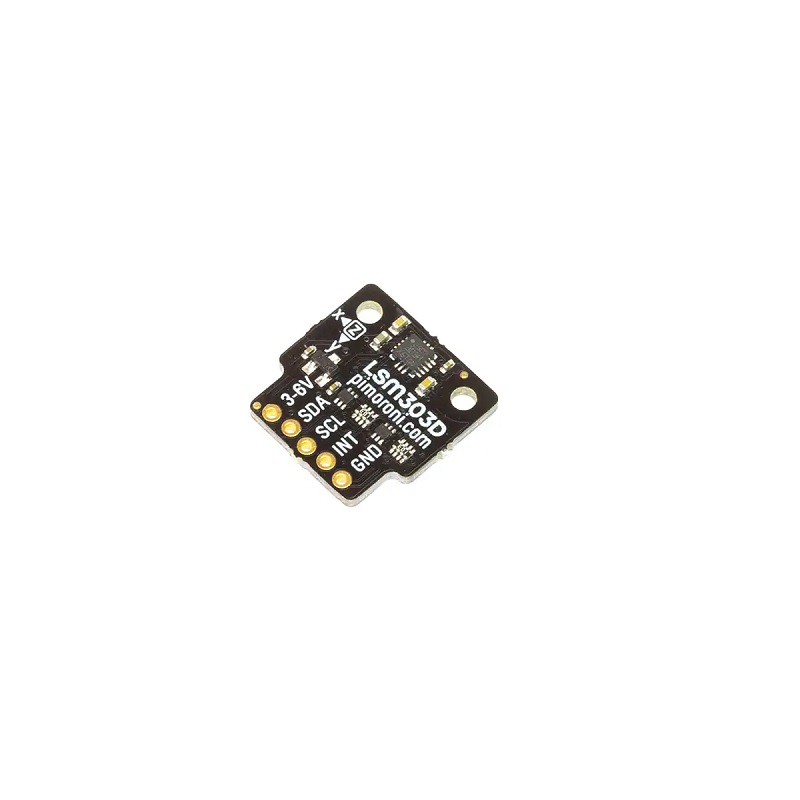

Pimoroni LSM303D 6DoF Motion Sensor Breakout - I2C Interface, 3.3V/5V Compatible
The Pimoroni LSM303D breakout integrates a 3-axis accelerometer and 3-axis magnetometer into a single 6DoF motion sensor module. It features an I2C interface with address selection and is compatible with 3.3V and 5V logic systems, making it ideal for robotics, navigation, and motion detection projects with Arduino, Raspberry Pi, and other microcontrollers.
Features
- Integrated LSM303D 6DoF sensor combining a 3-axis accelerometer (±2/±4/±6/±8/±16 g) and 3-axis magnetometer (±2/±4/±8/±12 gauss).

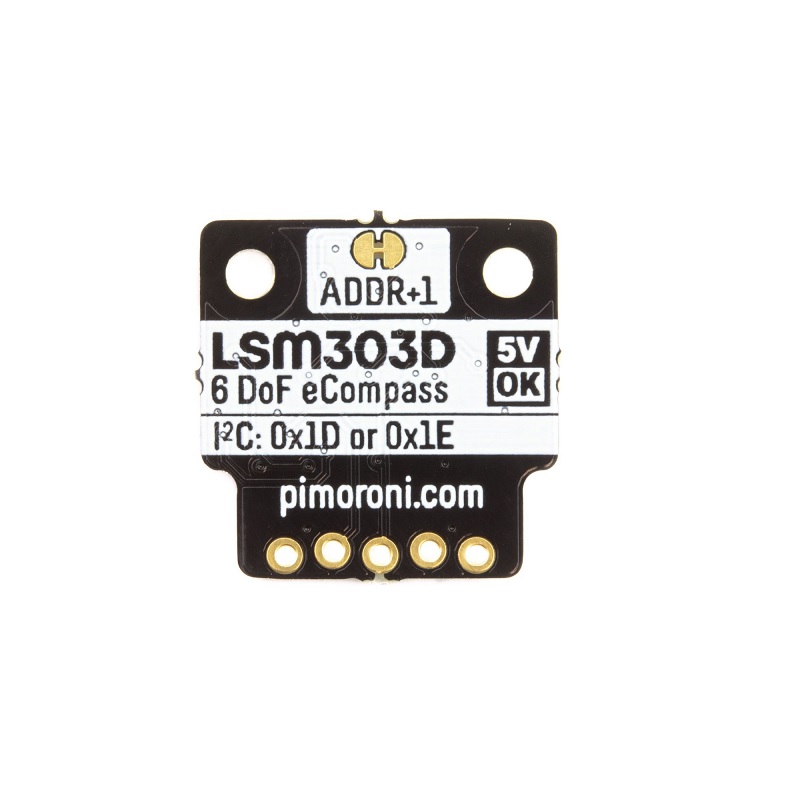

- I2C digital interface with configurable address via cuttable trace (0x1D or 0x1E).
- Wide operating voltage range (3.3V to 5V) with reverse polarity protection.
- Compact breakout board design (19mm x 19mm) for easy prototyping.
- Provides 16-bit data output for high-resolution motion and magnetic field sensing.
Out of stock
The LSM303D is a MEMS-based inertial measurement unit that combines a high-performance triaxial accelerometer and magnetometer on a single chip. The integrated analog-to-digital converters and signal conditioning circuitry provide stable, calibrated digital outputs via the I2C bus, simplifying system integration and reducing peripheral component count.

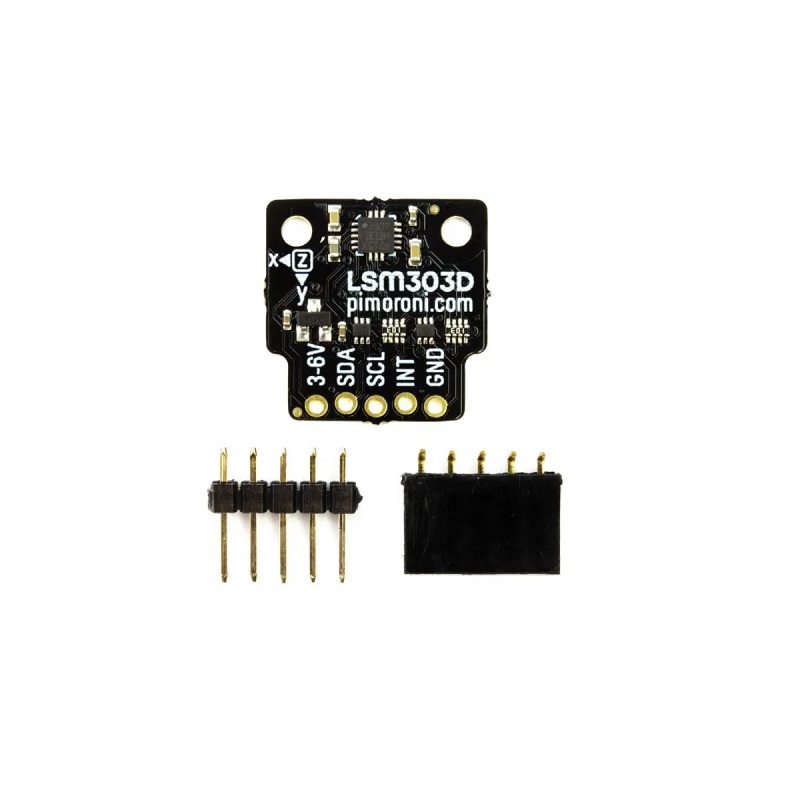

This breakout board provides easy access to the sensor’s pins, including voltage supply, ground, I2C data (SDA), and clock (SCL) lines. The module’s low-power operating modes make it suitable for battery-powered portable devices, while its robust digital output supports advanced motion processing algorithms for orientation, navigation, and gesture recognition applications.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.9 × 1.9 cm |
