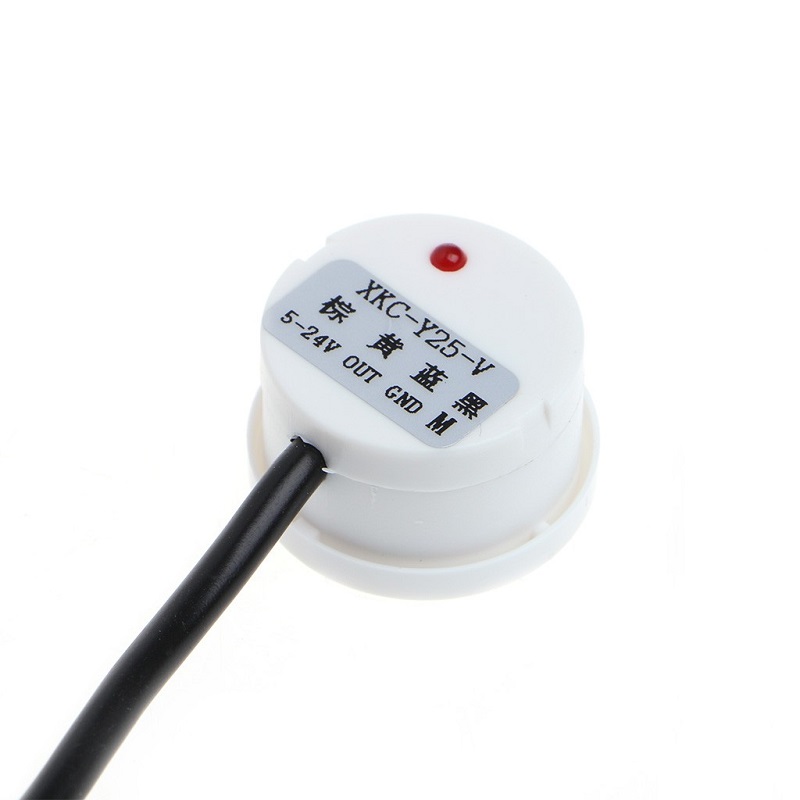

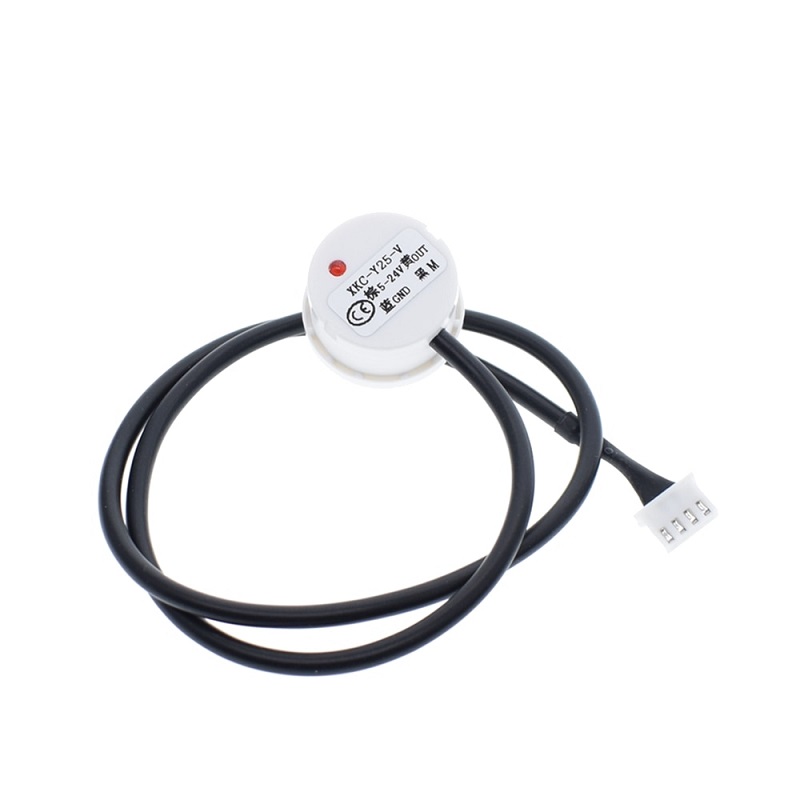

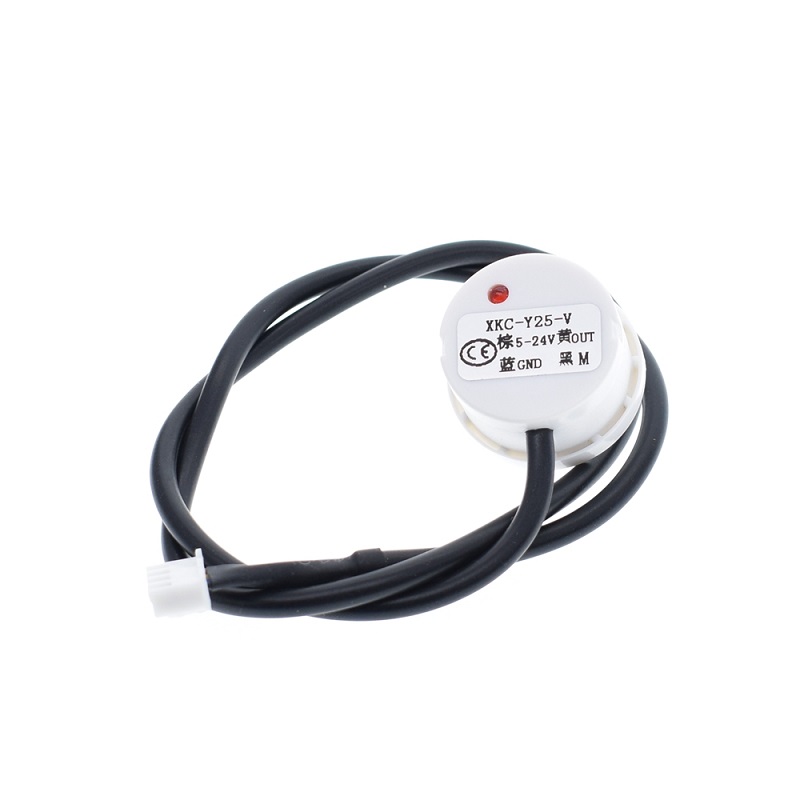

XKC-Y25-V Intelligent Non-Contact Liquid Water Level Sensor - RS485, IP67
The XKC-Y25-V is an intelligent non-contact liquid level sensor utilizing RS485 communication, designed for detecting liquid levels through non-metallic container walls without direct contact. It operates from a 5-24V DC supply, making it compatible with industrial PLCs, Arduino-based systems, and RS485 data acquisition networks.
Features
- Non-contact detection through non-metallic container walls up to 20mm thickness.
- RS485 communication interface for robust industrial network integration.
- Wide 5-24V DC operating voltage range with low 5mA power consumption.
- IP67-rated waterproof ABS housing for durable operation in wet environments.
- Output current configurable from 1 to 100mA for direct control or signaling.
Out of stock
The XKC-Y25-V sensor employs advanced signal processing technology to detect liquid presence without physical contact with the medium. It operates by sensing changes through the container material, making it ideal for sealed or pressurized vessels containing aggressive, toxic, or sterile liquids where direct sensor immersion is undesirable or impossible.
Featuring an RS485 interface, it enables reliable long-distance communication and easy integration into Modbus-based industrial control systems, building automation, or custom microcontroller projects. The IP67-rated ABS housing ensures protection against dust and temporary water immersion, supporting deployment in challenging environments from water treatment to medical equipment.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3 × 3 × 2 cm |
