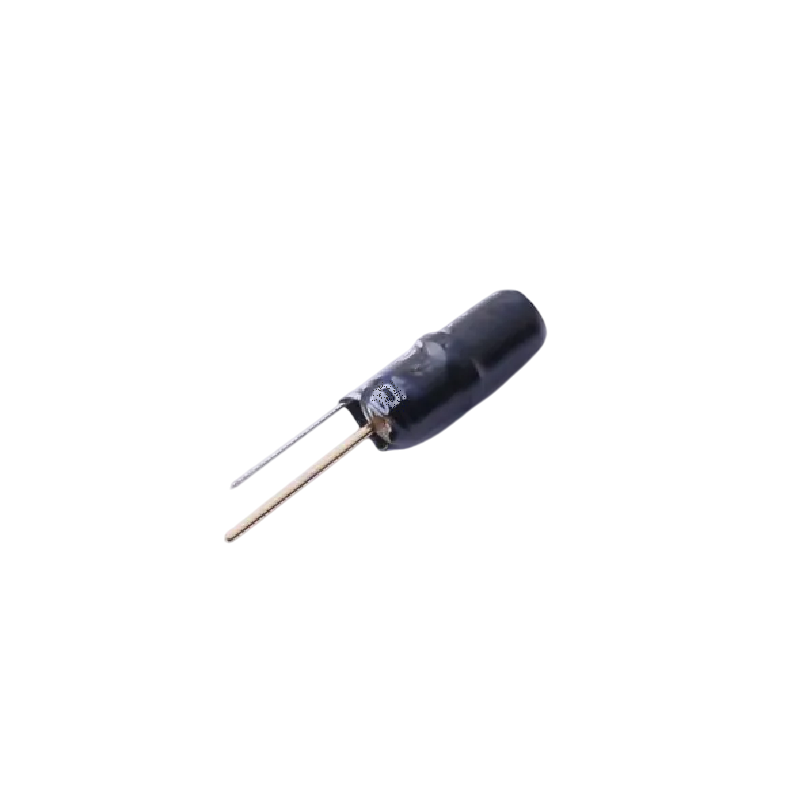

XKB Connection SW-200DAC-10G1 Single-Ball Tilt Switch - 10° Activation Angle
The XKB Connection SW-200DAC-10G1 is a single-ball tilt switch designed for orientation detection and vibration sensing in electronic systems. It provides a simple digital ON/OFF output when tilted beyond a 10° threshold, compatible with low-voltage circuits under 12V and suitable for integration with microcontrollers like Arduino or industrial PLCs.
Features
- Single-ball tilt induction mechanism triggers at a 10-degree angle.
- Low-power operation under 12V DC with a current draw of less than 20mA.
- Sealed, waterproof, and dustproof construction for harsh environment reliability.
- High mechanical durability rated for 100,000 actuation cycles.
- Fast 2ms conduction time for immediate state change detection.
Out of stock
The SW-200DAC-10G1 tilt switch utilizes a single conductive ball within a sealed chamber to detect orientation changes. When the unit is tilted beyond its 10-degree threshold, the ball rolls to make contact with gold-plated pins, closing the circuit and providing a digital high signal. This electromechanical principle offers a robust, non-powered sensing solution for basic tilt and vibration detection.
Designed for durability, the switch’s sealed housing provides IP-rated protection against dust and moisture ingress, making it suitable for applications in automotive, industrial safety, and outdoor equipment. Its wide operating temperature range supports reliable performance in varied environmental conditions.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 11 × 5 × 2 cm |
