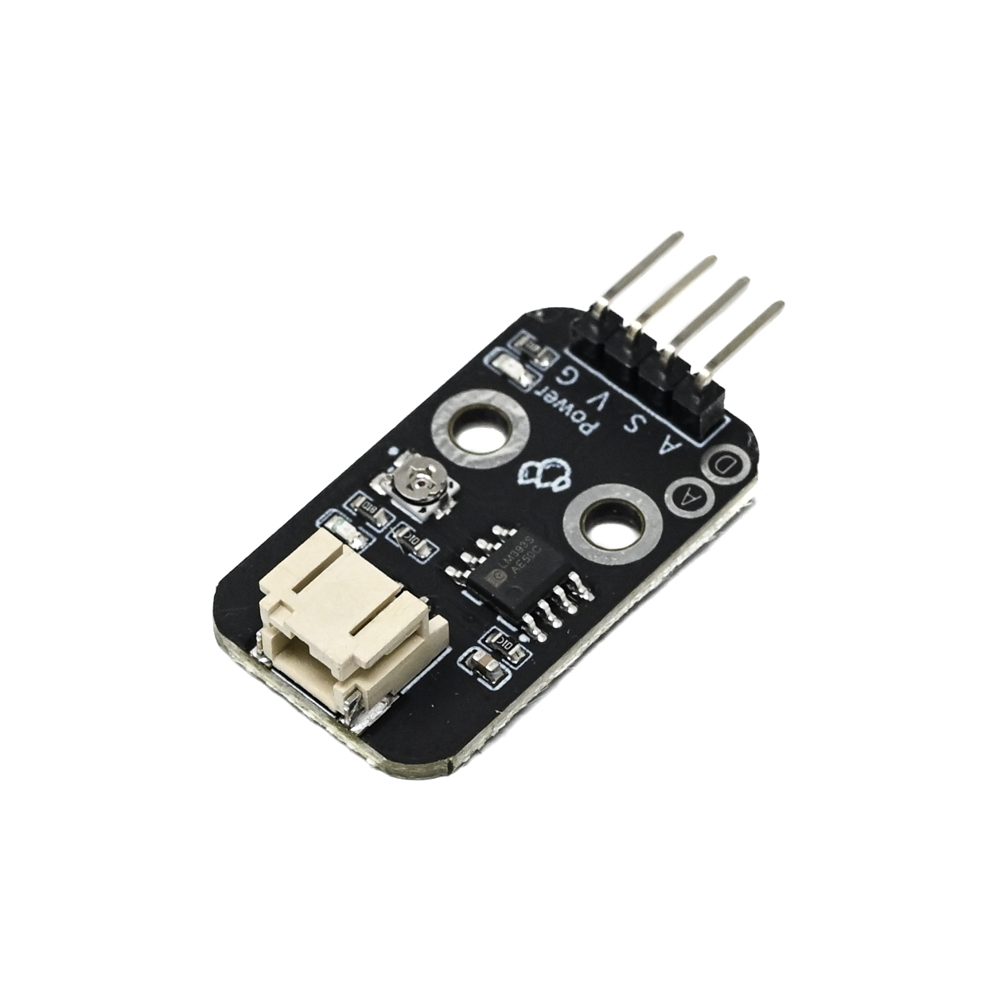

HS-S09PB Raindrop Sensor Module - Analog & Digital Output, PH2.0 Interface
The HS-S09PB is a compact raindrop and moisture detection sensor module compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32. It provides both analog and digital output signals for flexible integration into weather monitoring and automation projects.
Features
- Dual analog and digital output signals for versatile data acquisition.
- Wide 3.3V to 5.5V operating voltage range for compatibility with 3.3V and 5V microcontrollers.
- Fast response time of ≤100ms for real-time precipitation detection.
- Compact 23mm x 46mm PCB design with PH2.0 connector for easy integration.
- Low power consumption, drawing ≤20mA during operation.
Out of stock

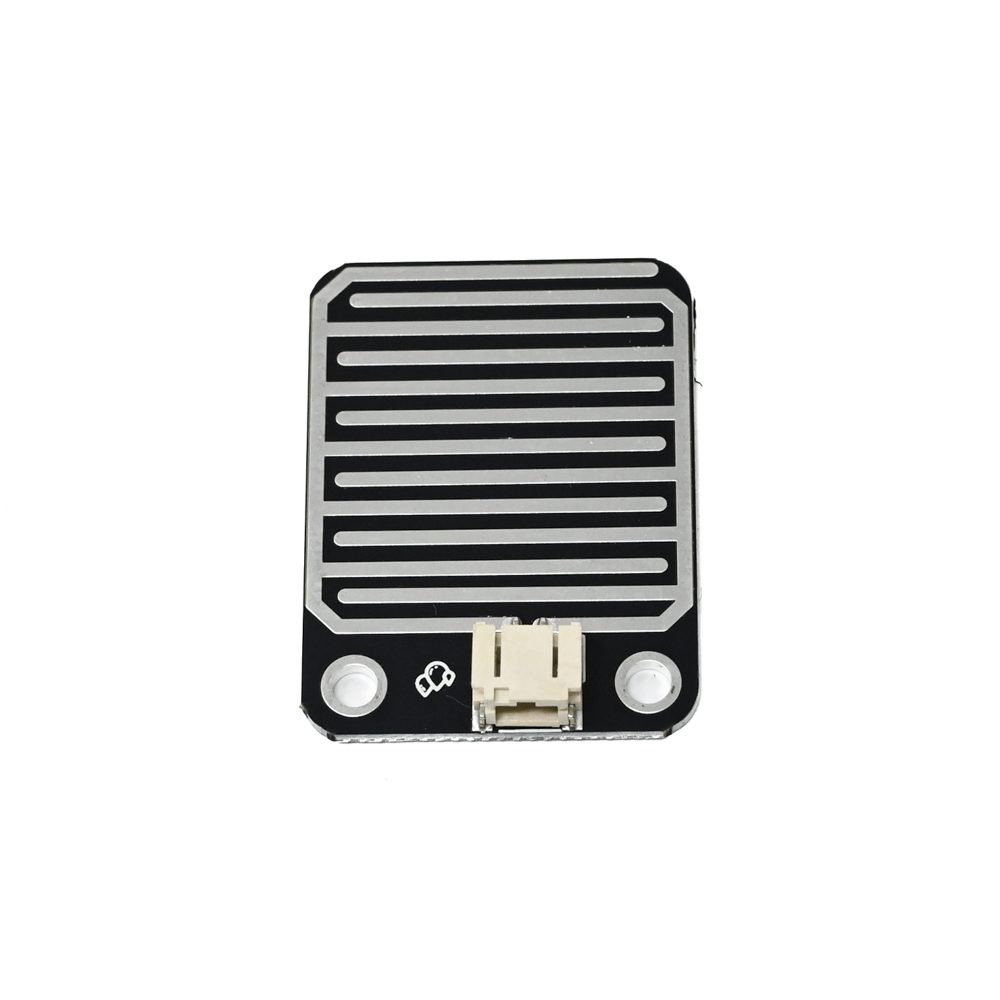

The HS-S09PB raindrop sensor module detects the presence and intensity of rainfall or surface moisture through changes in conductivity across its exposed sensing pad. The module includes onboard signal conditioning to provide a stable analog voltage output proportional to moisture level, as well as a digital output with an adjustable threshold via a potentiometer for simple on/off detection.
Constructed on an FR4 PCB, the module is designed for indoor or sheltered environmental monitoring applications. Its PH2.0 2/3P terminal wire interface simplifies wiring connections to development boards and data acquisition systems, making it suitable for DIY weather stations, smart agriculture systems, and automatic window or awning control.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4.6 × 2.3 cm |
