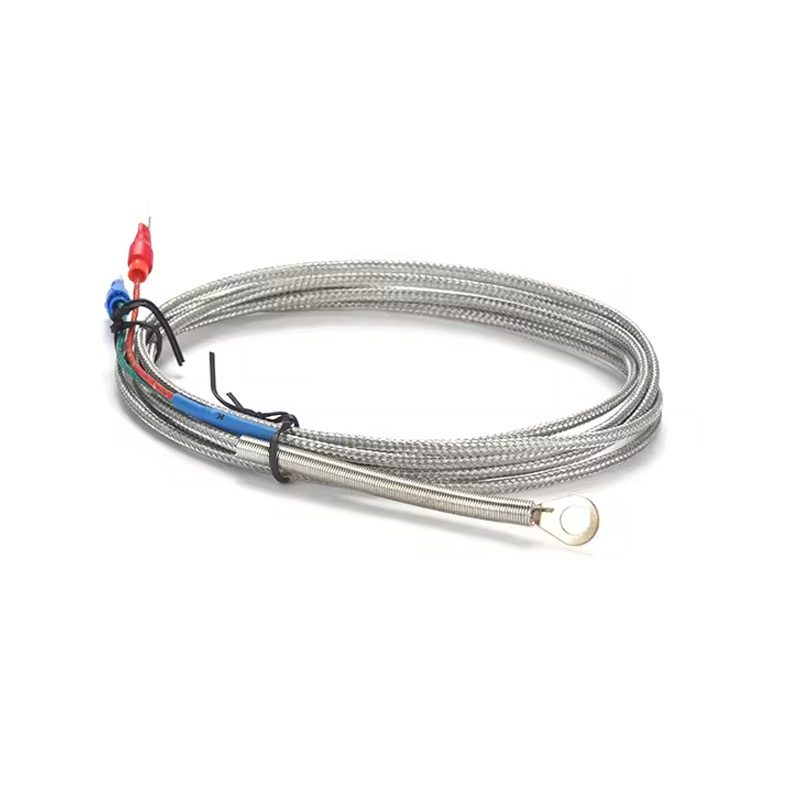

XIQI Electric CG-TP Type K Thermocouple Sensor Cable - 2m Cable, Stainless Steel Probe
XIQI Electric CG-TP Type K Thermocouple Sensor Cable - 2m Cable, Stainless Steel Probe - Image 2
SKU: SENS-3723
📋 GST Invoice Available

XIQI Electric CG-TP Type K Thermocouple Sensor Cable - 2m Cable, Stainless Steel Probe

₹186.00 (Inclusive of all taxes)
Out of Stock

The XIQI Electric CG-TP is a Type K thermocouple sensor cable with a 2-meter lead, designed for industrial temperature controllers, ovens, and furnaces. It features a durable stainless steel probe for measurements from 0°C to 600°C with ±1.5°C accuracy.

Features

  • Type K thermocouple with a 2-meter high-temperature cable.
  • Stainless steel probe for durability in harsh industrial environments.
  • Wide measurement range from 0°C to 600°C.
  • Accuracy of ±1.5°C for reliable process monitoring.
  • Direct compatibility with standard industrial temperature controllers and PLCs.

Out of stock

Description

The CG-TP thermocouple sensor utilizes the Type K (Nickel-Chromium / Nickel-Alumel) thermoelectric principle to generate a millivolt signal proportional to temperature. This robust sensor is engineered for continuous operation in high-temperature industrial settings, featuring a sealed, waterproof junction within the stainless steel probe for protection against moisture and contaminants.

The 2-meter insulated cable provides flexible installation reach to connect with temperature controllers, data loggers, or PLC analog input modules. Its construction ensures stable signal transmission and resistance to thermal degradation, making it suitable for integration into ovens, kilns, furnaces, and other process heating equipment.

Key Features

  • Type K thermocouple with industry-standard calibration.
  • Stainless steel 304 probe sheath for corrosion resistance and mechanical durability.
  • High-temperature rated cable insulation suitable for continuous use up to 600°C.
  • Waterproof sensor junction for reliable operation in humid or washdown environments.
  • Precision-welded thermocouple junction for stable EMF output and ±1.5°C accuracy.
  • Ready-to-use assembly with stripped and tinned wire leads for easy termination.
  • Optimized performance-to-cost ratio for industrial batch processes and HVAC systems.

Applications

  • Temperature monitoring and control in industrial electric ovens and baking lines.
  • Process temperature feedback for kilns, furnaces, and heat treatment systems.
  • HVAC system duct temperature sensing and energy management.
  • Laboratory oven and incubator temperature profiling and safety cut-offs.
  • Plastic extrusion barrel temperature monitoring for process stability.

Technical Specifications

Model NumberCG-TP
Sensor TypeThermocouple, Type K
Temperature Range0°C to 600°C
Accuracy±1.5°C
Probe MaterialStainless Steel
Cable Length2 meters
Output SignalThermocouple Voltage (mV)
Junction TypeUngrounded, Insulated
Primary ApplicationIndustrial Temperature Control

Frequently Asked Questions

What type of connector or output does this thermocouple sensor have?

This sensor provides bare, stripped, and tinned wire leads at the end of its 2-meter cable. There is no proprietary connector; you directly wire these leads to the thermocouple input terminals of your temperature controller, data logger, or PLC module, ensuring correct polarity (positive and negative thermocouple wires).

Is this sensor suitable for direct immersion in liquids or only for air/gas measurement?

The stainless steel probe is waterproof and can be immersed in non-corrosive liquids for temperature measurement. However, its primary design and 600°C rating are optimized for air/gas environments in ovens and furnaces. For aggressive liquids, verify chemical compatibility of the 304 stainless steel sheath.

Can I extend the 2-meter cable length if needed for my installation?

Yes, but you must use proper thermocouple extension wire of the same Type K calibration. Splicing with standard copper wire will introduce measurement errors. For best accuracy, use a dedicated thermocouple extension cable and maintain all connections within the sensor's specified ambient temperature limits.

Package Includes

  • 1 x CG-TP Type K Thermocouple Sensor with 2m Cable

Additional Information

Weight 0.05 kg
Dimensions 6 × 10 × 1 cm
