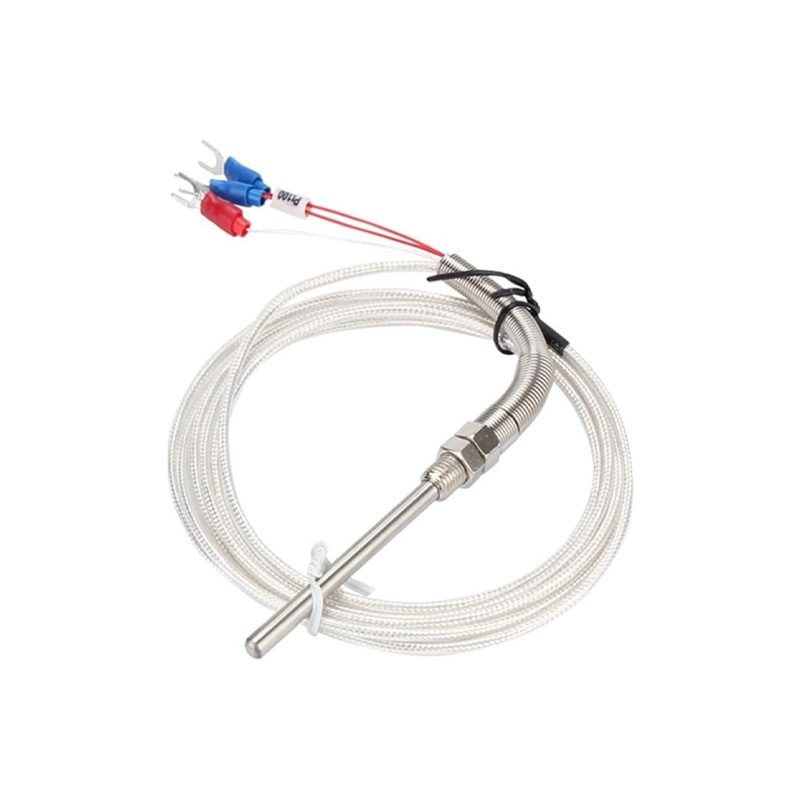

XIQI Electric CG-WZPT-03 PT100 Oven Temperature Sensor, M8 5x100mm Probe, 2m Cable

Name: XIQI Electric CG-WZPT-03 PT100 Oven Temperature Sensor, M8 5x100mm Probe, 2m Cable
Brand: XIQI Electric
SKU: SENS-3697
Price: 729.00 INR
Availability: OutOfStock

₹729.00 (Inclusive of all taxes)

Out of Stock

The XIQI Electric CG-WZPT-03 is a PT100 thermocouple temperature sensor with a 5x100mm stainless steel probe and M8 thread, designed for industrial ovens and furnaces. It provides a 0°C to 800°C measurement range with ±1.5°C accuracy and a 2-meter cable for flexible installation.

Features

PT100 thermocouple sensor with a 0°C to 800°C operating range.
Stainless steel probe (5mm diameter x 100mm length) with M8 threaded mounting.
High accuracy of ±1.5°C for reliable industrial temperature monitoring.
Includes a 2-meter cable for flexible installation in ovens and furnaces.

Out of stock

Get Notified When Available

Description

The CG-WZPT-03 is a robust PT100 resistance temperature detector (RTD) designed for demanding industrial thermal measurement. Its stainless steel probe construction ensures durability in high-temperature environments up to 800°C, while the M8 threaded mount provides secure and stable installation.

This sensor delivers precise temperature feedback critical for process control in applications like industrial ovens, kilns, and furnaces. The integrated 2-meter cable allows for remote placement from the measurement point, facilitating integration into existing control systems and data acquisition units.

Key Features

PT100 (Platinum RTD) sensing element for stable and repeatable temperature readings.
Rugged 5x100mm stainless steel probe resistant to oxidation and thermal stress.
M8 threaded housing for secure, vibration-resistant mounting in panels or equipment walls.
Wide operating temperature range from 0°C to 800°C, suitable for harsh industrial environments.
Specified accuracy of ±1.5°C ensures reliable process monitoring and control.
Pre-attached 2-meter high-temperature cable simplifies installation and wiring.

Applications

Temperature monitoring and control in industrial baking ovens and food processing lines.
Thermal profiling and safety cut-off systems for furnaces and kilns in ceramic or metalworking.
Process temperature feedback for PLCs and data loggers in chemical and manufacturing plants.
Over-temperature protection and monitoring in HVAC ducting and industrial heaters.

Technical Specifications

Model Number	CG-WZPT-03
Sensor Type	PT100 Thermocouple (RTD)
Temperature Range	0°C to 800°C
Accuracy	±1.5°C
Probe Material	Stainless Steel
Probe Dimensions	5 mm Diameter x 100 mm Length
Mounting Thread	M8
Cable Length	2 m
Shipping Weight	0.05 kg
Shipping Dimensions	10 x 6 x 1 cm

Frequently Asked Questions

What is the output signal of this PT100 sensor?

This is a passive PT100 Resistance Temperature Detector (RTD). It does not have an integrated signal conditioner. Its resistance changes with temperature (100Ω at 0°C), requiring an external RTD transmitter, signal conditioner, or compatible PLC input module to convert the resistance change into a standard analog (4-20mA, 0-10V) or digital signal for your control system.

How do I wire and interface this sensor with an Arduino or PLC?

You cannot connect this raw PT100 sensor directly to a microcontroller. You need an external RTD amplifier or transmitter module (e.g., with MAX31865 IC) that provides excitation current, measures the sensor's resistance, and outputs a conditioned signal. Connect the sensor's two wires to the transmitter, then connect the transmitter's output (e.g., analog voltage, SPI, I2C) to your Arduino, Raspberry Pi, or PLC analog input.

Is this sensor suitable for continuous use at 800°C?

While the specified range is 0°C to 800°C, continuous operation at the maximum temperature may accelerate probe aging and affect long-term accuracy. For sustained high-temperature applications, ensure the installation environment minimizes thermal cycling and mechanical stress. Verify the cable's temperature rating is suitable for the ambient conditions near the oven or furnace.
