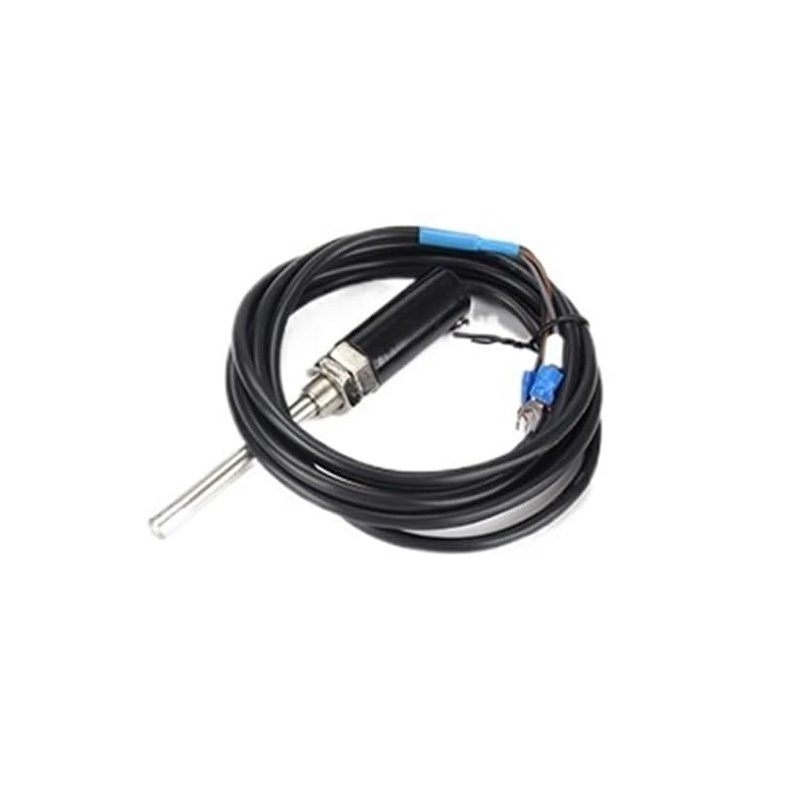

XIQI Electric CG-WZPT-03 PT100 Temperature Sensor, M12 Thread, 7x50mm Probe, 1m Cable

Name: XIQI Electric CG-WZPT-03 PT100 Temperature Sensor, M12 Thread, 7x50mm Probe, 1m Cable
Brand: XIQI Electric
SKU: SENS-3700
Price: 399.00 INR
Availability: OutOfStock

₹399.00 (Inclusive of all taxes)

Out of Stock

The XIQI Electric CG-WZPT-03 is a PT100 RTD temperature sensor with an M12 threaded stainless steel probe, designed for direct integration with temperature controllers and industrial PLCs. It provides a wide measurement range from 0°C to 800°C with an accuracy of ±1.5°C, suitable for high-temperature process monitoring.

Features

PT100 Platinum RTD sensor element for stable, linear temperature measurement.
Stainless steel M12 threaded probe (7mm diameter x 50mm length) for robust industrial mounting.
Wide operating range from 0°C to 800°C with ±1.5°C accuracy.
Includes 1-meter cable for flexible installation in ovens, furnaces, and kilns.
Standard 3-wire configuration for accurate resistance measurement and reduced lead wire error.

Out of stock

Get Notified When Available

Description

The CG-WZPT-03 utilizes a PT100 (Platinum Resistance Temperature Detector) sensing element, whose electrical resistance changes predictably with temperature. This 3-wire configuration allows for precise measurement by compensating for lead wire resistance, ensuring reliable data for process control systems.

Housed in a durable stainless steel sheath with an M12 mounting thread, the sensor is built to withstand harsh industrial environments, including high temperatures and mechanical stress. The integrated 1-meter cable provides direct connection to compatible temperature transmitters, controllers, or data acquisition modules.

Key Features

High-precision PT100 RTD element (100Ω at 0°C) for excellent long-term stability.
Industrial-grade 316 stainless steel probe construction for corrosion and heat resistance.
Standardized M12 threaded connection ensures secure and repeatable mounting.
3-wire output minimizes measurement errors caused by lead resistance.
Optimized performance-to-cost ratio for demanding temperature monitoring applications.
Direct compatibility with most industrial temperature controllers and PLC analog input modules.

Applications

High-temperature process monitoring in industrial ovens, furnaces, and kilns.
Temperature control and safety monitoring in plastic extrusion and injection molding machinery.
Heat treatment and annealing process validation in metallurgical applications.
Exhaust gas and flue temperature measurement in combustion systems.
Laboratory and test equipment requiring precise, durable temperature sensing.

Technical Specifications

Model Number	CG-WZPT-03
Sensing Element	PT100 (Platinum RTD)
Temperature Range	0°C to 800°C
Accuracy	±1.5°C
Probe Material	Stainless Steel
Probe Dimensions	7mm Diameter x 50mm Length
Mounting Thread	M12
Cable Length	1 Meter
Wire Configuration	3-Wire
Operating Temperature	0°C to 800°C

Frequently Asked Questions

What is the difference between a PT100 sensor and a thermocouple?

A PT100 is a Resistance Temperature Detector (RTD) that uses the predictable change in platinum wire resistance to measure temperature, offering high accuracy and stability over a wide range. A thermocouple generates a voltage based on the temperature difference between two dissimilar metal junctions. This PT100 sensor is more stable and linear than a Type K thermocouple but requires a different signal conditioner.

How do I connect this 3-wire PT100 sensor to my temperature controller?

Connect the three wires to the designated PT100 input terminals on your controller, typically labeled as 2, 3, and 4 or with a specific 3-wire RTD wiring diagram. The 3-wire configuration compensates for lead wire resistance, ensuring accurate measurement. Always refer to your controller's manual for the correct terminal assignments for a 3-wire PT100 input.

Is this sensor suitable for immersion in liquids or only for air/gas measurement?

While the stainless steel sheath provides corrosion resistance, its primary design is for insertion into thermowells or direct mounting into process walls for gas or surface temperature measurement. For direct liquid immersion, ensure the medium is chemically compatible with 316 stainless steel and that the installation prevents liquid ingress into the cable connection point.

What is the maximum continuous temperature this sensor can withstand?

The sensor is rated for continuous operation up to 800°C. Prolonged exposure at the upper limit of this range may accelerate aging of the platinum element. For optimal longevity, it is recommended to operate within 80% of the maximum rated temperature where possible.
