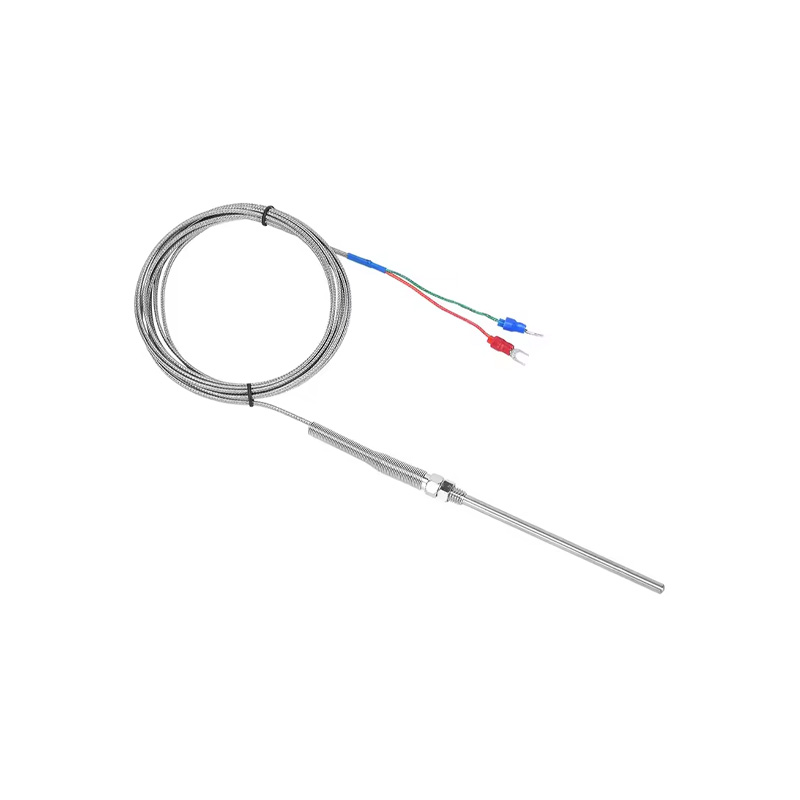

XIQI Electric CG-WRNT-03 K-Type Thermocouple Sensor - M8 Thread, 5x100mm Probe, 2m Cable, 0-600°C

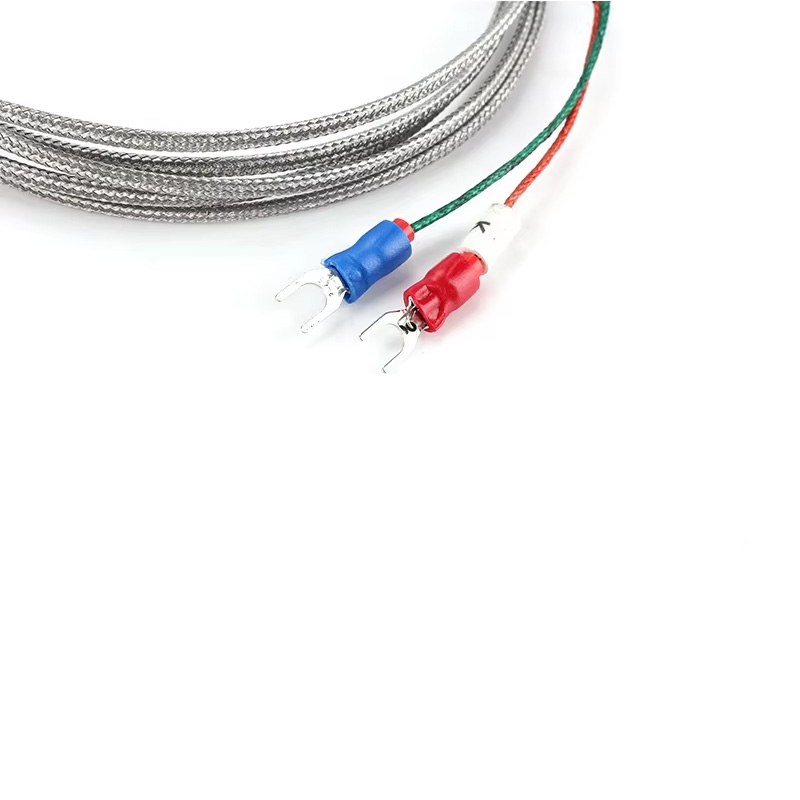

XIQI Electric CG-WRNT-03 K-Type Thermocouple Sensor - M8 Thread, 5x100mm Probe, 2m Cable, 0-600°C - Image 2

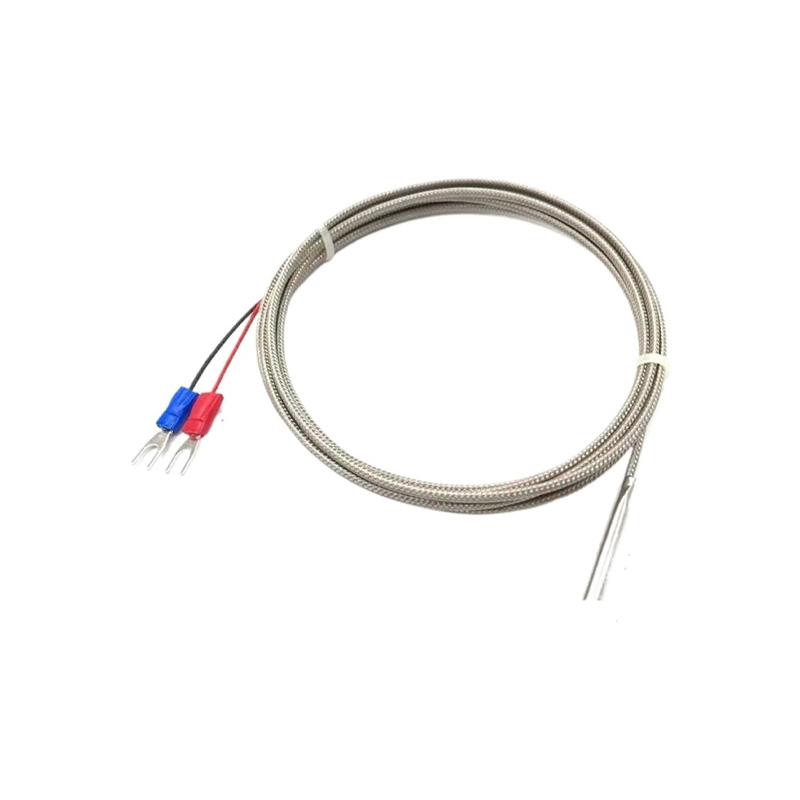

XIQI Electric CG-WRNT-03 K-Type Thermocouple Sensor - M8 Thread, 5x100mm Probe, 2m Cable, 0-600°C - Image 3
SKU: SENS-3711
📋 GST Invoice Available

XIQI Electric CG-WRNT-03 K-Type Thermocouple Sensor - M8 Thread, 5x100mm Probe, 2m Cable, 0-600°C

₹249.00 (Inclusive of all taxes)
Out of Stock

The XIQI Electric CG-WRNT-03 is a K-type thermocouple temperature sensor featuring an M8-threaded stainless steel probe for industrial-grade temperature monitoring up to 600°C. With a 2-meter cable, it is designed for direct integration into ovens, furnaces, and process control systems requiring reliable and accurate thermal feedback.

Features

  • K-Type thermocouple with a measurement range of 0°C to 600°C.
  • M8-threaded stainless steel probe (5mm diameter x 100mm length) for secure mounting.
  • High accuracy of ±1.5°C for precise process temperature control.
  • Includes a 2-meter high-temperature cable for flexible installation.
  • Rugged construction suitable for industrial ovens, furnaces, and kilns.

Out of stock

Description

The CG-WRNT-03 is a robust, industrial-grade temperature sensor utilizing a Type K thermocouple element. The thermocouple principle generates a millivolt-level voltage proportional to the temperature difference between the probe tip and the reference junction, providing a reliable and widely compatible signal for controllers and data acquisition systems.

Housed in a stainless steel sheath with an M8 threaded mount, the sensor is designed for direct installation into process equipment. Its 2-meter high-temperature compensated cable allows for flexible routing away from heat sources to protect connected instrumentation. This sensor is engineered for durability and stable performance in demanding thermal environments.

Key Features

  • K-Type (Chromel-Alumel) thermocouple junction for broad temperature sensing.
  • Stainless steel probe sheath ensures corrosion resistance and mechanical durability.
  • M8 threaded mounting provides a secure, vibration-resistant installation.
  • ±1.5°C standard accuracy enables precise thermal monitoring and control.
  • 2-meter high-temperature extension cable included for immediate connection.
  • Optimized performance-to-cost ratio for industrial process applications.

Applications

  • Industrial oven and furnace temperature monitoring and control.
  • Kiln and heat treatment process profiling and safety interlocks.
  • Food processing and packaging equipment thermal regulation.
  • Plastic extrusion and molding machine barrel temperature sensing.
  • Laboratory and test chamber temperature validation and logging.

Technical Specifications

Model NumberCG-WRNT-03
Sensor TypeK-Type Thermocouple
Temperature Range0°C to 600°C
Accuracy±1.5°C
Probe MaterialStainless Steel
Probe Dimensions5 mm Diameter x 100 mm Length
Mounting ThreadM8
Cable Length2 meters
Operating PrincipleThermoelectric (Seebeck Effect)

Frequently Asked Questions

What type of connector or output does this thermocouple sensor have?

This sensor is supplied with 2 meters of bare, high-temperature thermocouple extension wire. The wire ends are typically stripped and must be connected directly to a compatible thermocouple input on a temperature controller, PLC, or data logger using appropriate screw terminals or a mini thermocouple connector.

What is the maximum temperature this sensor can measure?

The CG-WRNT-03 is rated for continuous operation from 0°C up to 600°C. Exceeding this temperature range may damage the thermocouple junction and insulation, leading to measurement error or sensor failure. For applications near the upper limit, ensure the installation environment matches the probe material's specifications.

How do I install the M8-threaded probe?

The probe features a standard M8 x 1.25 mm metric thread. Drill and tap an M8 hole at the desired measurement point in your equipment. Apply high-temperature thread sealant if needed for pressure or vacuum sealing, then screw the probe in until the tip is properly positioned within the thermal zone. Avoid over-tightening to prevent damage to the threads.

Package Includes

  • 1 x CG-WRNT-03 K-Type Thermocouple Sensor (M8 Thread, 5x100mm Probe)
  • 1 x 2-meter High-Temperature Extension Cable

Additional Information

Weight 0.05 kg
Dimensions 10 × 7 × 1 cm
