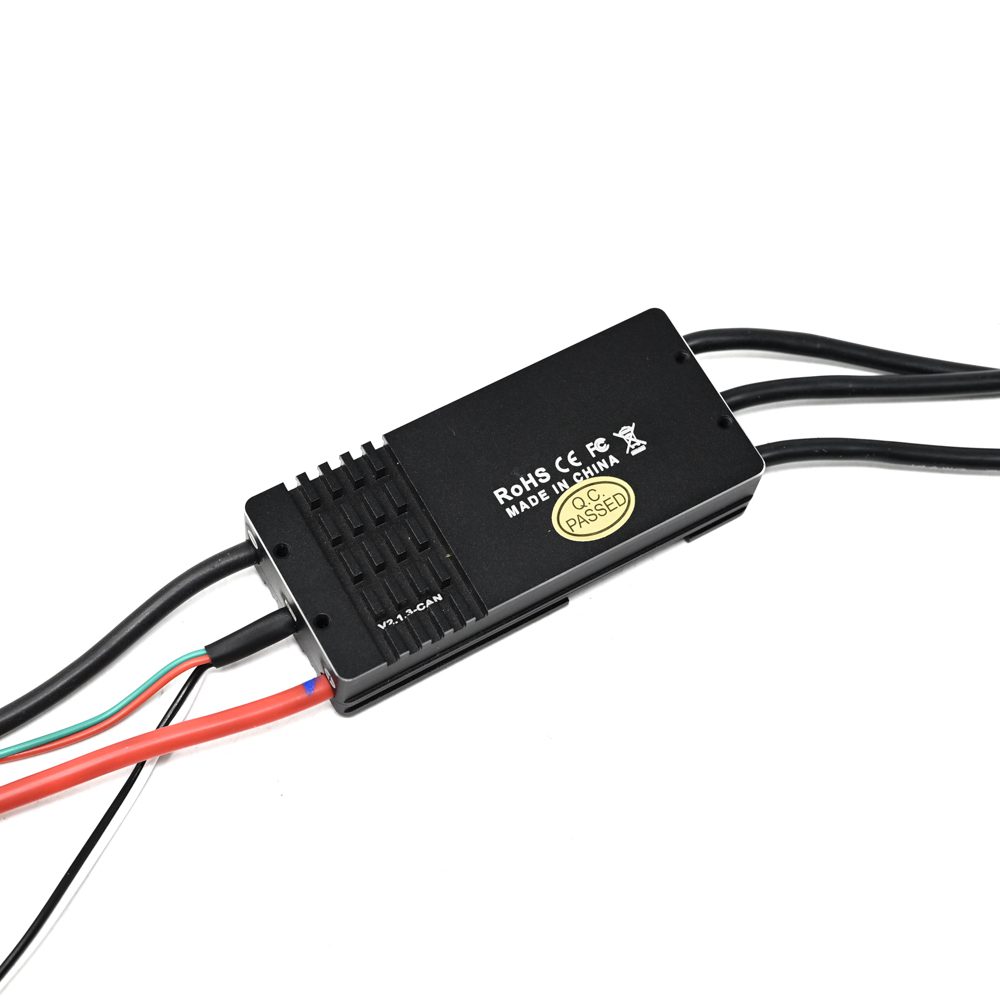

XC ESC ESC 40A 5-14S LiPo Brushless DC Motor Speed Controller

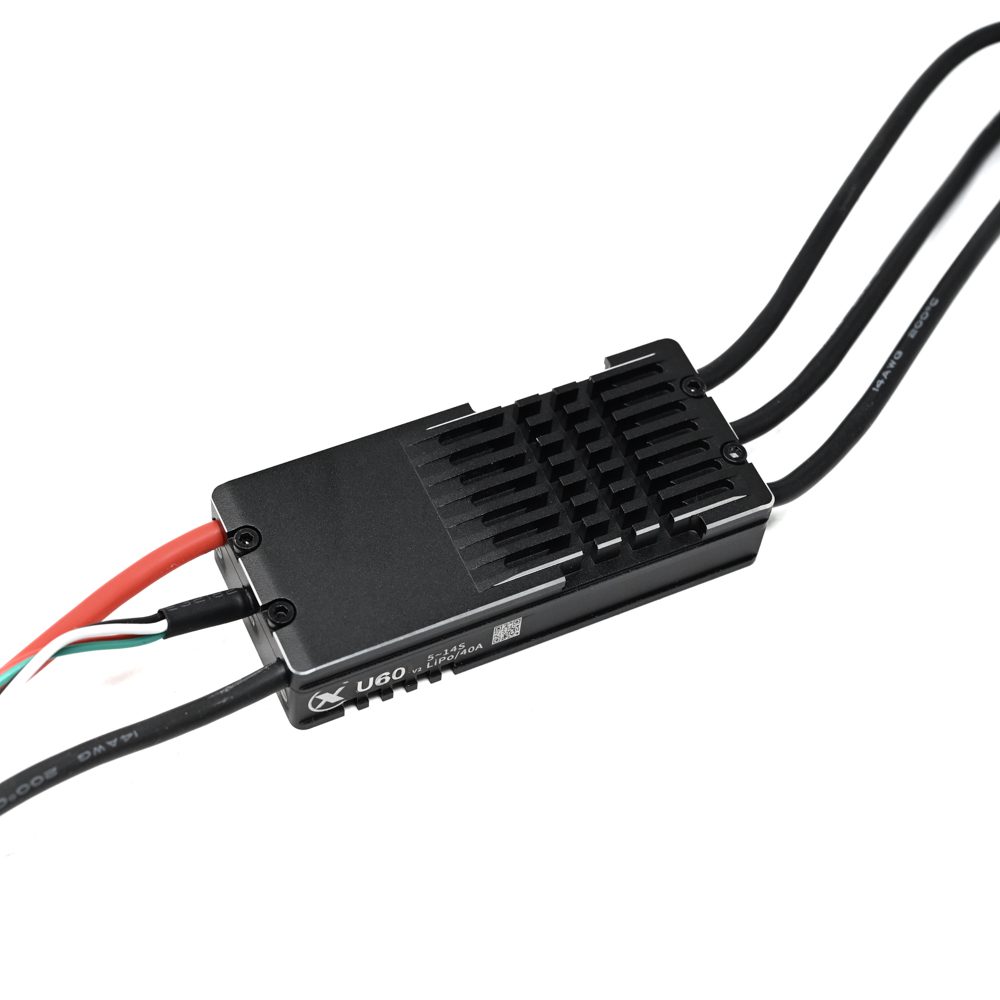

XC ESC ESC 40A 5-14S LiPo Brushless DC Motor Speed Controller - Image 2

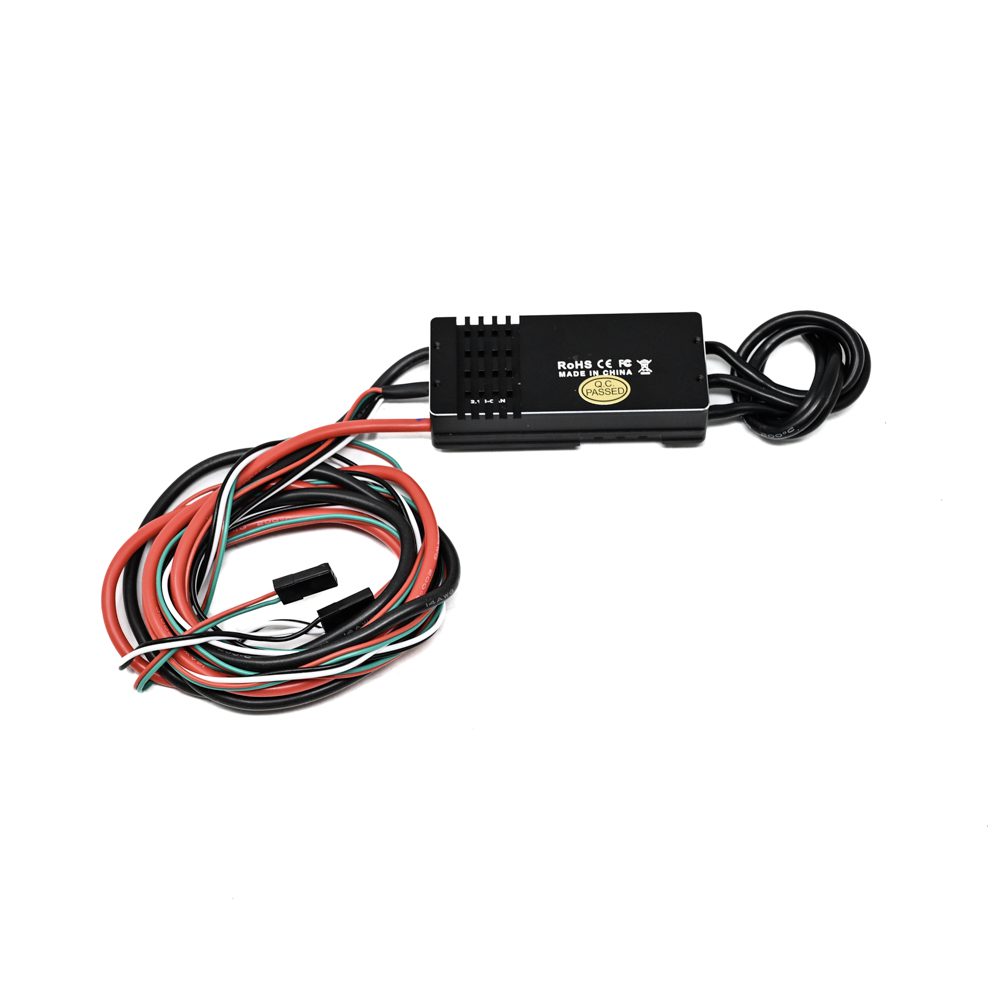

XC ESC ESC 40A 5-14S LiPo Brushless DC Motor Speed Controller - Image 3
SKU: DRFC-0055
📋 GST Invoice Available

XC ESC ESC 40A 5-14S LiPo Brushless DC Motor Speed Controller

₹8,609.00 (Inclusive of all taxes)
Out of Stock

The XC ESC ESC is a robust 40A continuous (80A instantaneous) brushless DC motor speed controller designed for 5-14S LiPo battery systems. Offering IPX4 water resistance and wide temperature operation, it ensures reliable power delivery for demanding drone and UAV applications.

Features

  • Delivers 40A continuous (80A instantaneous) current for powerful brushless motors.
  • Supports a wide input voltage range from 5S to 14S LiPo batteries.
  • Features IPX4 protection for reliable operation in challenging environments.
  • Compatible with 3.3V/5V PWM throttle signals (1050us-1940us).

Out of stock

Description

The XC ESC ESC is engineered as a high-performance brushless DC motor speed controller, specifically designed for demanding UAV and industrial drone applications. It supports a broad 5-14S LiPo battery range, providing substantial power with a continuous current rating of 40A and an instantaneous peak of 80A, ensuring stable operation under optimal cooling conditions.

This ESC offers versatile integration with a throttle pulse width range of 1050us to 1940us, compatible with both 3.3V and 5V input signals. Its robust construction and thermal management allow for efficient and reliable control of brushless motors across various aerial platforms.

Key Features

  • **Robust Power Delivery:** Handles 40A continuous current, with instantaneous peaks up to 80A, suitable for high-power motor demands.
  • **Wide Voltage Compatibility:** Designed to operate efficiently with 5S to 14S LiPo battery configurations.
  • **Environmental Resilience:** Boasts an IPX4 protection rating, offering resistance against water splashes and dust ingress.
  • **Broad Temperature Range:** Capable of stable performance in extreme conditions, from -25°C to 60°C.
  • **Versatile Signal Input:** Supports 3.3V and 5V PWM input signals within a 1050us to 1940us throttle pulse width.
  • **Durable Construction:** Equipped with 14AWG power and motor lines for enhanced longevity and current handling.
  • **Compact and Lightweight Design:** At approximately 42.5g, it is optimized for space-constrained and weight-sensitive builds.

Applications

  • Heavy-lift and industrial UAVs requiring high power output.
  • Agricultural spraying drones and long-endurance inspection platforms.
  • Custom large-scale multirotor projects and autonomous cargo delivery.
  • Fixed-wing aircraft and other high-voltage robotic systems.

Technical Specifications

TypeBrushless DC (BLDC) Motor Controller
Continuous Current40A (under good cooling conditions)
Instantaneous Current80A
Input Voltage5~14S LiPo
BECNone
PWM Input Signal Voltage3.3V / 5V (compatible)
Throttle Pulse Width1050us - 1940us
Weight≈ 42.5g (excluding wires)
Power/Motor Lines14AWG
Protective GradeIPX4 (water and dust resistant)
Working Temperature-25°C to 60°C

Frequently Asked Questions

What is the maximum voltage and current supported by the XC ESC ESC?

The XC ESC ESC supports a wide input voltage range from 5S to 14S LiPo batteries, making it suitable for high-voltage setups. It is rated for 40A continuous current and can handle instantaneous peaks up to 80A under optimal cooling, ensuring robust performance for demanding brushless motor applications.

What are the environmental protection features of this ESC?

This speed controller boasts an IPX4 protective grade, providing resistance against water splashes and dust ingress. This robust design feature allows the ESC to maintain reliable operation in various challenging outdoor environments, ranging from -25°C to 60°C, making it ideal for industrial or agricultural drone use.

How does the XC ESC ESC integrate with flight control systems?

The XC ESC ESC is designed for versatile integration, accepting PWM input signals compatible with both 3.3V and 5V systems. Its throttle pulse width range of 1050us to 1940us ensures broad compatibility with standard flight controllers and radio receivers, enabling precise motor speed control in diverse UAV configurations.

Can this ESC be used with 6S LiPo batteries, given it's a "12s" product?

The XC ESC ESC is specified to operate within a 5-14S LiPo input voltage range. While the product title mentions "12S," its actual operational compatibility extends from a minimum of 5S up to a maximum of 14S, providing flexibility for various battery configurations, including 6S systems, for demanding drone applications.

Package Includes

  • 1 x XC ESC ESC 40A Brushless DC Motor Electric Speed Controller

Additional Information

Dimensions 7.02 × 3.1 × 1.6 cm
