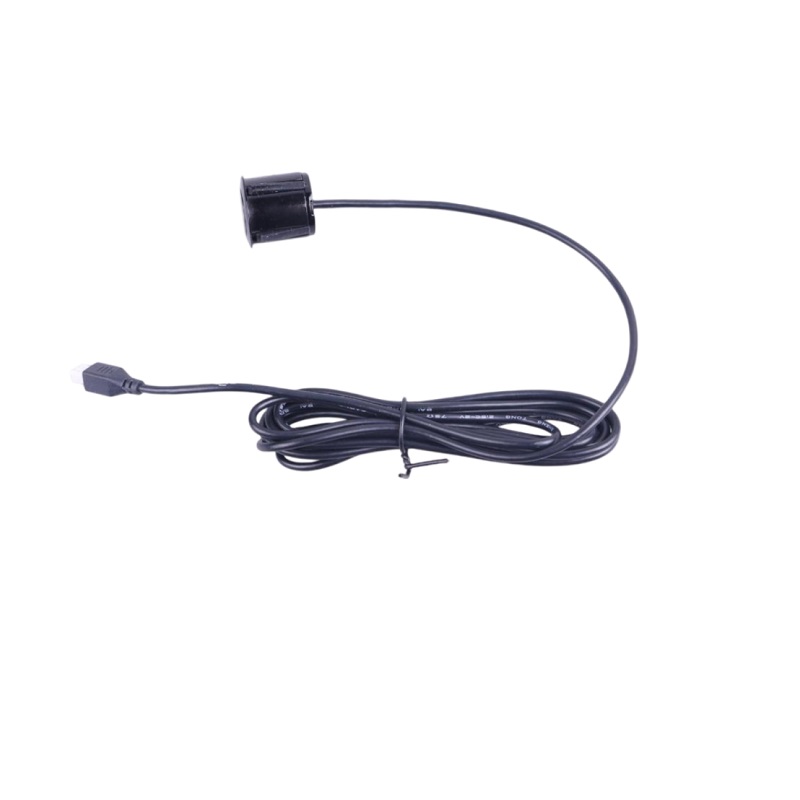

INGHAI GU16D01L01-A27 40kHz Integrated Transmitter & Receiver Ultrasonic Sensor
The INGHAI GU16D01L01-A27 is a 40kHz integrated ultrasonic transmitter and receiver module designed for plugin operation. This compact sensor is suitable for integration into distance measurement, object detection, and level sensing systems requiring a dedicated acoustic transducer pair.
Features
- Integrated 40kHz ultrasonic transmitter and receiver in a single plugin module.
- Wide operating temperature range from -40°C to +80°C for robust environmental performance.
- High voltage rating of 140V for driving the piezoelectric element.
- Compact form factor with ROHS-compliant construction.
- Ideal for custom ultrasonic ranging, proximity, and non-contact detection applications.
Out of stock
The GU16D01L01-A27 is a dedicated ultrasonic transducer module combining both transmitter and receiver elements tuned to a 40kHz resonant frequency. It operates on the piezoelectric principle, where an applied voltage generates mechanical vibrations to emit sound waves, and returning echoes generate a measurable electrical signal. This integrated design simplifies system assembly for time-of-flight (ToF) distance measurement circuits.
Engineered for durability, the module functions reliably across a broad industrial temperature span from -40°C to +80°C. Its 140V voltage rating indicates it is designed for high-voltage drive pulses, typical for maximizing acoustic output power and sensitivity in demanding sensing environments. The plugin form factor facilitates secure mounting and connection within larger electronic assemblies.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
