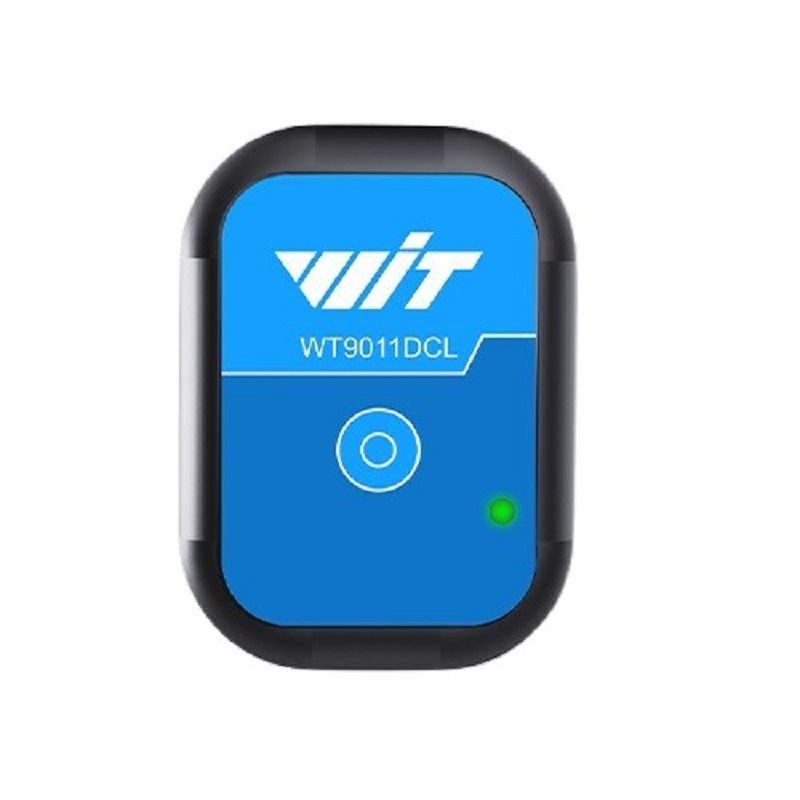

WTMotion WT9011DCL 9-Axis BLE Magnetometer Gyroscope IMU Module - USB-C Charging & SD Card Logging
The WTMotion WT9011DCL is a high-precision 9-axis IMU module integrating a 3-axis accelerometer, gyroscope, and magnetometer with Bluetooth Low Energy (BLE) and UART interfaces. It provides real-time quaternion, Euler angle, and motion data at up to 200Hz for robotics, UAVs, and industrial motion analysis, powered by a built-in rechargeable battery.
Features
- High-precision 9-axis IMU with 0.2° attitude accuracy and Kalman filtering.
- Dual BLE and UART communication interfaces for flexible system integration.
- Built-in 200mAh rechargeable Li-ion battery and onboard SD card for standalone data logging.
- Configurable accelerometer (±2g to ±16g) and gyroscope (±2000°/s) ranges.
- Robust operating temperature range from -40°C to +85°C with 20,000g shock resistance.
Out of stock
The WTMotion WT9011DCL 9-Axis IMU Sensor Module is engineered for demanding motion tracking and orientation sensing applications. It combines a MEMS-based 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer, processed by an advanced onboard processor with a Kalman filtering algorithm. This integration provides stable, drift-compensated real-time data including quaternions, Euler angles, acceleration, angular velocity, and magnetic field vectors, making it suitable for dynamic and long-term operation.
The module supports flexible integration via Bluetooth Low Energy for wireless connectivity or a UART serial interface for direct wired communication with microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi. Its built-in rechargeable battery and SD card slot enable completely standalone operation and data recording, ideal for field deployments and mobile platforms where continuous power is not available.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 8 × 7 × 2 cm |
