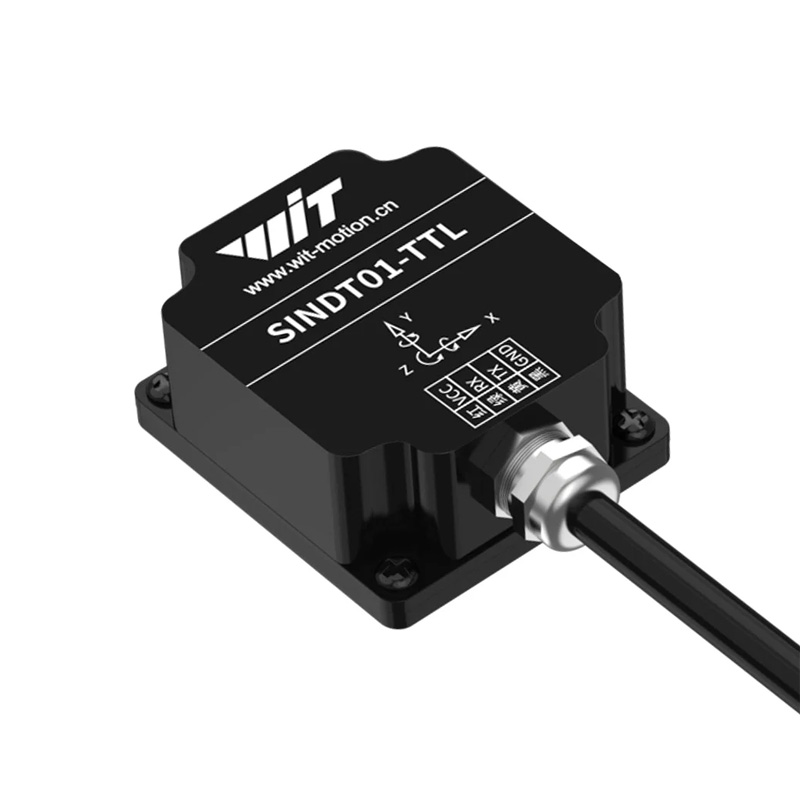

WTMotion SINDT01-TLT Single-Axis AHRS Tilt Sensor ±180° Range, 0.1° Accuracy, TTL Output, 5-36V, IP67
The WTMotion SINDT01-TTL is a high-precision single-axis AHRS tilt sensor delivering ±180° measurement with 0.1° accuracy via TTL serial output. Operating from a wide 5-36V DC supply, its IP67-rated housing ensures reliable performance in harsh industrial, robotic, and mobile platform applications.
Features
- High-precision single-axis tilt measurement with ±180° range and 0.1° accuracy.
- TTL serial output for direct integration with microcontrollers (Arduino, Raspberry Pi, PLCs).
- Wide operating voltage range from 5V to 36V DC for flexible system powering.
- Robust IP67-rated housing for waterproof and dustproof operation in harsh environments.
- Integrated accelerometer and gyroscope with Kalman filtering for stable, noise-reduced angle data.
Out of stock
The WTMotion SINDT01-TTL is an Attitude and Heading Reference System (AHRS) sensor engineered for precise single-axis inclination measurement. It combines a MEMS accelerometer and gyroscope with advanced onboard Kalman filtering and digital noise reduction algorithms to deliver stable, accurate Euler angle data, even in dynamic or vibrating conditions.
Designed for industrial durability, the sensor features a sealed IP67 enclosure capable of withstanding dust, water ingress, and operating temperatures from -40°C to +85°C. Its wide 5-36V DC input range simplifies integration into 12V or 24V vehicle systems, AGVs, UAVs, and industrial machinery without requiring additional voltage regulation.
Additional Information
| Weight | 0.144 kg |
|---|---|
| Dimensions | 4 × 3.5 × 1.5 cm |
