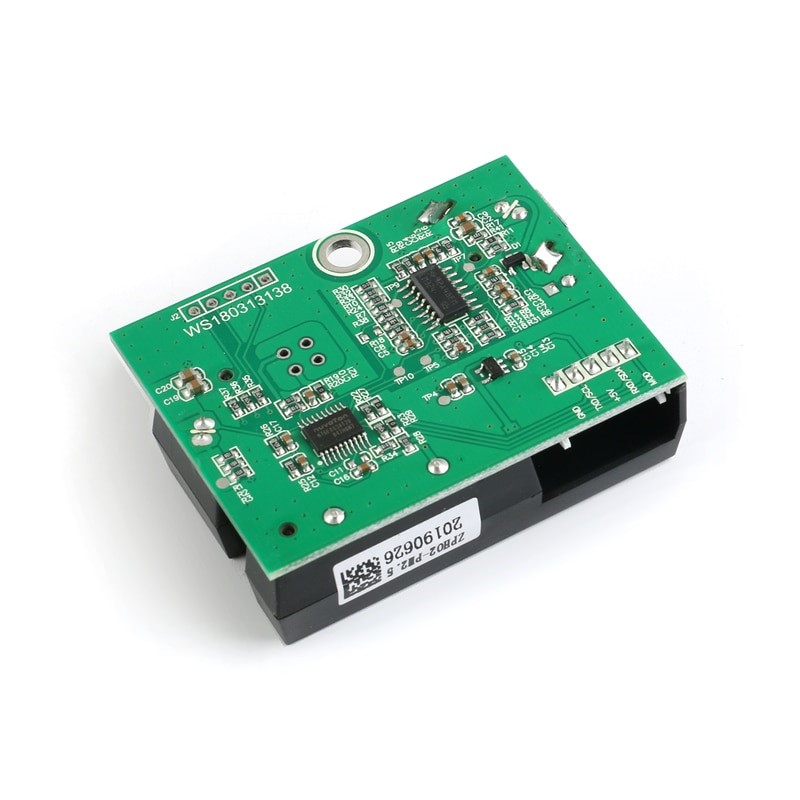

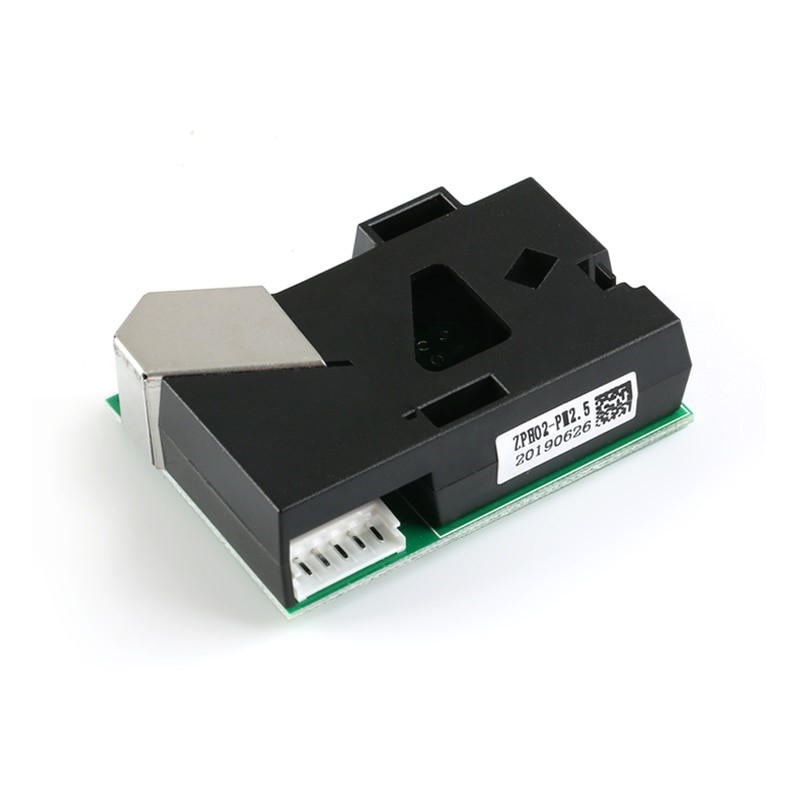

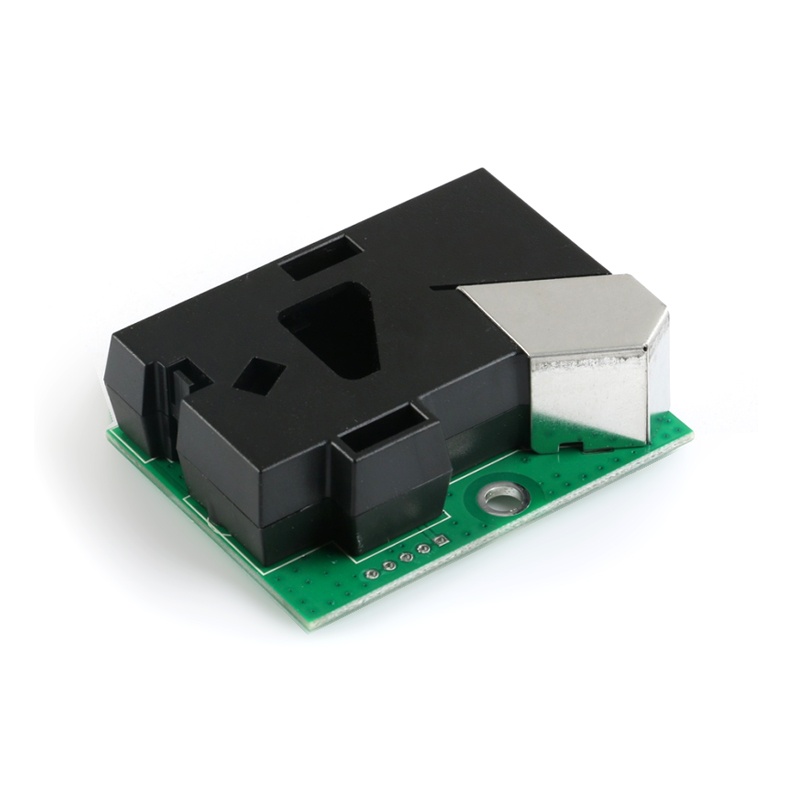

Winsen ZPH02 PM2.5 Particle Sensor - Infrared Counting, 5V DC, EH2.54-5P Interface
The Winsen ZPH02 is a compact infrared Particle sensor designed for PM2.5 detection, compatible with 5V microcontroller systems like Arduino and Raspberry Pi. It utilizes Particle counting technology to measure airborne particulates with a diameter ≥1μm, providing a direct voltage output for easy system integration.
Features
- Infrared Particle counting principle for PM2.5 detection.
- Detects particles with a diameter of 1μm and larger.
- Operates on a stable 5V DC supply with low current consumption.
- Factory calibrated for consistent sensitivity and performance.
- Compact form factor with standard EH2.54-5P connector for easy installation.
Out of stock
The Winsen ZPH02 sensor employs an infrared LED and photodetector to count airborne particles via light scattering. This method provides a reliable measurement of particulate matter concentration, specifically targeting PM2.5. The sensor includes internal signal conditioning to output a stable analog voltage proportional to Particle density.
Designed for continuous operation in indoor environments, the ZPH02 features a fast warm-up time and maintains stable performance across a specified temperature and humidity range. Its pre-aged and calibrated design ensures minimal unit-to-unit variation, making it suitable for integration into quality-controlled air monitoring systems.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 5.95 × 4.45 cm |
