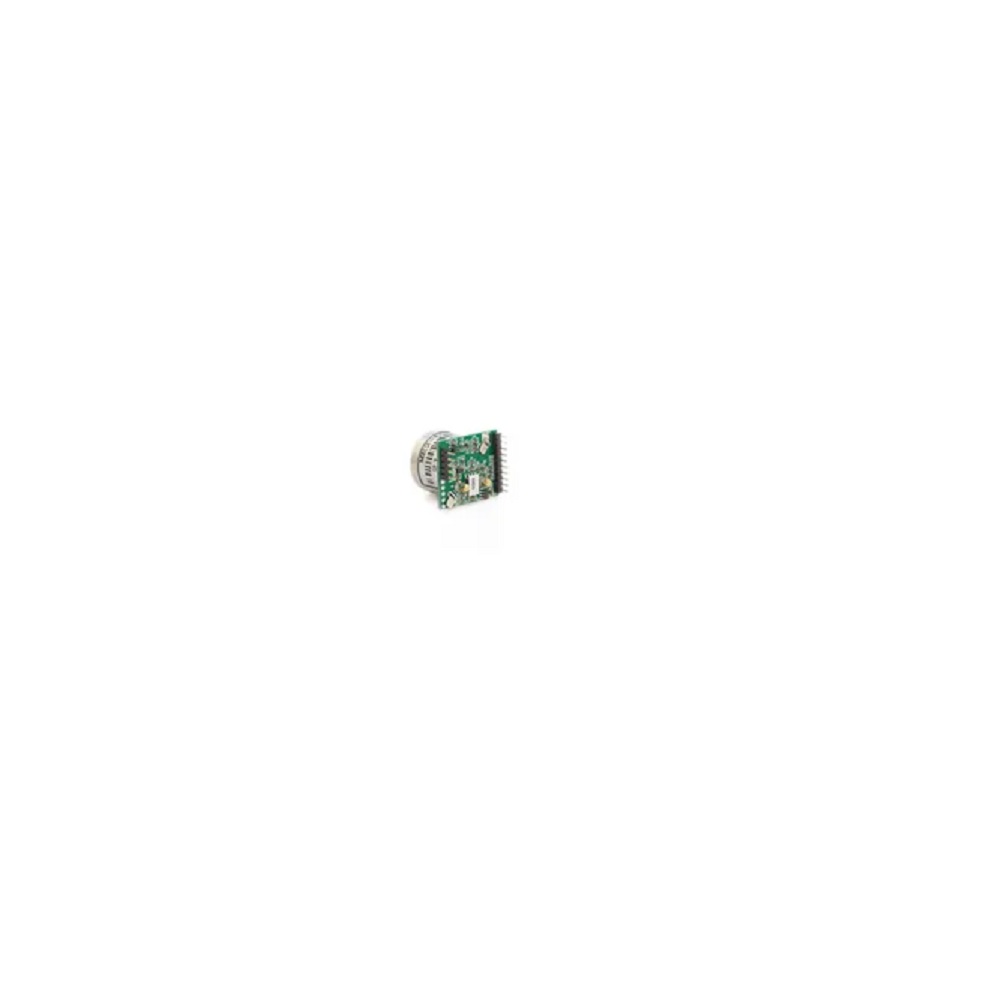

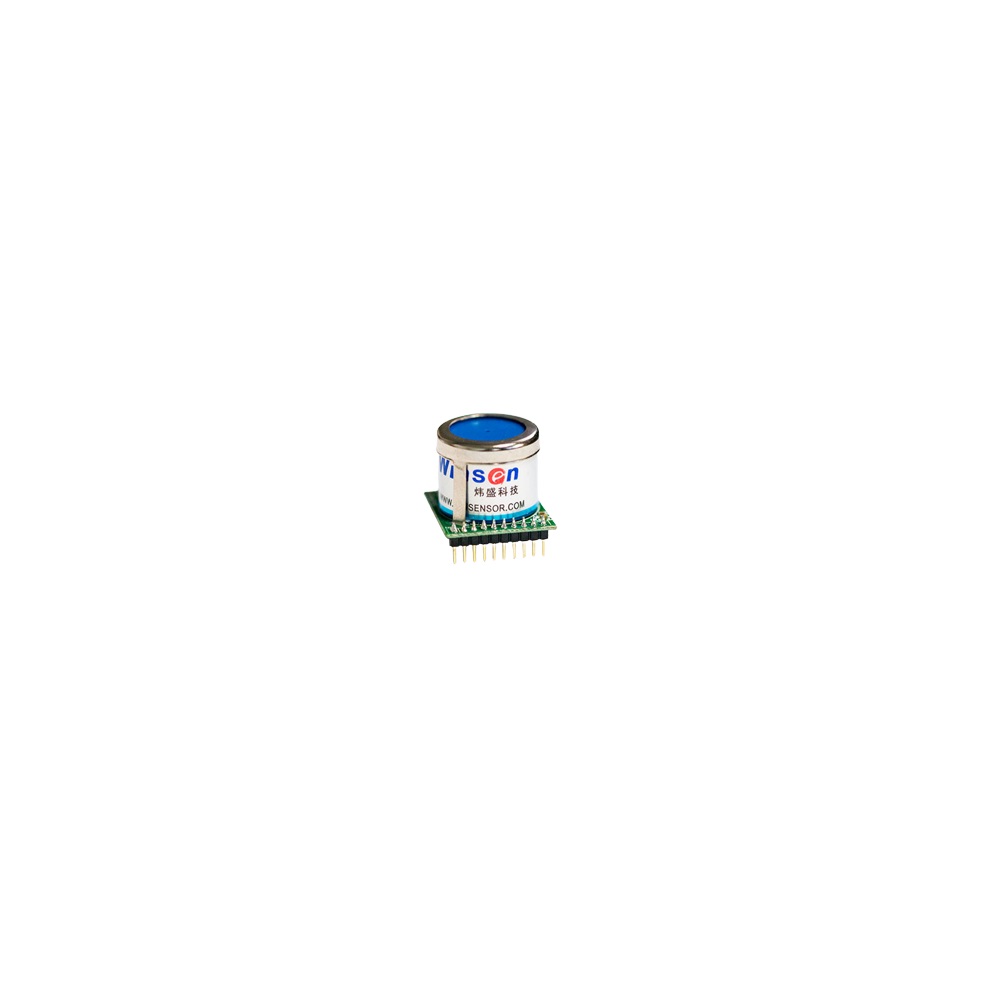

Winsen ZE15-CO Carbon Monoxide Sensor Module - UART & Analog Voltage Output
The Winsen ZE15-CO is a miniaturized electrochemical carbon monoxide sensor module offering both UART digital and analog voltage outputs for flexible integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs. It provides precise CO detection from 0 to 500 ppm with built-in temperature compensation.
Features
- Electrochemical CO sensing principle for high selectivity and stability
- Dual output: UART digital (0/3V logic) and analog voltage signal
- Wide operating voltage range from 5V to 12V DC
- Built-in temperature sensor for automatic compensation
- Fast response and recovery times (≤30 seconds T90)
Out of stock
The ZE15-CO module employs a mature electrochemical cell to detect carbon monoxide (CO) concentrations in ambient air, delivering high selectivity against common interfering gases like alcohol. Its sophisticated onboard signal conditioning circuitry provides a stable, linearized output, while the integrated temperature sensor ensures measurement accuracy across varying environmental conditions.
Designed for long-term reliability, the module features low power consumption and a typical operational lifespan of 3 to 5 years in air. Its compact form factor and dual-output interface (UART and analog voltage) make it suitable for integration into portable air quality monitors, smart home safety devices, and industrial gas detection systems requiring precise, real-time CO monitoring.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 7 × 3 cm |
