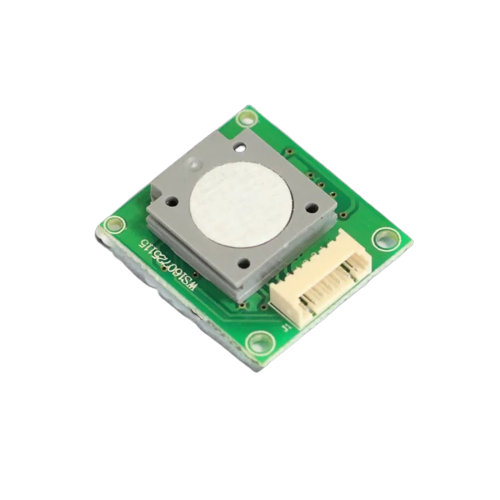

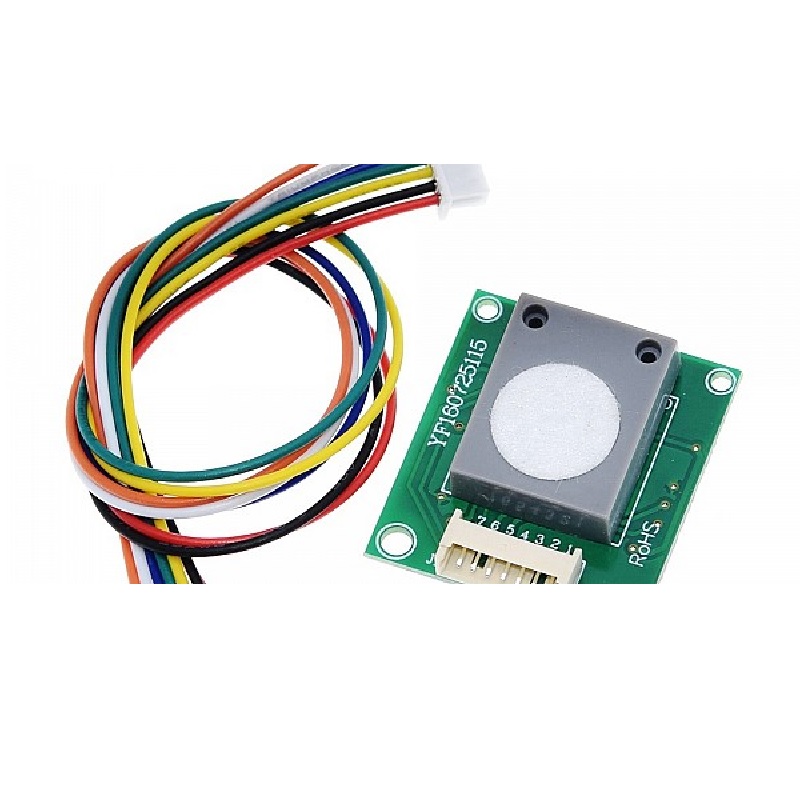

Winsen ZE08-CH2O Formaldehyde Gas Detection Module - UART/Analog/PWM Output
The Winsen ZE08-CH2O is a miniaturized electrochemical formaldehyde (CH2O) detection module offering digital UART, analog voltage, and PWM output for integration with Arduino, Raspberry Pi, and industrial air quality monitoring systems.
Features
- Electrochemical sensing principle for high selectivity and stability.
- Triple output options: UART serial, analog voltage, and PWM wave.
- Integrated temperature sensor for automatic temperature compensation.
- Low power consumption suitable for portable and battery-powered devices.
- Compact form factor for easy integration into various air monitoring systems.
Out of stock
The ZE08-CH2O module employs a mature electrochemical cell to specifically detect formaldehyde (CH2O) concentrations in ambient air. Its sophisticated signal conditioning circuitry ensures excellent linear output and strong anti-interference capabilities, providing reliable data for control and monitoring applications.
Designed for long-term operation, the module features a wide operating voltage range of 3.7V to 9V DC and includes built-in temperature compensation to maintain accuracy across its specified operating temperature range of 0 to 50°C. This makes it suitable for integration into smart home HVAC systems, portable detectors, and commercial air purification units.
Additional Information
| Weight | 0.013 kg |
|---|---|
| Dimensions | 7 × 6 × 1 cm |
