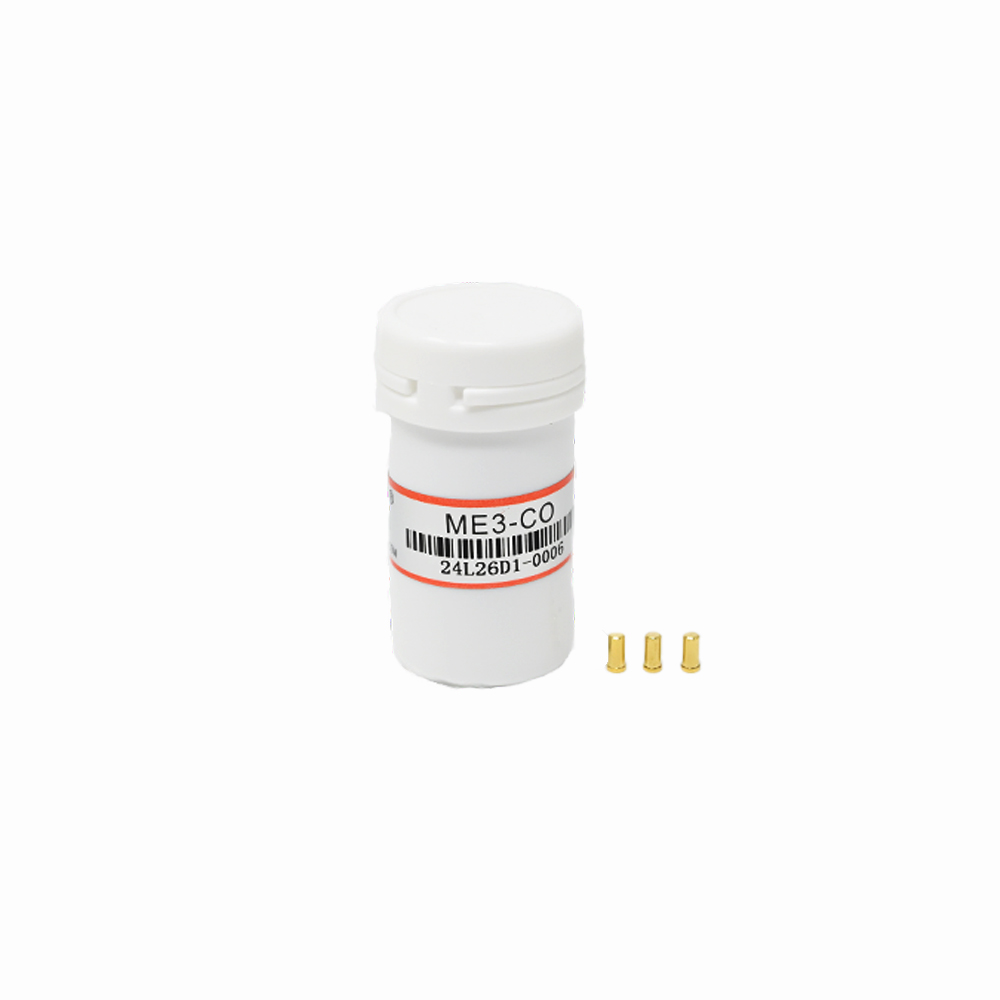

Winsen ME3-CO Electrochemical Carbon Monoxide Sensor - 0-1000ppm Range
The Winsen ME3-CO is an electrochemical carbon monoxide sensor designed for industrial and environmental monitoring applications. It provides a linear measurement range of 0-1000ppm CO with high sensitivity and stability, suitable for integration into gas detection systems, safety alarms, and air quality monitoring platforms.
Features
- Electrochemical sensing principle for precise CO detection from 0 to 1000 ppm.
- High sensitivity of (0.070±0.015)µA/ppm with a fast response time under 20 seconds (T90).
- Excellent long-term stability with less than 5% signal drift per month.
- Low power consumption design suitable for continuous monitoring applications.
- Wide operating pressure range of 90-110 kPa and robust environmental tolerance.
Out of stock
The ME3-CO sensor operates on a proven electrochemical fuel cell principle. Target gas molecules undergo an oxidation reaction at the working electrode within the sealed electrolytic cell, generating a current proportional to the gas concentration as per Faraday’s law. This analog current output provides a direct and linear measurement of ambient CO levels.
Engineered for reliability, the sensor features a 10Ω load resistance and demonstrates strong anti-interference characteristics, ensuring stable readings in complex industrial atmospheres. Its construction is optimized for long-term deployment in environmental protection and industrial safety systems, with specified storage conditions of -20°C to 50°C and 15-90% RH.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 6 × 5 × 2 cm |
