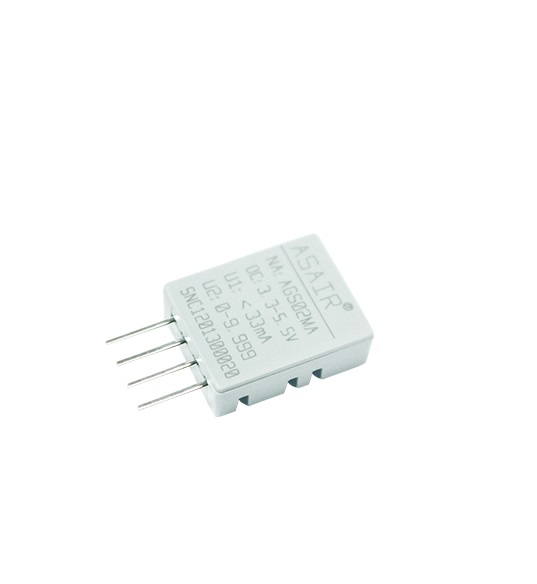

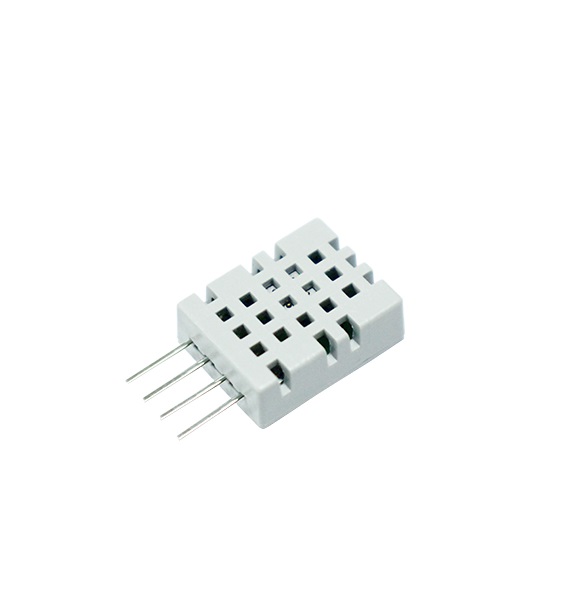

Asair AGS02MA MEMS TVOC Gas Sensor Module - Digital I2C Output
The Asair AGS02MA is a MEMS-based TVOC gas sensor module providing calibrated digital output via I2C interface, compatible with 3.3V and 5V microcontrollers like Arduino, Raspberry Pi, and ESP32 for indoor air quality monitoring.
Features
- MEMS semiconductor metal oxide sensor for Total Volatile Organic Compounds (TVOC) detection.
- Calibrated digital I2C signal output in ppb or µg/m³ units.
- Wide operating voltage range from 3.3V to 5.5V DC.
- Low power consumption with fast response and recovery times.
- Designed for high reliability and long-term stability in diverse environments.
Out of stock
The AGS02MA utilizes advanced MEMS and dedicated digital module acquisition technology to deliver precise TVOC concentration measurements. Its semiconductor metal oxide sensing element ensures high sensitivity to a broad range of volatile organic compounds, making it ideal for indoor air quality assessment.
The module features an integrated signal conditioning circuit that provides a fully calibrated digital output via I2C, simplifying integration with host systems. It operates reliably across a wide humidity range (0-95% RH non-condensing) and requires a brief preheat period for optimal performance.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 7 × 6 × 1 cm |
