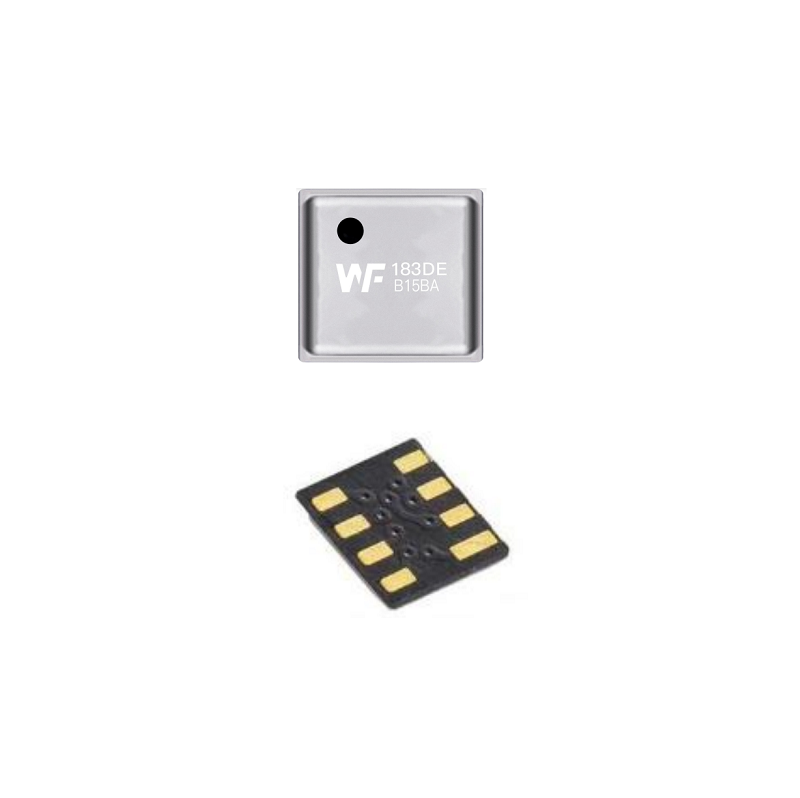

WFSensor WF183DE 15BA L8B Air Pressure & Temperature Sensor, 0~1500kPa, 2.4V~5.5V, 2uA, -40℃~+125℃

Name: WFSensor WF183DE 15BA L8B Air Pressure &amp; Temperature Sensor, 0~1500kPa, 2.4V~5.5V, 2uA, -40℃~+125℃
Brand: WFSensor
SKU: SENS-2079
Price: 119.00 INR
Availability: OutOfStock

₹119.00 (Inclusive of all taxes)

Out of Stock

The WFSensor WF183DE 15BA L8B is a high-precision MEMS piezoresistive sensor providing absolute air pressure and temperature measurement from 0 to 1500 kPa. Operating from 2.4V to 5.5V with an ultra-low 2µA standby current, it is engineered for battery-powered IoT, industrial monitoring, and HVAC systems requiring reliable, low-power sensing.

Features

High-range absolute pressure sensing from 0 to 1500 kPa
Ultra-low 2µA standby current for extended battery life
Wide operating temperature range from -40°C to +125°C
Compact LGA-8 package (3.8×3.6 mm) for space-constrained designs
Integrated temperature sensor for environmental compensation

Out of stock

Get Notified When Available

Description

The WF183DE 15BA L8B sensor utilizes a robust MEMS piezoresistive sensing element to deliver accurate absolute pressure readings across a broad 0-1500 kPa range. Its integrated temperature sensor enables precise thermal compensation, ensuring stable performance in demanding environments from -40°C to +125°C.

Designed for low-power applications, the sensor features a minimal 2µA standby current and operates from a 2.4V to 5.5V supply, making it ideal for IoT edge nodes, portable medical devices, and wireless industrial monitors. The analog voltage output provides a straightforward interface for microcontrollers and data acquisition systems.

Key Features

MEMS piezoresistive technology for high accuracy and stability
Absolute pressure measurement with integrated temperature sensing
Extremely low power consumption ideal for battery-operated devices
Wide supply voltage range compatible with 3.3V and 5V logic systems
Robust LGA-8 surface-mount package for reliable PCB integration
Broad operating temperature range suitable for harsh industrial and outdoor environments
High-value build optimized for performance-to-cost ratio in volume applications

Applications

Industrial process monitoring and control for pneumatic systems
Battery-powered IoT environmental and altitude sensing nodes
HVAC system pressure and airflow monitoring and diagnostics
Portable medical devices for barometric pressure compensation
Consumer electronics for weather station and altimeter integration

Technical Specifications

Manufacturer Part Number	WF183DE 15BA L8B T&R
Pressure Type	Absolute
Pressure Range	0 to 1500 kPa
Sensor Type	MEMS piezoresistive air pressure and temperature sensor
Output Type	Analog Voltage
Supply Voltage	2.4 V to 5.5 V
Standby Current	2 µA
Operating Temperature	-40°C to +125°C
Package / Case	LGA-8 (3.8 x 3.6 mm)
Weight	0.008 kg

Frequently Asked Questions

What is the output signal type of the WF183DE sensor?

The WF183DE provides an analog voltage output proportional to the measured absolute pressure. This output can be directly interfaced with the ADC input of a microcontroller, such as an Arduino, Raspberry Pi, or industrial PLC, for straightforward data acquisition without requiring complex digital communication protocols.

What is the purpose of the integrated temperature sensor?

The integrated temperature sensor provides thermal compensation for the pressure readings, ensuring accuracy across the full -40°C to +125°C operating range. This feature is critical for applications exposed to wide temperature swings, such as outdoor environmental monitoring or industrial processes, where uncompensated thermal drift would lead to measurement errors.

How do I power this sensor for a battery-operated project?

The sensor is ideal for battery projects due to its wide 2.4V to 5.5V supply range and ultra-low 2µA standby current. You can power it directly from a 3.3V regulator, a single Li-ion cell (nominal 3.7V), or two AA batteries. Ensure your power supply is stable and free of noise to guarantee accurate analog readings.
