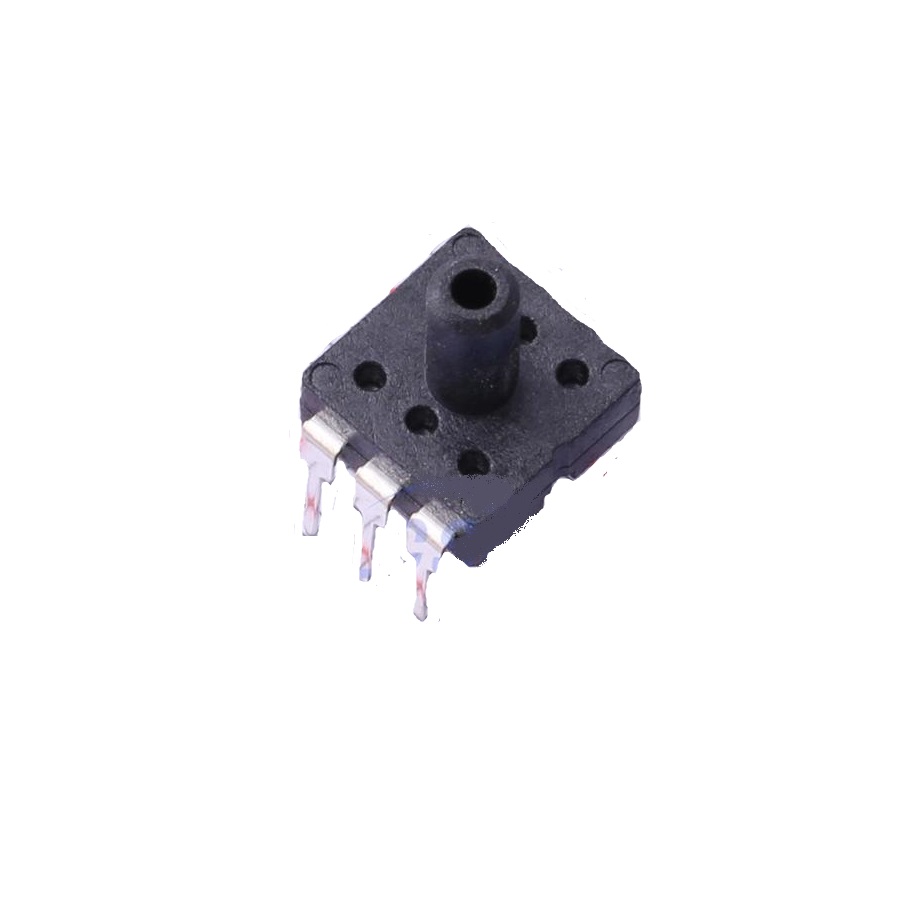

WFSensor WF100SPZ 2BG D6 AT Pressure Sensor, DIP-6, 0-200 kPa Gauge, Analog Voltage Output
The WFSensor WF100SPZ 2BG D6 AT is a MEMS piezoresistive gauge pressure sensor in a DIP-6 package, delivering an analog voltage output proportional to applied pressure from 0 to 200 kPa. It operates from a 5V DC supply and is designed for integration into consumer electronics, HVAC systems, medical devices, and industrial IoT monitoring applications.
Features
- MEMS Piezoresistive Gauge Pressure Sensor with 0-200 kPa range
- Analog Voltage Output for direct ADC interfacing (Arduino, Raspberry Pi, PLCs)
- 5V DC Supply Voltage, compatible with standard logic levels
- DIP-6 through-hole package for easy PCB mounting
- Wide operating temperature range from -40°C to +125°C
Out of stock
The WF100SPZ 2BG D6 AT utilizes a MEMS piezoresistive sensing element to provide precise gauge pressure measurements. Changes in applied pressure cause a proportional shift in the internal Wheatstone bridge resistance, which is conditioned to deliver a stable analog voltage signal. This design ensures reliable performance across its full specified temperature range.
Housed in a robust DIP-6 package, the sensor is suitable for printed circuit board integration in various electronic systems. Its gauge pressure measurement references ambient atmospheric pressure, making it ideal for monitoring pressure differentials in closed systems, airflow in ducts, or fluid levels in non-corrosive media.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
