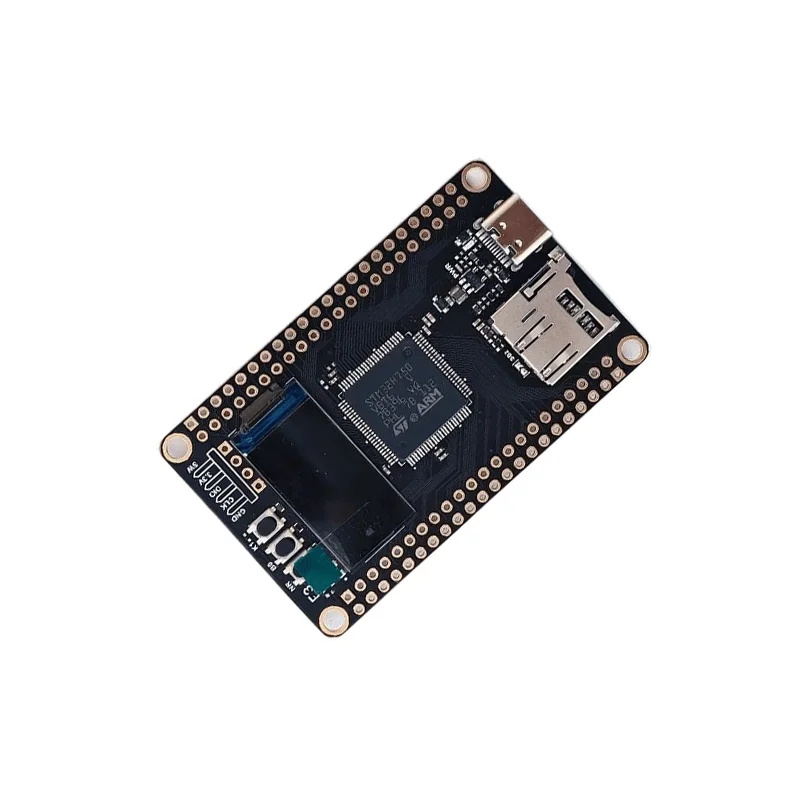

WeAct Studio STM32H750VBT6-LCD Demo Board
WeAct Studio STM32H750VBT6-LCD Demo Board - Image 2
WeAct Studio STM32H750VBT6-LCD Demo Board - Image 3
SKU: IOWC-1260
📋 GST Invoice Available

WeAct Studio STM32H750VBT6-LCD Demo Board

₹1,869.00 (Inclusive of all taxes)
Out of Stock

The WeAct Studio STM32H750VBT6-LCD Demo Board is a high-performance ARM Cortex-M7 development platform featuring a 480MHz STM32H750VBT6 microcontroller, 1MB RAM, and 16MB of combined SPI/QSPI Flash for demanding embedded applications.

Features

  • High-performance STM32H750VBT6 MCU with ARM Cortex-M7 core running at 480MHz.
  • Includes 8MB SPI Flash and 8MB QSPI Flash for ample code and data storage.
  • Robust four-layer PCB design with gold-plated TG155 heat sink for durability.
  • Features a DCMI camera interface supporting auto-focus for computer vision projects.
  • Compatible with C programming environments and OpenMV4 development framework.

Out of stock

Description

This development board centers on the STM32H750VBT6, an ARM Cortex-M7 microcontroller delivering 480MHz of processing power with integrated FPU and DSP instructions for complex signal processing and control algorithms. Its architecture includes a Memory Protection Unit (MPU) for enhanced system security and reliability in industrial-grade applications.

The board’s physical design utilizes a four-layer PCB and a lead-free soldering process, ensuring signal integrity and long-term durability. It provides flexible boot configuration via onboard buttons and includes ESD protection on critical interfaces. With its dedicated DCMI parallel camera interface, it serves as a capable platform for embedded machine vision and AIoT edge computing tasks.

Key Features

  • 480MHz ARM Cortex-M7 core with single/double-precision FPU for high-speed computation.
  • Complete DSP instruction set and Memory Protection Unit (MPU) for secure, real-time processing.
  • Dedicated 8MB QSPI Flash for XIP (execute-in-place) and 8MB SPI Flash for data storage.
  • DCMI (Digital Camera Interface) with auto-focus support for integrating camera modules.
  • Four-layer PCB with gold-plated TG155 thermal pad for effective heat dissipation.
  • Lead-free soldering and ESD protection circuits enhance board longevity and robustness.
  • Boot mode selection via physical buttons for flexible firmware development and recovery.

Applications

  • High-performance embedded control systems and industrial automation.
  • Edge AI and computer vision applications using the DCMI camera interface.
  • Digital signal processing (DSP) and real-time audio processing projects.
  • Prototyping for IoT gateways requiring substantial local processing and storage.
  • Educational platform for advanced microcontroller and RTOS development.

Technical Specifications

Microcontroller/SoCSTM32H750VBT6
Core ArchitectureARM Cortex-M7 with FPU
Clock Speed480 MHz
Internal ROM128 KB
Internal RAM1 MB
External Flash8MB SPI Flash, 8MB QSPI Flash
Key InterfaceDCMI Camera Interface
Special FeaturesDSP Instructions, Memory Protection Unit (MPU)
PCB ConstructionFour-layer, TG155 Gold Sink Plate
Development CompatibilityC, OpenMV4

Frequently Asked Questions

What development environments are compatible with this STM32H750VBT6 board?

The board is fully compatible with the STM32CubeIDE and STM32CubeMX ecosystem from STMicroelectronics. You can also program it using the Arduino IDE with the STM32duino core or the PlatformIO extension. For computer vision, it supports the OpenMV4 IDE, allowing you to write MicroPython scripts that leverage the DCMI interface and the Cortex-M7's DSP capabilities for image processing.

How do I connect a camera module to the board's DCMI interface?

The board features a dedicated DCMI parallel camera interface. You will need a compatible camera module with a matching FPC connector or pinout. Connect the camera's data lines (D0-D7), pixel clock (PIXCLK), horizontal/vertical sync (HSYNC, VSYNC), and power according to the board's schematic. The interface supports auto-focus functionality, which can be controlled via the provided I2C or GPIO pins as defined in your firmware and the camera module's datasheet.

What is the purpose of the 8MB QSPI Flash versus the 8MB SPI Flash?

The 8MB QSPI (Quad-SPI) Flash memory supports Execute-In-Place (XIP), allowing the MCU to run code directly from this external memory, effectively expanding your program storage beyond the internal 128KB ROM. The separate 8MB SPI Flash is typically used for general data storage, such as file systems, graphics assets, or sensor logs. This dual-flash configuration separates executable code from data for optimized performance and management.

Package Includes

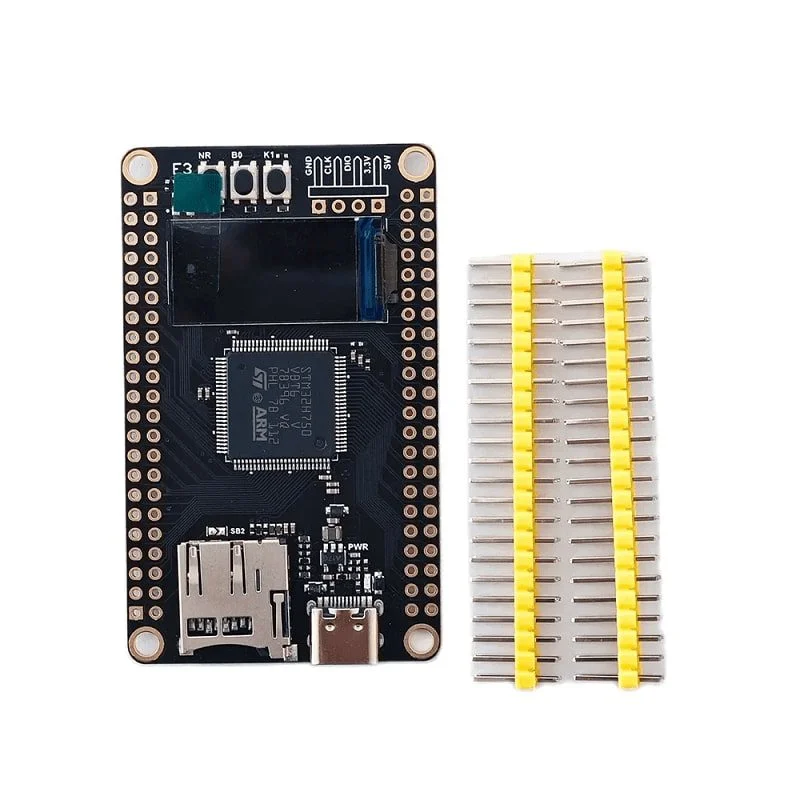

  • 1 x WeAct Studio STM32H750VBT6-LCD Demo Board

Additional Information

Weight 0.036 kg

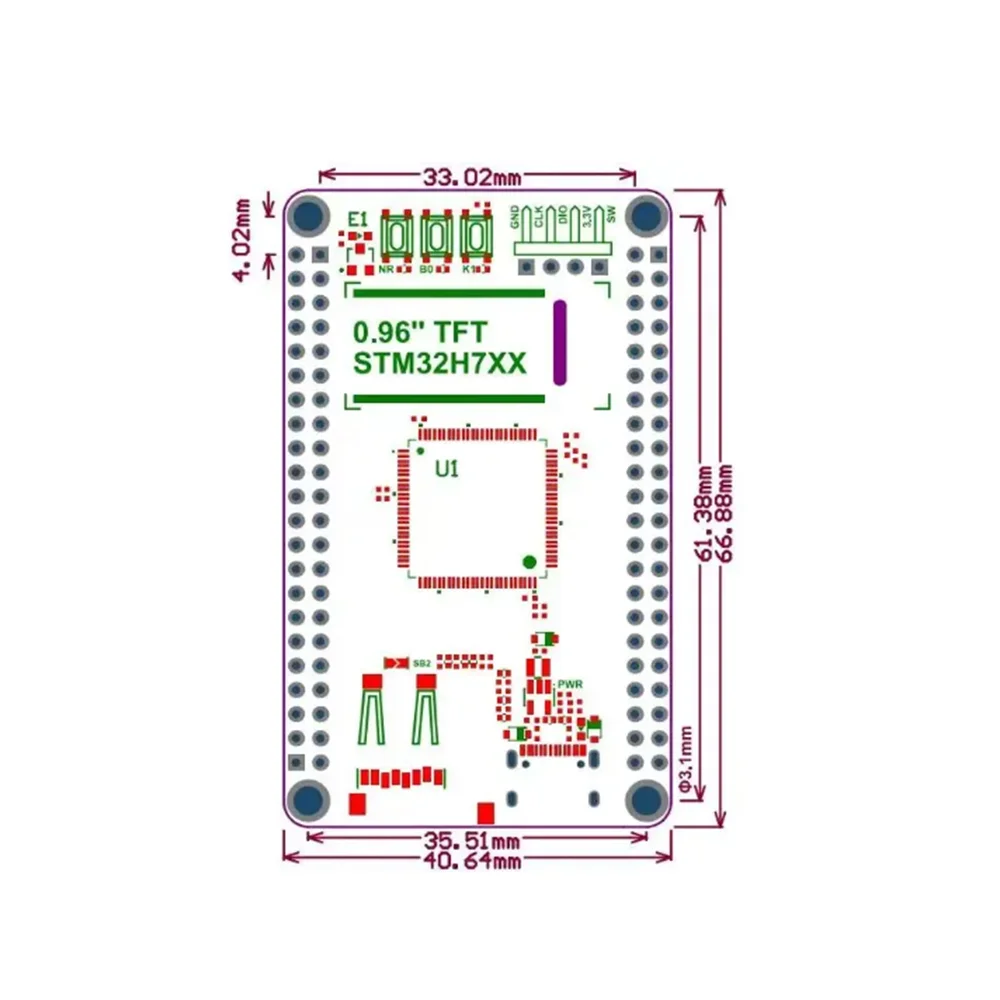

Dimensions 6 × 9 × 3 cm
