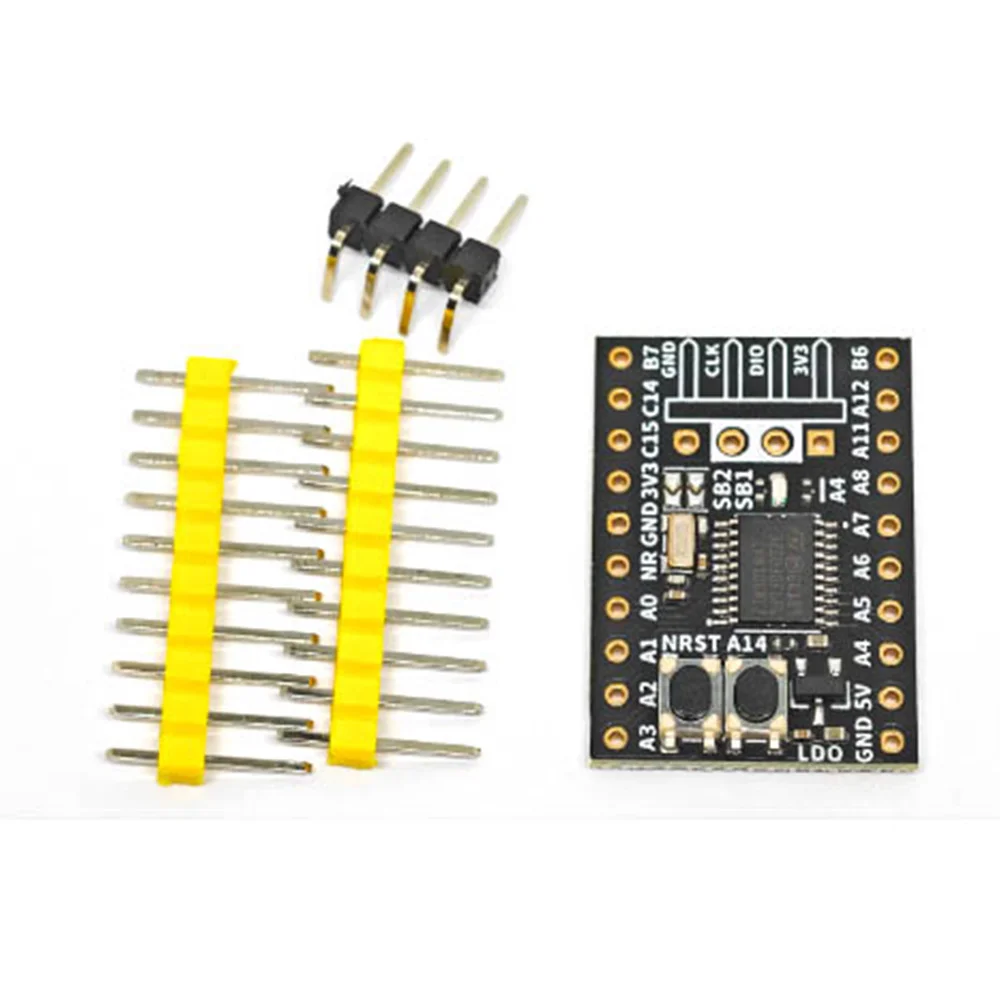

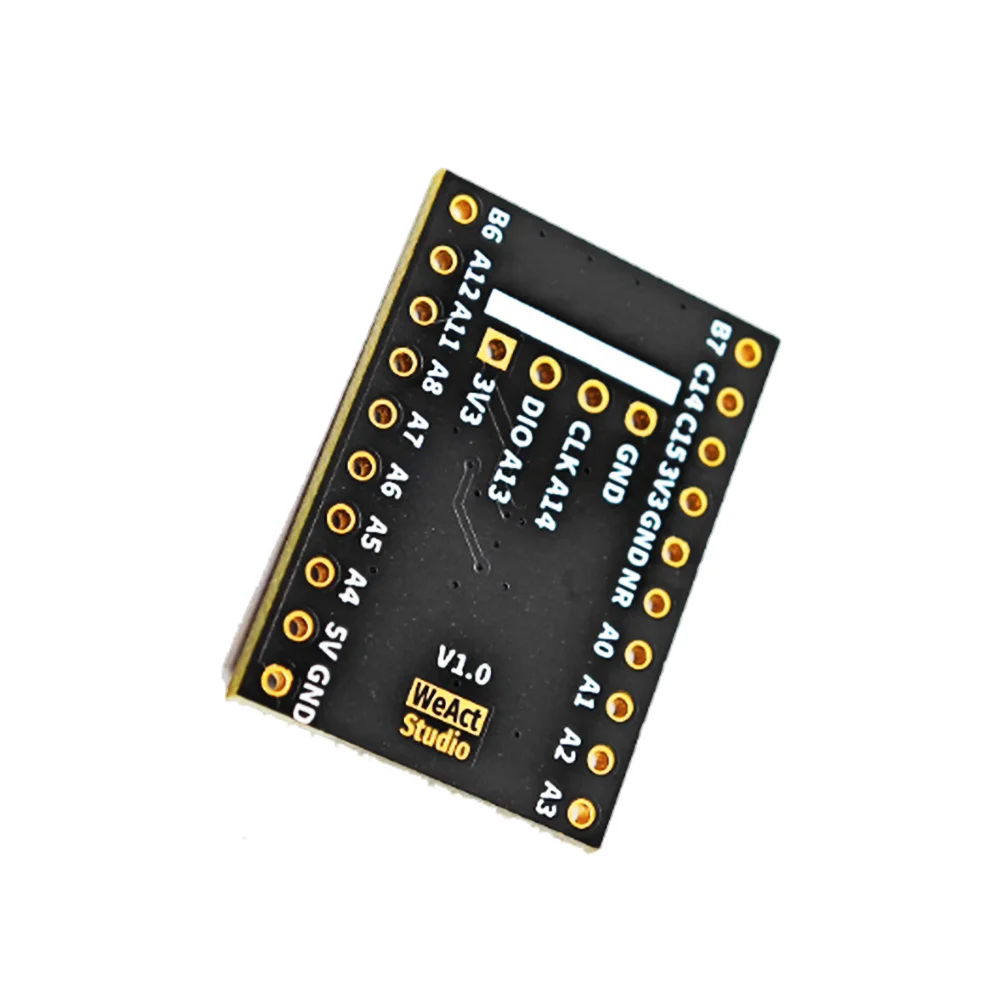

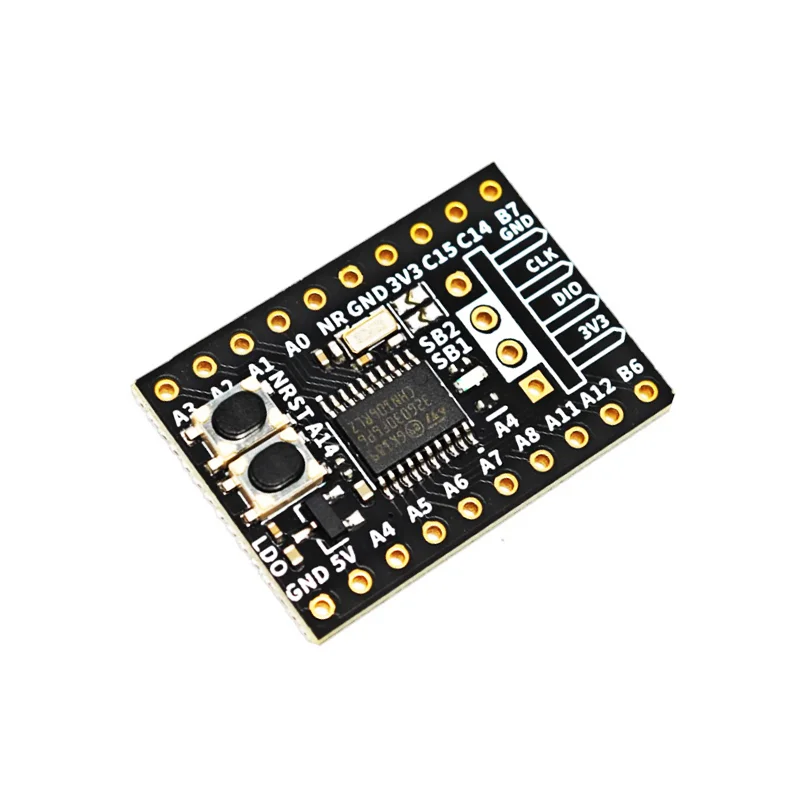

WeAct Studio STM32G031F6P6 Core Demo Board
The WeAct Studio STM32G031F6P6 Core Demo Board is a compact development platform featuring the ARM Cortex-M0+ based STM32G031 microcontroller, ideal for embedded projects requiring low-power operation and rich peripheral interfaces. It is programmable via STM32CubeIDE, PlatformIO, or Keil using an ST-Link debugger.
Features
- Powered by the STM32G031F6P6 microcontroller with a 64MHz ARM Cortex-M0+ CPU for efficient embedded processing.
- Features 15 GPIO pins, 32KB Flash, 8KB SRAM, and a wide operating temperature range from -40°C to 85°C.
- Includes a comprehensive set of communication interfaces: 2x I2C, 2x SPI, 3x UART, and 1x I2S.
- Onboard 5V to 3.3V regulator allows flexible power input from 3V to 5V sources.
- Equipped with a user LED on PA4, a user button on PA14, and a 32.768kHz crystal for low-power RTC applications.
Out of stock
The WeAct Studio STM32G031F6P6 Core Demo Board provides a robust and accessible entry point into STM32 microcontroller development. Centered on the energy-efficient ARM Cortex-M0+ core, this board delivers a balance of performance and low-power capability, making it suitable for battery-powered IoT nodes and embedded control systems. Its integrated voltage regulator simplifies power supply design, accepting inputs from 3V to 5V.
Designed for direct integration into final prototypes, the board exposes 15 general-purpose I/O pins alongside a full suite of serial communication peripherals, including multiple UART, SPI, and I2C channels. Development is streamlined through standard SWD/JTAG debugging interfaces, compatible with ST’s ecosystem tools like STM32CubeIDE as well as third-party environments such as PlatformIO and Keil MDK.
Additional Information
| Weight | 0.01 kg |
|---|---|

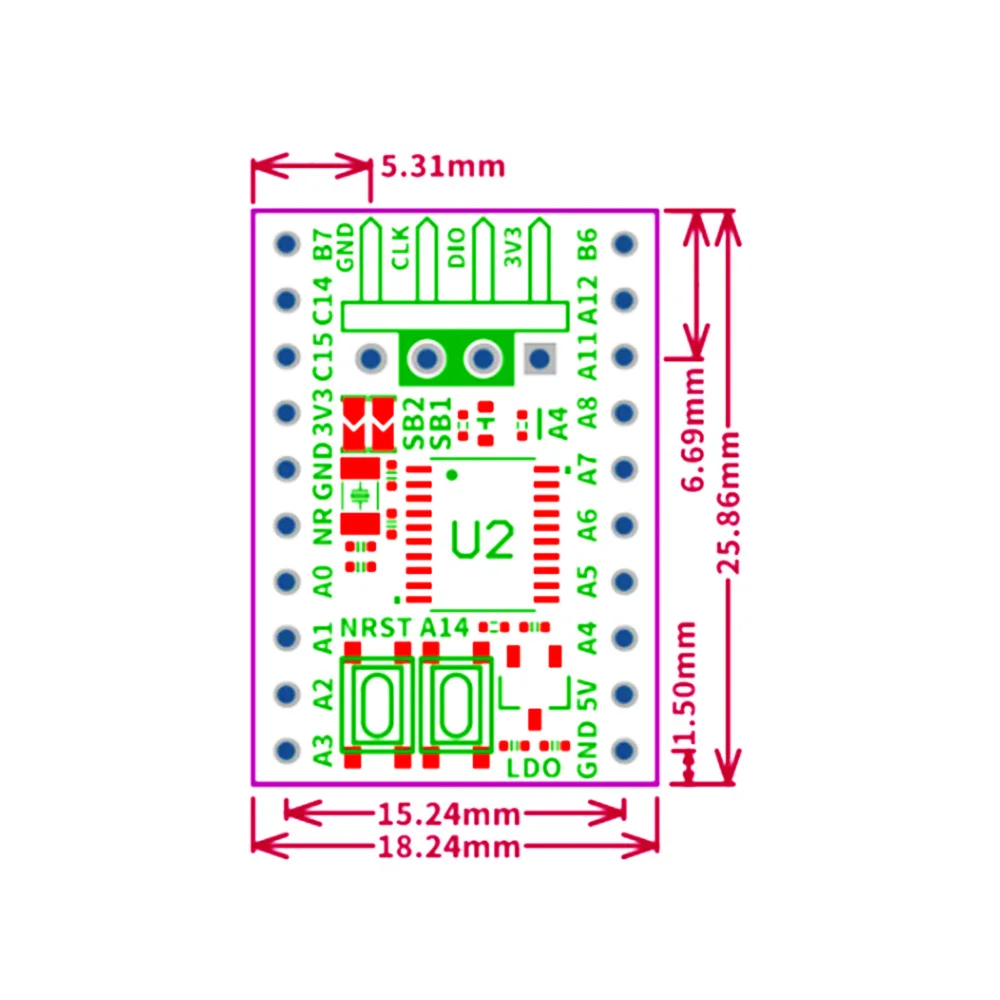

| Dimensions | 7 × 6 × 2 cm |
