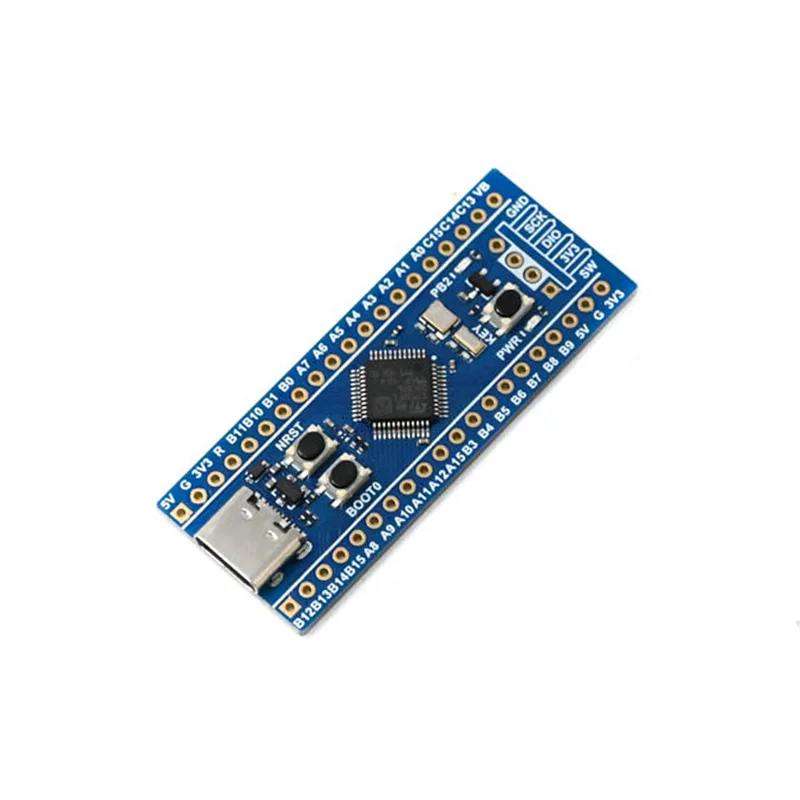

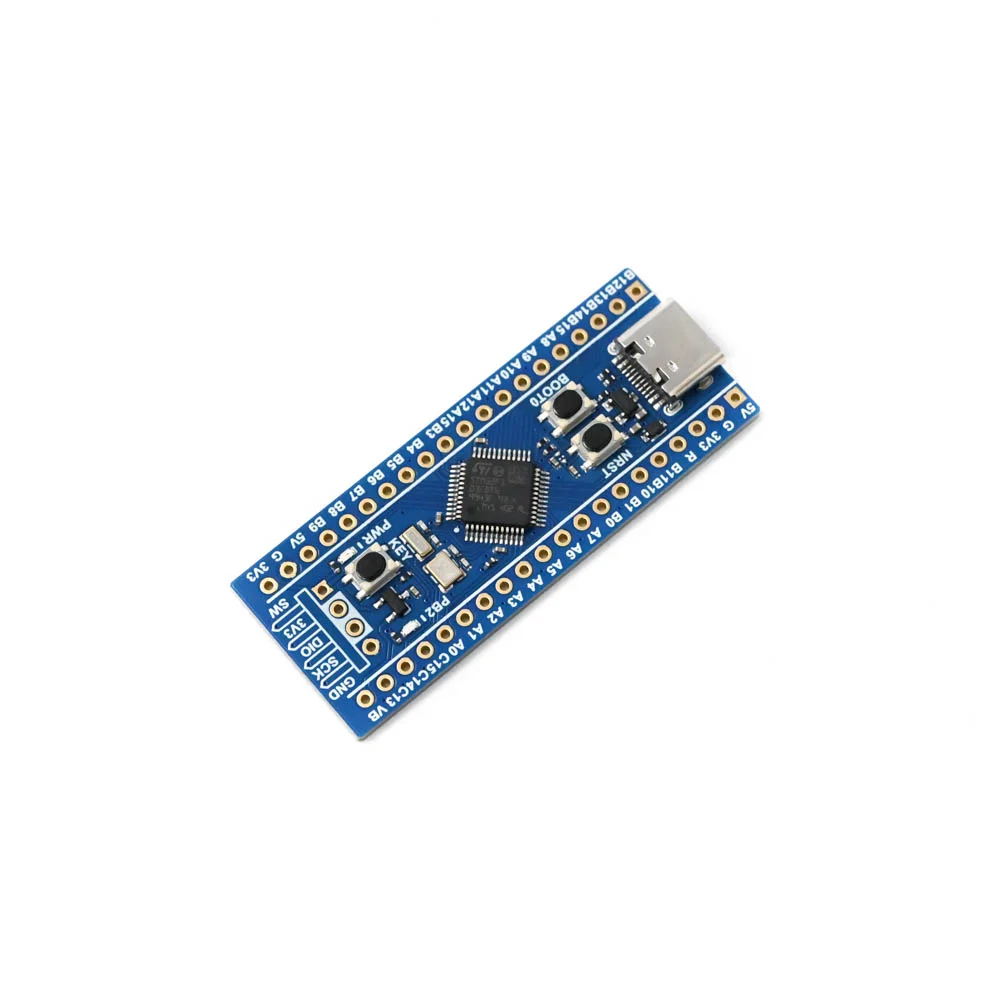

WeAct Studio STM32F103C8T6 Bluepill Plus ARM Cortex-M3 Dev Board
The WeAct Studio Bluepill Plus is a compact STM32F103C8T6 ARM Cortex-M3 development board, ideal for embedded systems prototyping. It features 72 MHz processing, 64 KB Flash, 20 KB SRAM, and a USB-C connector for easy programming and power.
Features
- Powered by the STM32F103CBT6 ARM Cortex-M3 microcontroller running at 72 MHz for robust embedded performance.
- Features 64 KB of Flash memory and 20 KB of SRAM for storing complex application code and data.

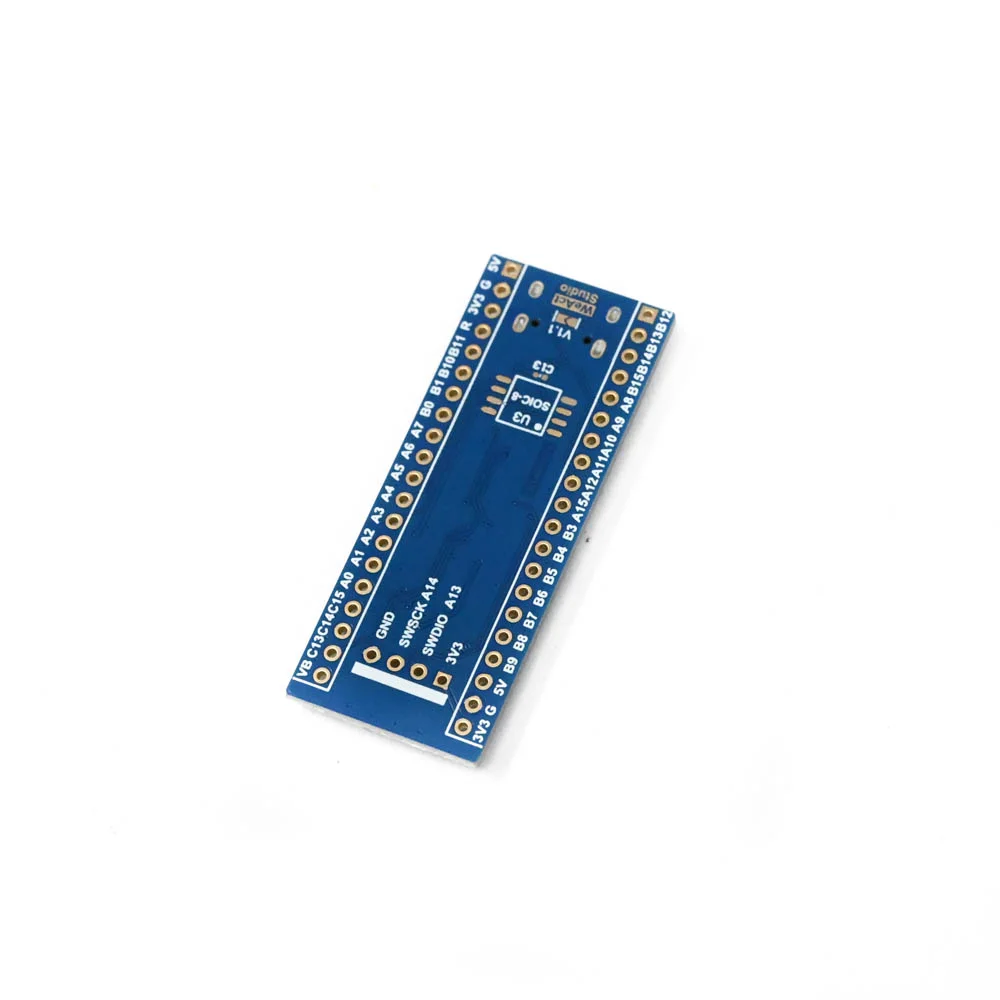

- Includes an onboard SPI Flash (U3) with dedicated pins for expanded non-volatile storage.

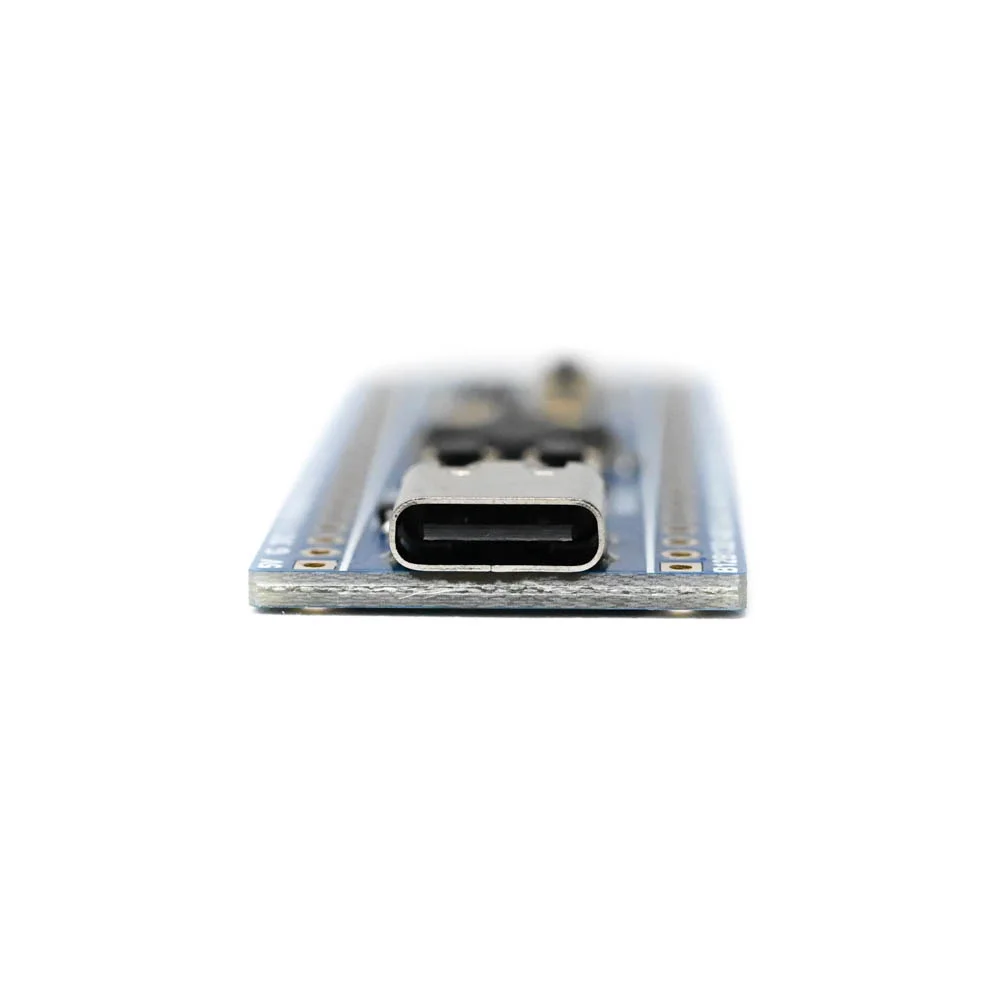

- Equipped with a modern USB Type-C connector for reliable programming, debugging, and power supply.

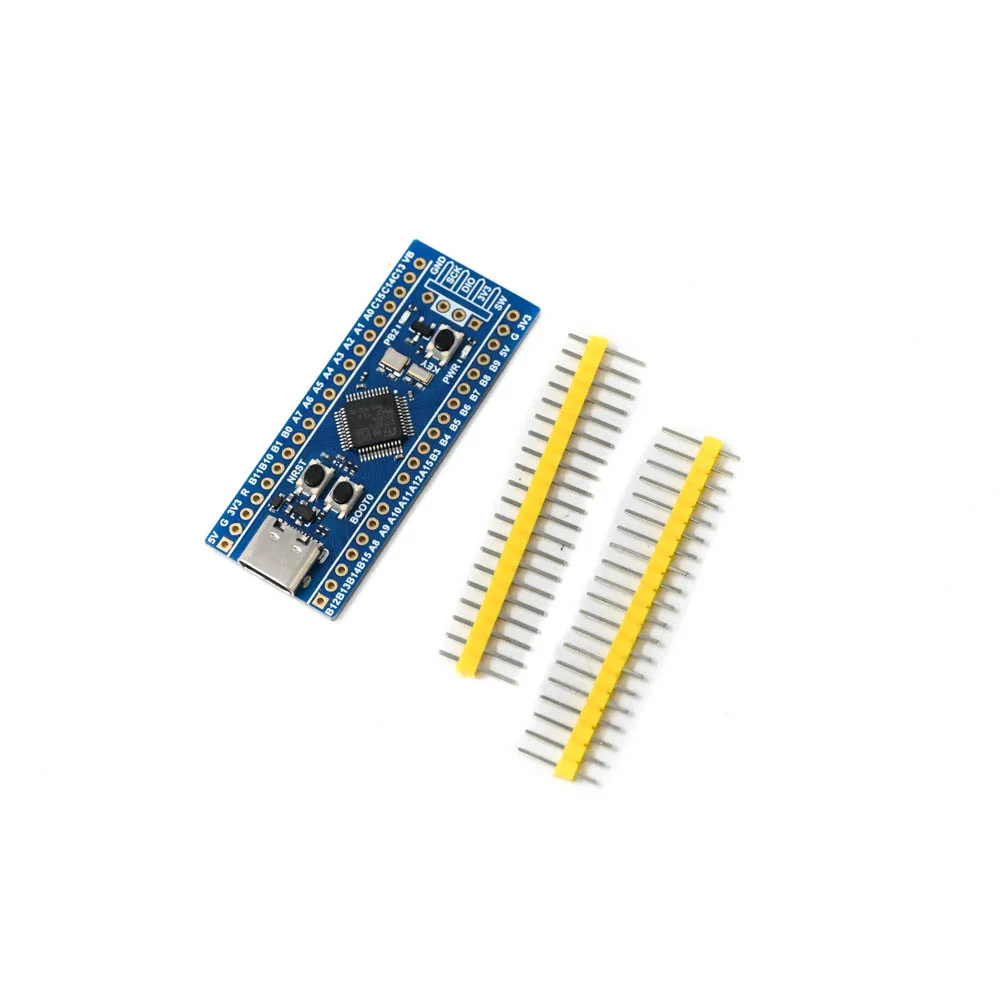

- Compact 52.81 x 20.78 mm form factor with 2×20 side pins and 1×4 SWD pins for versatile project integration.
Out of stock
The WeAct Studio STM32F103C8T6 Bluepill Plus is a high-quality minimum system board built around the industry-standard STM32F103 ARM Cortex-M3 core. It delivers 1.25 DMIPS/MHz performance with zero wait-state memory access, enabling efficient execution of real-time control algorithms and data processing tasks. The board is engineered for stability with an 8 MHz system crystal and a 32.768 kHz RTC crystal for precise timing operations.
Designed for developers and makers, it provides a full-featured GPIO breakout via two 20-pin headers and a 4-pin SWD programming header, facilitating seamless connection to sensors, displays, and communication modules. The inclusion of a dedicated SPI Flash chip offers additional storage for data logging, firmware updates, or file systems. Its USB-C interface simplifies the development workflow, supporting direct programming via ST-Link/V2 and providing a clean 5V power input.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 5 × 2 cm |
