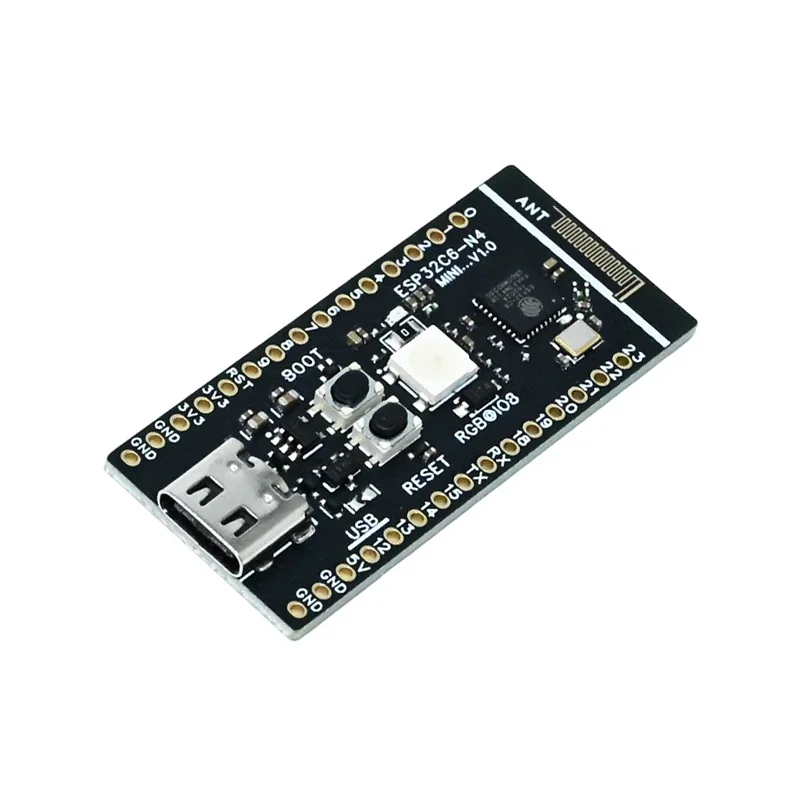

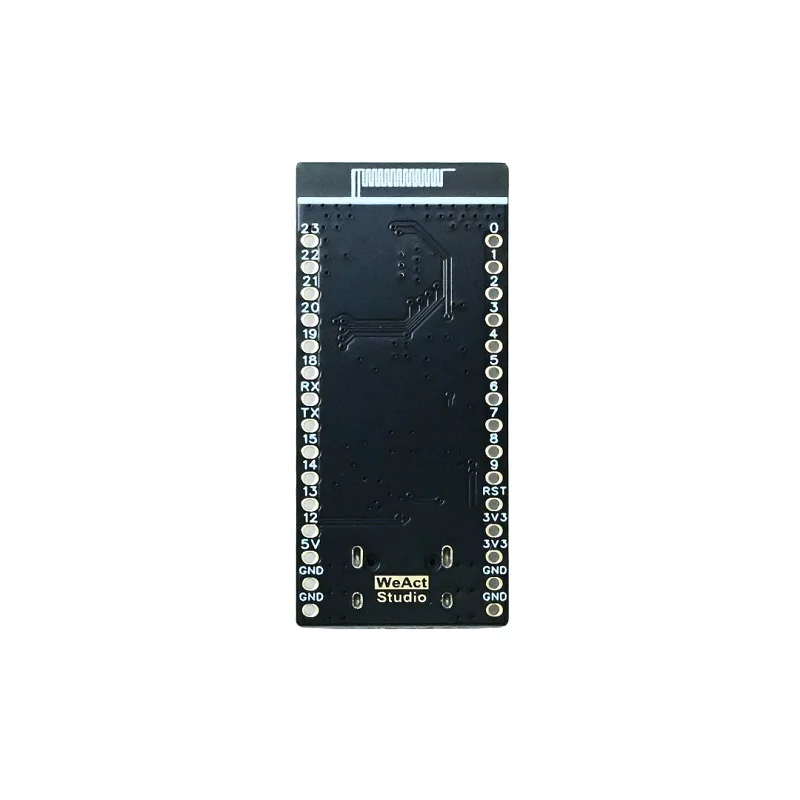

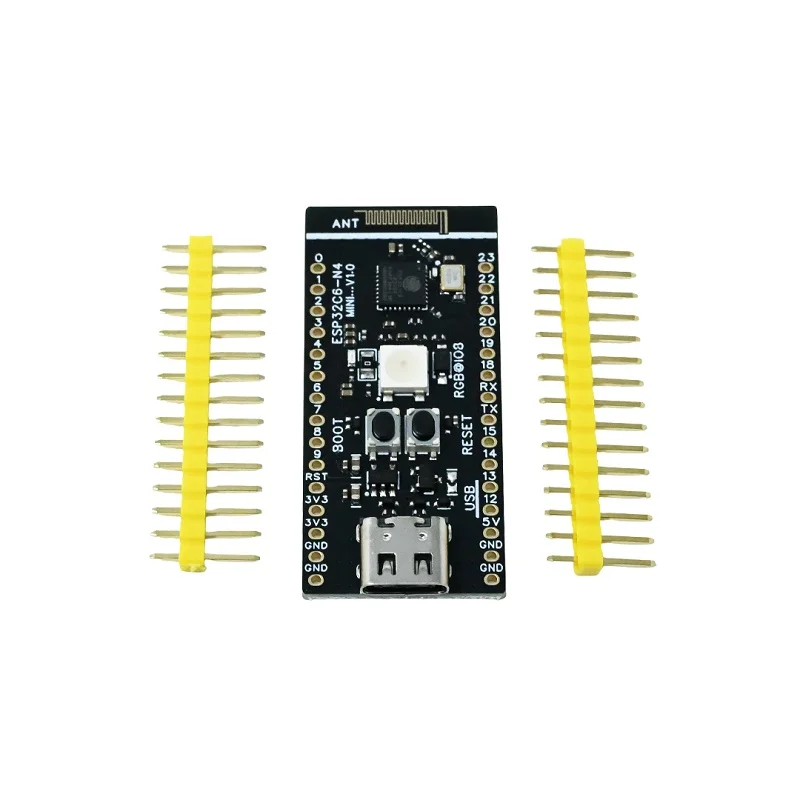

WeAct Studio ESP32-C6-MiNi Dev Board ESP32C6 RISC-V WiFi6 BLE Zigbee
The WeAct Studio ESP32-C6-MiNi is a compact development board built around Espressif’s ESP32-C6 SoC, featuring a 160 MHz RISC-V core with integrated Wi-Fi 6, Bluetooth LE 5.0, and Zigbee/Thread connectivity for next-generation IoT applications. It’s fully programmable via ESP-IDF or Arduino IDE.
Features
- Triple-Protocol Wireless SoC: Integrates Wi-Fi 6 (802.11ax 2.4GHz), Bluetooth LE 5.0, and IEEE 802.15.4 (Zigbee/Thread) on a single chip for versatile IoT connectivity.
- High-Performance RISC-V Core: Powered by a 32-bit single-core RISC-V processor clocked at 160 MHz for efficient data processing and task execution.
- Ample Memory for Firmware: Provides 512KB of SRAM and 320KB of ROM, offering sufficient space for complex application code and data buffering.
- Rich Peripheral Interface Set: Features up to 30 GPIOs, 3x SPI, 2x UART, I2C, 12-bit ADC, PWM, and USB-Serial/JTAG for easy sensor and actuator integration.
- Compact & Breadboard-Friendly: Mini system board form factor designed for prototyping and integration into space-constrained final products.
Out of stock
The WeAct Studio ESP32-C6-MiNi Development Board is a compact, high-performance platform centered on Espressif’s ESP32-C6, a pioneering SoC that consolidates Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 (Zigbee/Thread) radios. This integration enables developers to build devices capable of seamless communication across modern wireless standards, from high-throughput Wi-Fi 6 networks to low-power mesh networks like Zigbee.
At its core is a 160 MHz 32-bit RISC-V processor, balancing processing power with energy efficiency. The board provides 512KB SRAM and 320KB ROM, supporting robust application development. Its extensive I/O suite, including multiple SPI, UART, I2C, ADC channels, and PWM controllers, allows for direct connection to a wide array of sensors, displays, and industrial interfaces, making it an ideal foundation for smart home hubs, advanced sensor nodes, and multi-protocol gateways.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 3 × 5 × 2 cm |
