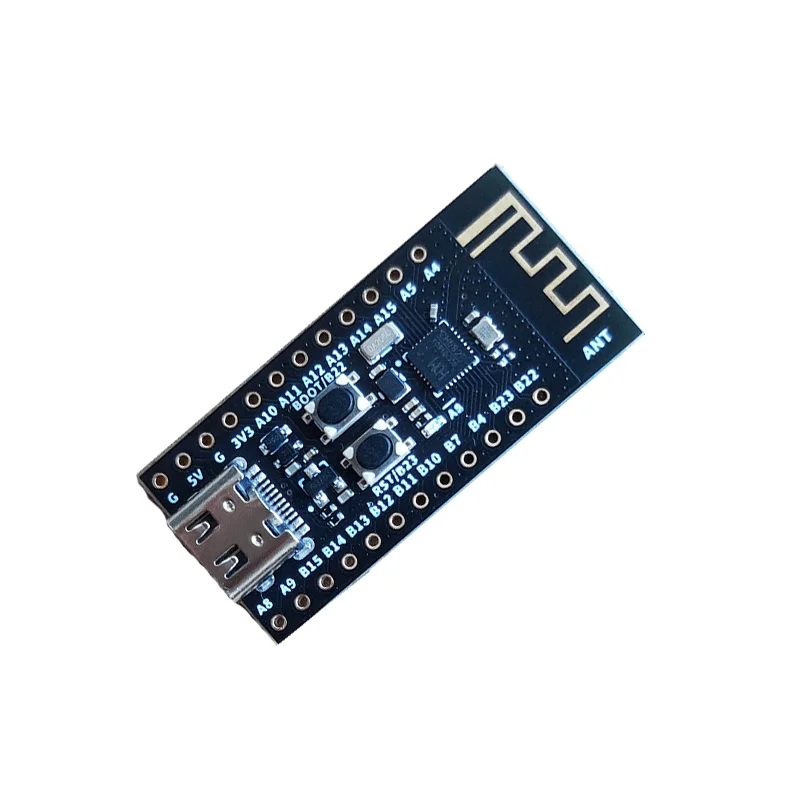

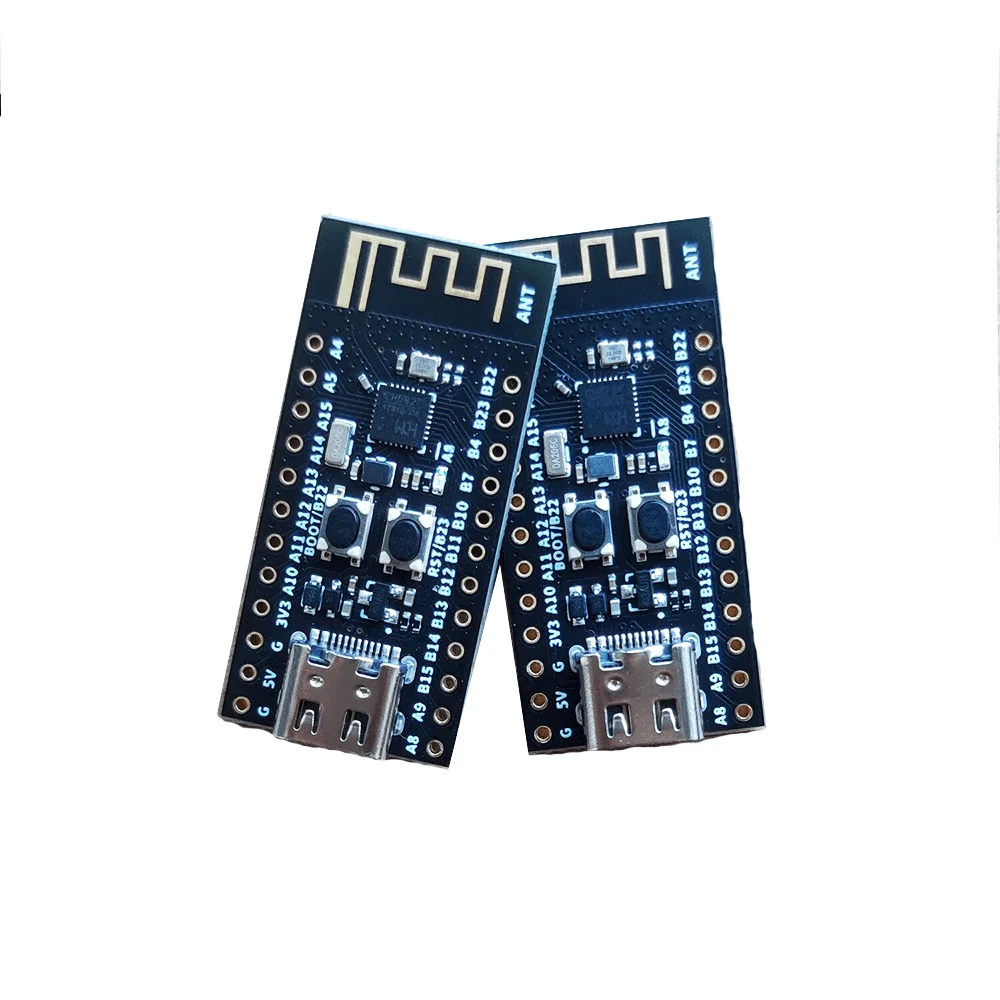

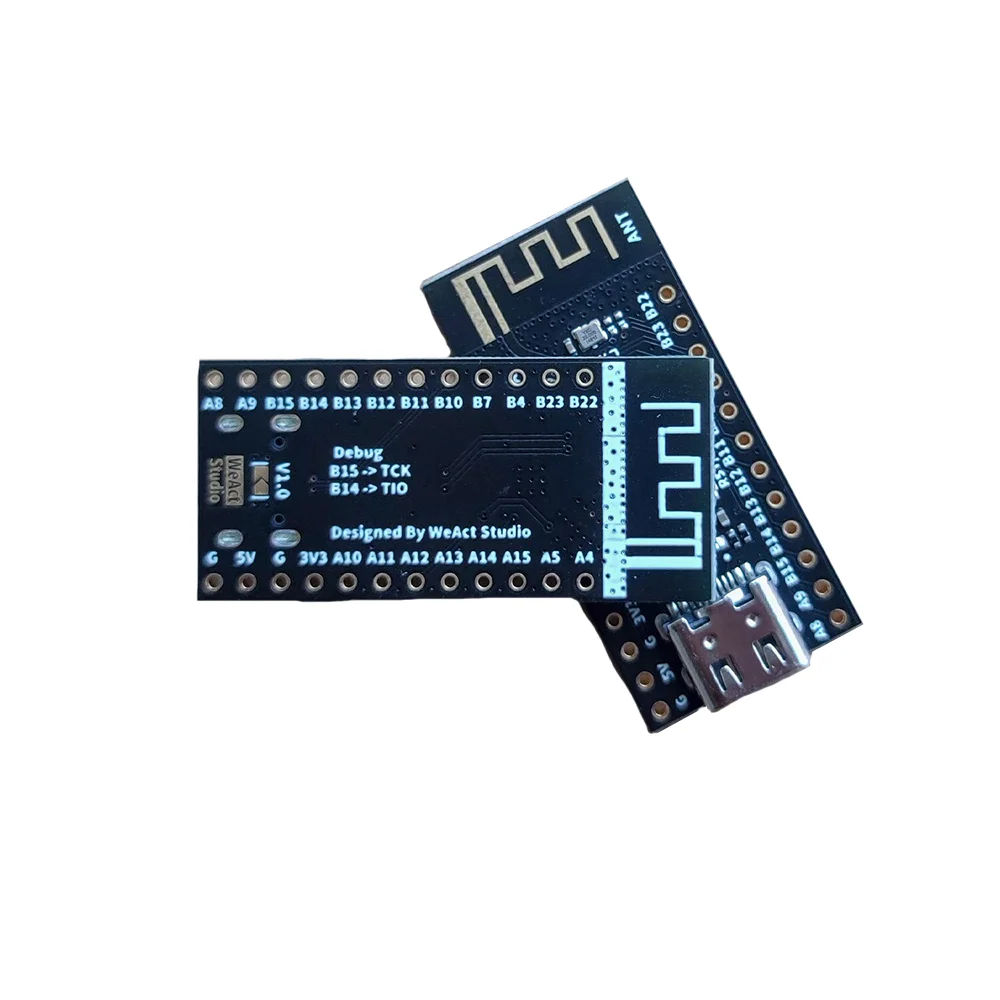

WeAct Studio CH582F Motherboard WCH BLE 5.0 RISC-V
The WeAct Studio CH582F Motherboard is a RISC-V-based Bluetooth 5.0 development board, ideal for low-power IoT and embedded projects requiring robust wireless connectivity via USB or serial interfaces.
Features
- RISC-V 4A CPU core operating at up to 60MHz for efficient processing in BLE applications.
- Full Bluetooth 5.0 support ensures higher data rates, longer range, and improved coexistence over Bluetooth 4.2.
- Integrated USB Device/Host functionality with TVS diode protection for direct PC connectivity and peripheral management.
- Comprehensive peripheral set includes 4 UARTs, SPI, I2C, 10 PWM channels, and 8 ADC inputs for sensor integration.
- Flexible 3.3V-5V power input with onboard LDO and backflow protection simplifies system power design.
Out of stock
The WeAct Studio CH582F Motherboard is built around the WCH CH582F system-on-chip, featuring a RISC-V architecture microcontroller optimized for Bluetooth Low Energy (BLE) communication. The board provides a complete development platform with direct USB programming and debugging, eliminating the need for external debuggers. Its integrated power management supports a wide input voltage range and includes protection circuits for reliable operation in field deployments.
With 448KB of ROM and 20KB of RAM, the CH582F is well-suited for firmware implementing BLE profiles, sensor data aggregation, and control logic. The inclusion of multiple serial interfaces (UART, SPI, I2C) and analog inputs makes it a versatile core for creating custom wireless sensor nodes, HID devices, or smart home controllers that require a balance of processing capability and ultra-low-power wireless connectivity.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 54 × 4 × 2 cm |
