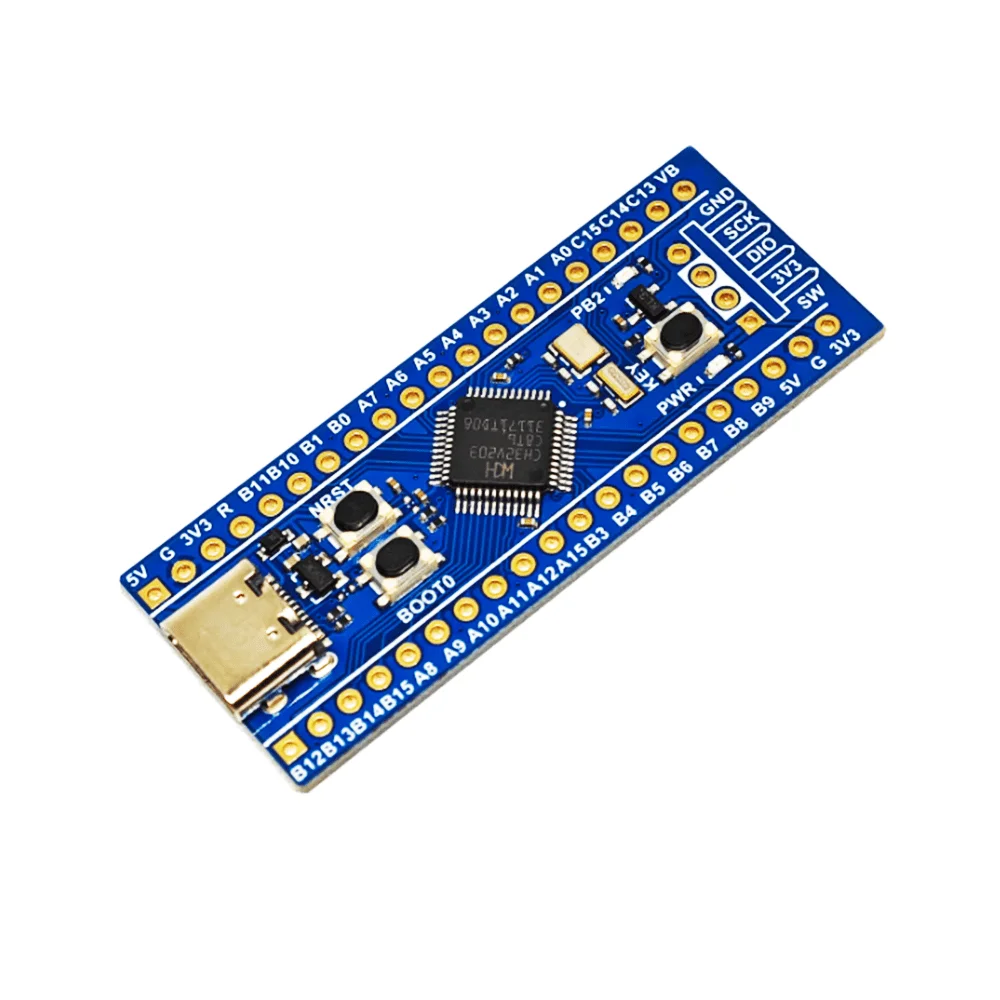

WeAct Studio CH32V203C8T6 RISC-V Low Power Core Demo Board
The WeAct Studio CH32V203C8T6 demo board is a RISC-V development platform powered by the Qingke V4B core, running at up to 144MHz with 64KB Flash and 20KB SRAM. It operates at 3.3V and features ultra-low power modes, USB 2.0 host/device, CAN, and multiple serial interfaces for embedded IoT and control applications.
Features
- RISC-V Qingke V4B Core: High-performance 32-bit processor operating at up to 144MHz for efficient embedded computation.
- Ultra-Low Power Operation: Features sleep, stop, and standby modes with consumption as low as 17.90uA/MHz in Sleep mode for battery-powered designs.
- Rich Peripheral Set: Integrates USB 2.0 host/device, 4x UARTs, CAN, 2x I2C, 2x SPI, and an 18-channel DMA controller for complex system interfacing.
- Integrated Analog & Touch: Includes a 10-channel 12-bit ADC, 10-channel TouchKey controller, and 2 amplifiers for sensor and HMI applications.
- Compact Development Platform: Provides 37 GPIOs, a 96-bit unique ID, and a 2-wire debug interface on a board ready for prototyping.
Out of stock
The WeAct Studio CH32V203C8T6 demo board is a feature-rich development platform centered on the WCH CH32V203 microcontroller, which utilizes the open-source Qingke V4B RISC-V core. It delivers a balance of high performance, reaching clock speeds of 144MHz, and remarkably low power consumption, making it suitable for a wide range of embedded IoT, industrial control, and consumer electronics projects.
Beyond its computational core, the board is equipped with a comprehensive suite of communication peripherals, including full-speed USB 2.0 with both host and device capabilities, a CAN interface for industrial networks, and multiple UART, I2C, and SPI buses. The independent 3.3V GPIO power domain and integrated analog front-end with ADC and touch sensing simplify interfacing with external sensors, actuators, and user interfaces.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 5 × 2 cm |
