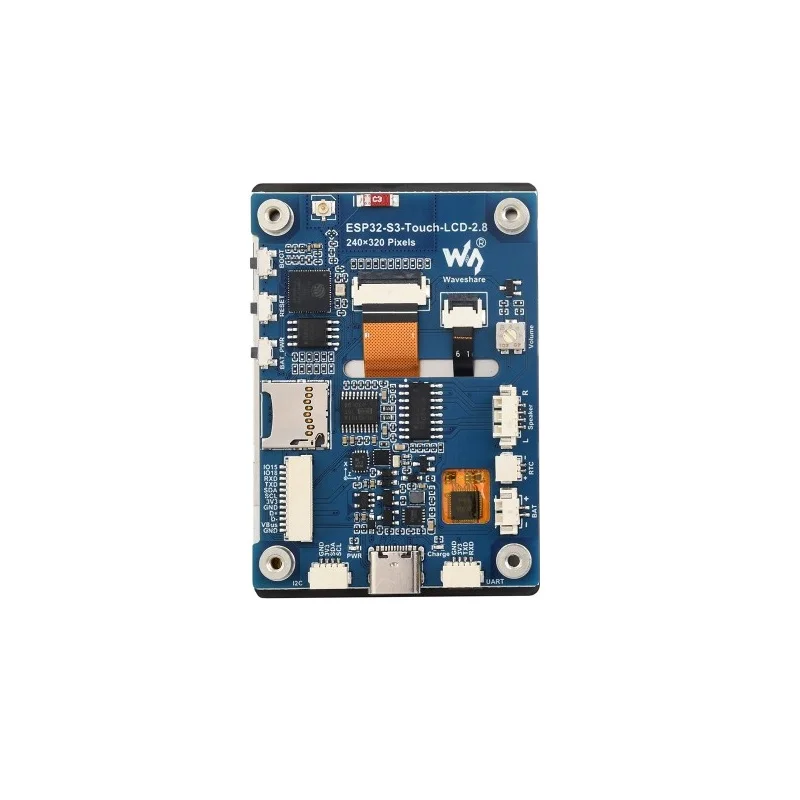

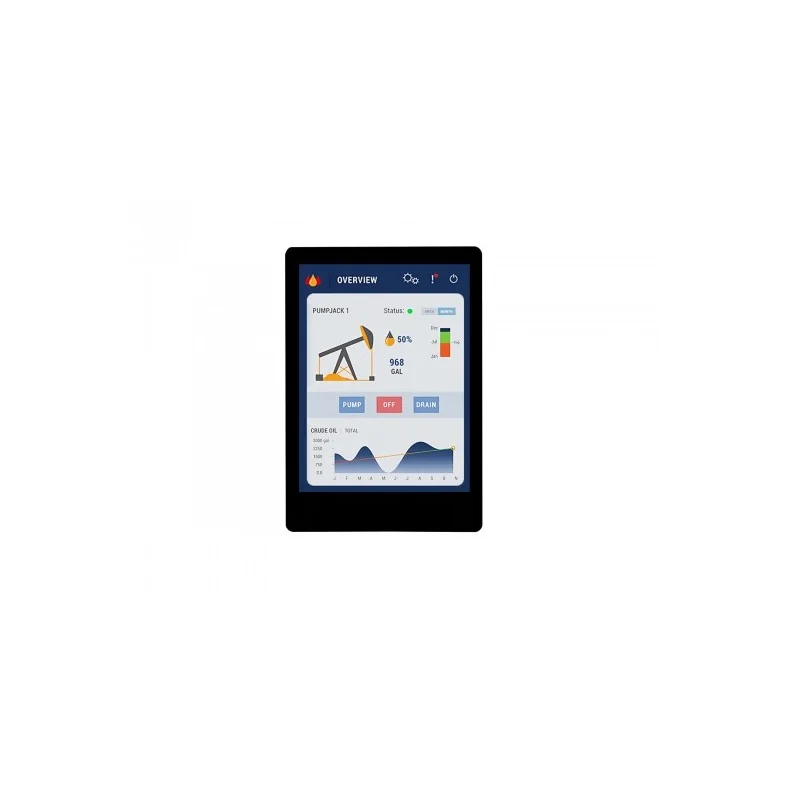

Waveshare ESP32-S3 2.8-Inch Capacitive Touch Display Development Board

You can program it using the Arduino IDE with the ESP32 board package, ESP-IDF, or MicroPython. Connect the board via the USB Type-C port, select the correct COM port, and choose 'ESP32S3 Dev Module' as the target. The onboard USB provides both power and a serial connection for uploading code and debugging serial output.

The provided SH1.0 cables (4-pin and 12-pin) are used to connect the board's expansion headers to external sensors, actuators, or other modules. They allow you to access the GPIO, I2C, and UART pins broken out from the ESP32-S3 without needing to solder directly to the board's fine-pitch headers.

Yes, this board is well-suited for LVGL. The 8MB of onboard PSRAM serves as a dedicated frame buffer for graphics, allowing for smooth animations and complex UI elements. The 16MB of Flash provides ample space for storing your application code, fonts, and image assets. You'll need to configure LVGL to use the PSRAM memory pool in your project settings.

Yes, it includes a battery management circuit. You can connect a Li-Po battery to the designated terminals to enable portable operation. The ESP32-S3 chip supports various deep sleep modes, which can be combined with the onboard RTC to create ultra-low-power sensor nodes that wake up periodically to transmit data or update the display.

The QMI8658 accelerometer and gyroscope is connected to the ESP32-S3 via the I2C bus. You need to include a compatible library in your firmware, such as the QMI8658 library for Arduino. Initialize the sensor with the correct I2C address, then you can read raw acceleration and gyro data for motion detection, orientation tracking, or gesture recognition in your application.
