Waveshare RP2350-USB-C Microcontroller Dev Board w/ RP2350A

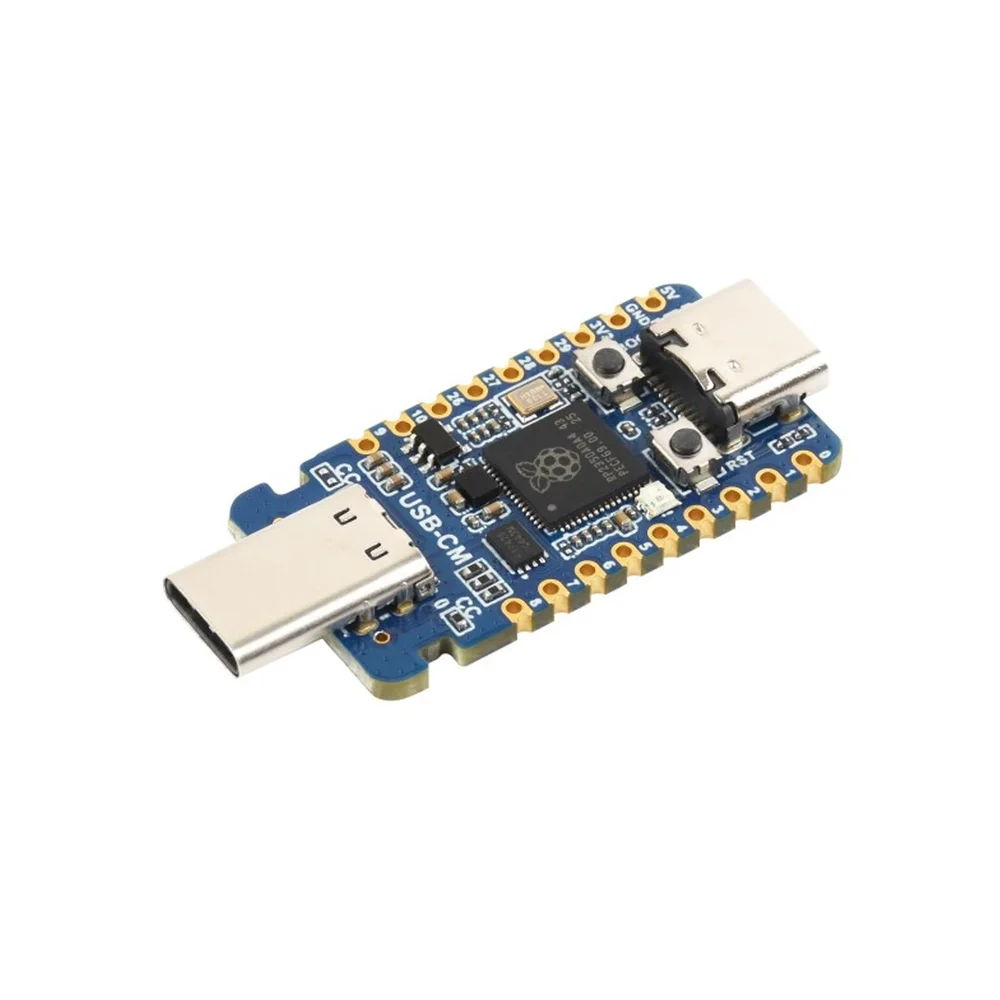

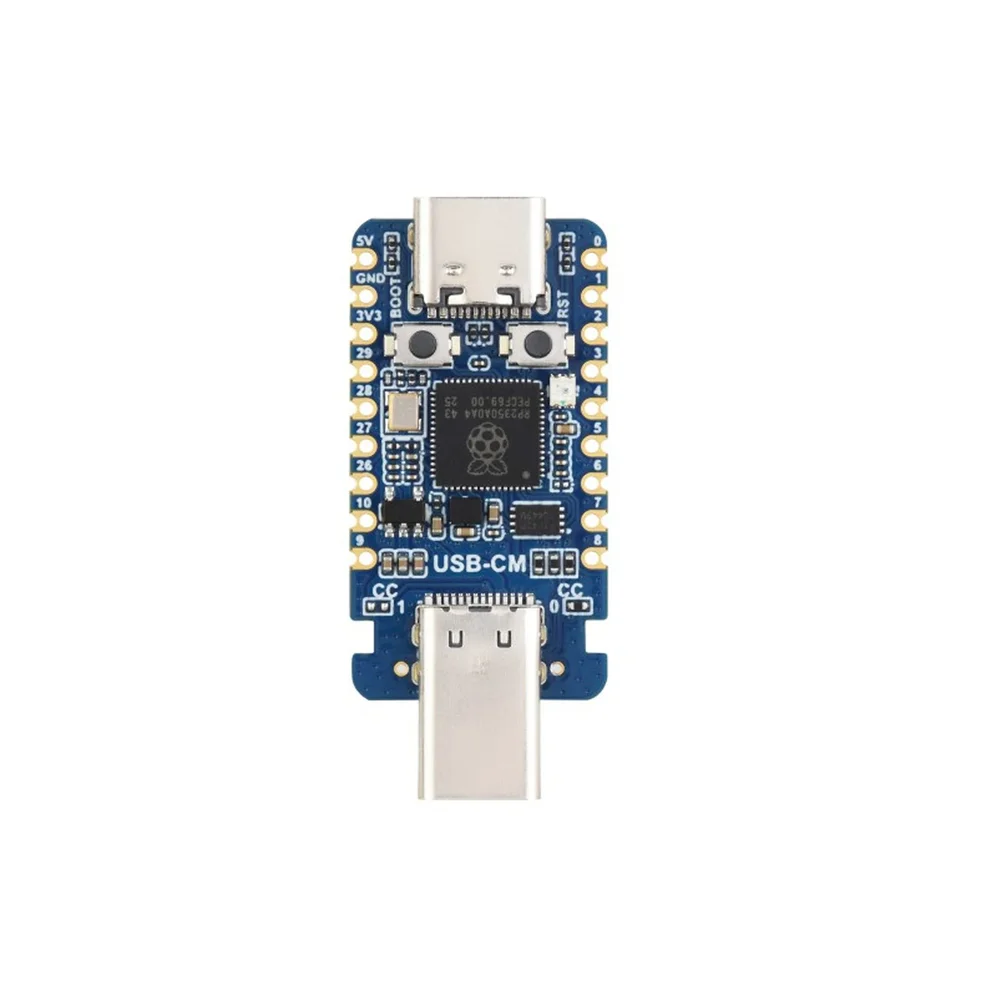

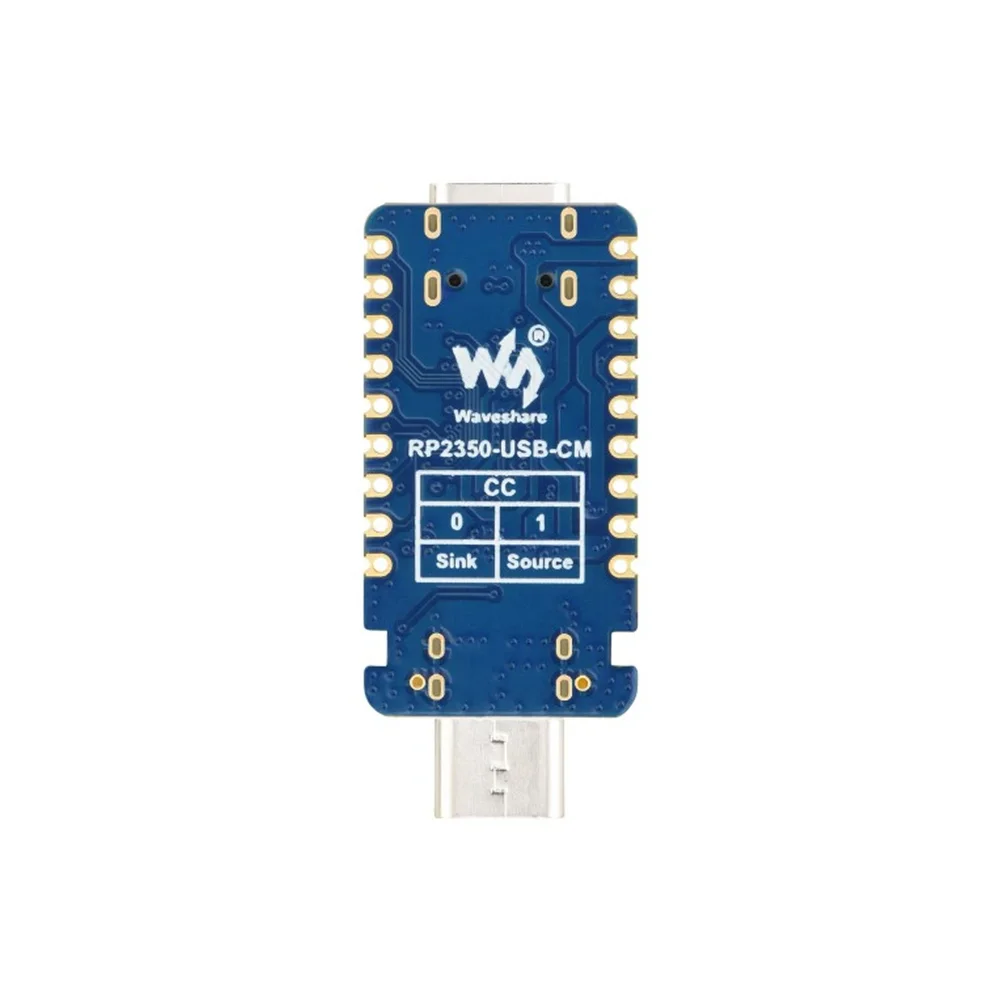

The Waveshare RP2350-USB-C is a compact, castellated development board built around the Raspberry Pi RP2350A microcontroller, featuring a dual-core, dual-architecture (ARM Cortex-M33 or RISC-V) design. It offers flexible I/O, USB 1.1 host/device support via USB-C, and is ideal for embedded firmware development in C/C++ or MicroPython.
Features
- Raspberry Pi RP2350A MCU with dual ARM Cortex-M33 or dual Hazard3 RISC-V cores, clockable up to 150 MHz.
- Generous 520KB SRAM and 2MB onboard Flash memory for complex embedded applications.
- USB Type-C port provides PD-compatible power and USB 1.1 host/device functionality with drag-and-drop programming.
- 15 multifunction GPIO pins supporting 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, and 14 PWM channels.
- Castellated edge design allows for direct soldering onto custom carrier boards for space-constrained SMD projects.
Out of stock
The Waveshare RP2350-USB-C development board provides a versatile hardware platform centered on the Raspberry Pi-designed RP2350A microcontroller. Its unique dual-core, dual-architecture capability allows developers to choose between dual ARM Cortex-M33 or dual Hazard3 RISC-V processor cores, offering flexibility for performance-critical or power-efficient embedded designs. The board operates at speeds up to 150 MHz and is equipped with substantial 520KB of static RAM and 2MB of onboard Flash, catering to applications requiring significant runtime data and firmware storage.
Integration is streamlined through a USB Type-C connector that handles both power delivery (PD-compatible) and full USB 1.1 communication, supporting both host and device roles. The extensive I/O suite, including multiple serial interfaces, ADCs, and PWM channels, enables direct connection to sensors, actuators, and displays. The board’s compact, castellated form factor is engineered for final-product integration, allowing it to be soldered directly as a system-on-module, minimizing footprint in end-use automation, IoT, and custom hardware projects.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 1.7 × 4.2 × 0.5 cm |
