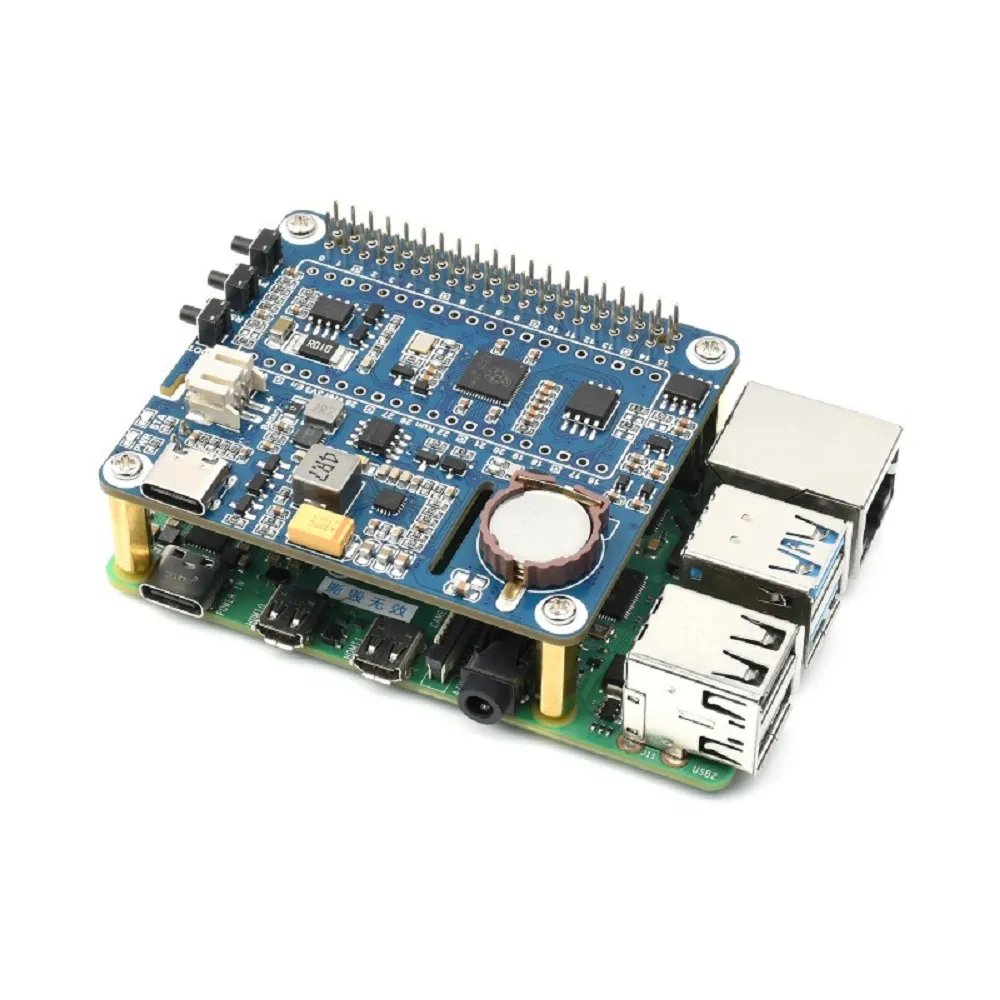

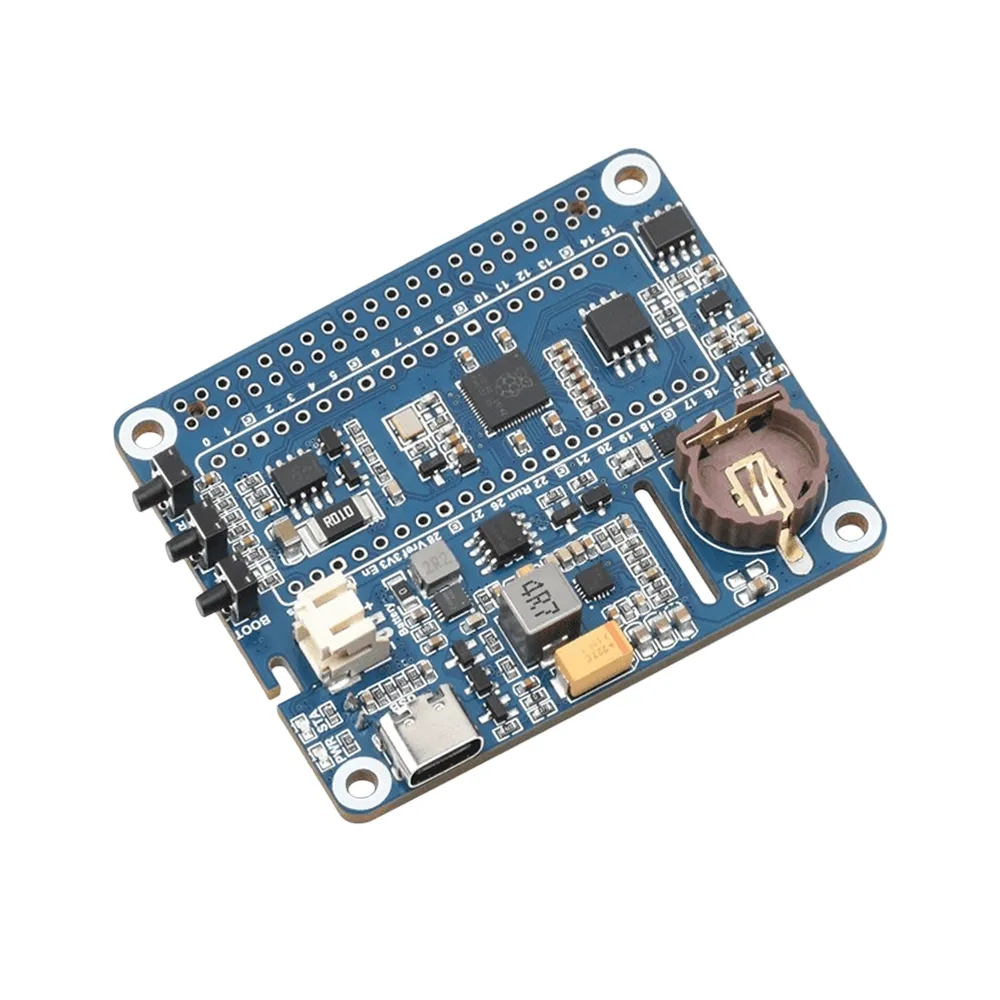

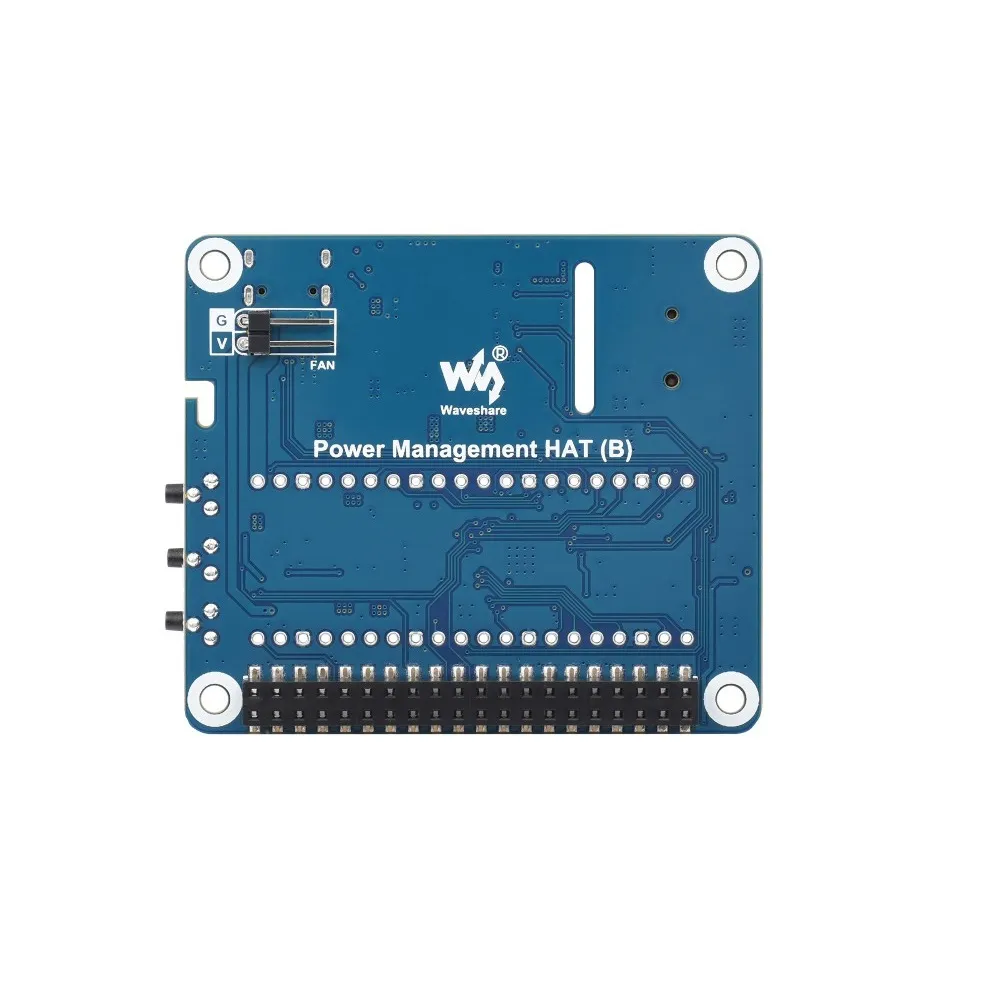

Waveshare RP2040 Power Management HAT for Raspberry Pi
The Waveshare Power Management HAT for Raspberry Pi integrates an RP2040 microcontroller for advanced power control, enabling simultaneous charging and output, precise RTC functionality, and robust protection circuits for your Raspberry Pi project.
Features
- Features an RP2040 microcontroller for intelligent power management and flexible control.
- Supports simultaneous charging and stable power output to the Raspberry Pi.
- Includes an onboard PCF8523 RTC chip for accurate timekeeping, even when disconnected.
- Equipped with an MP28167-A buck-boost DC chip for fast load transient response.
- Provides comprehensive protection circuits, including anti-reverse and counter-current proofing.
Out of stock
The Waveshare Power Management HAT is a sophisticated power solution designed for Raspberry Pi series boards, leveraging the versatile RP2040 dual-core ARM Cortex-M0+ microcontroller. This HAT provides critical functionalities such as reliable power management, simultaneous battery charging and power output, and real-time clock capabilities, making it ideal for portable or embedded applications where power autonomy is essential.
Featuring an onboard PCF8523 RTC chip, the HAT ensures accurate timekeeping, while the MP28167-A buck-boost DC chip delivers a fast load transient response for stable power delivery. It includes extensive protection circuits—such as power supply anti-reverse and counter-current proofing—to safeguard both the HAT and your Raspberry Pi. An integrated user-defined button supports custom functions like safe shutdown or system startup, enhancing usability and system control.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 6.5 × 5.65 cm |
