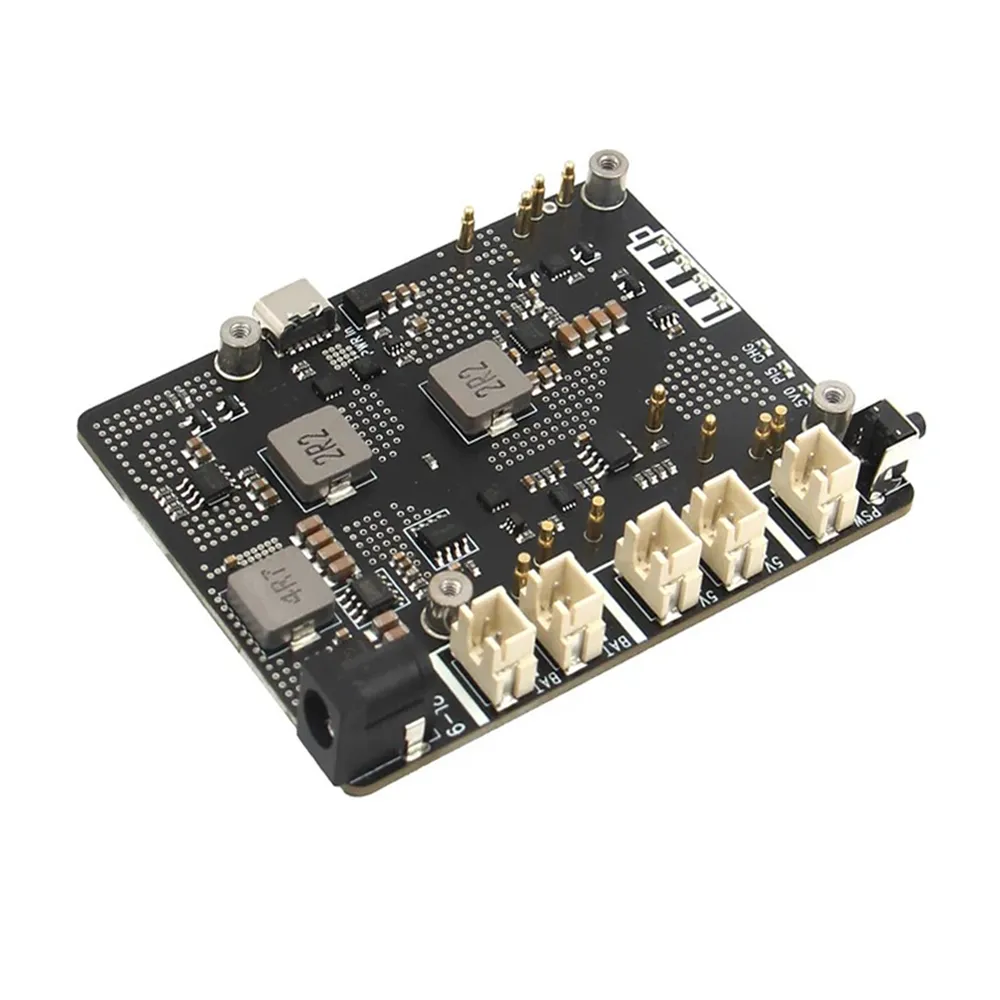

Geekworm X1203 5.1V 5A UPS Shield for Raspberry Pi 5
The Geekworm X1203 UPS Shield is an advanced uninterruptible power supply expansion board specifically designed for the Raspberry Pi 5, ensuring stable 5.1V 5A power backup. It integrates intelligent power management to provide continuous operation and optimize battery life for demanding Raspberry Pi 5 applications.
Features
- Provides stable 5.1V 5A uninterruptible power supply, critical for Raspberry Pi 5 applications.
- Features intelligent power management, automatically cutting power during shutdown to optimize battery life.
- Supports a wide 6V to 18V input range with flexible charging via USB-C (PD27W compatible) or DC5521.
- Integrated high-efficiency DC-DC converter delivers up to 5.5A output with 95% efficiency.
- Enables 3000mA fast charging for rapid battery replenishment while simultaneously powering the system.
Out of stock
The Geekworm X1203 is a robust uninterruptible power supply (UPS) expansion board engineered for the Raspberry Pi 5B, providing stable and reliable power backup. It ensures continuous operation with a consistent 5.1V 5000mA output, making it ideal for resource-intensive applications and setups requiring multiple peripherals. Designed to fit seamlessly beneath the Raspberry Pi 5, the X1203 is an essential component for critical embedded systems.
This UPS shield incorporates an advanced power management system that intelligently monitors the Raspberry Pi’s power status. It automatically cuts off power when the Pi is shut down, activating an ultra-low standby power consumption mode. This intelligent feature significantly optimizes battery life and ensures efficient operation, maximizing the longevity of your UPS battery. Power input is highly flexible, supporting 5Vdc 5A via its USB Type-C port or 6-18Vdc, ≥3A via a standard DC 5521 power jack, compatible with various power sources including car adaptors or solar panels.
Equipped with an high-efficiency step-down DC-DC converter, the X1203 achieves up to 95% efficiency, delivering optimal power conversion. It provides up to 5.5A output current, enabling a robust 3A fast charging capability for the UPS battery while simultaneously powering the Raspberry Pi 5 system. This ensures quick recharging and constant readiness for backup power, making the X1203 a dependable solution for maintaining uptime.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 12 × 9 × 3 cm |
