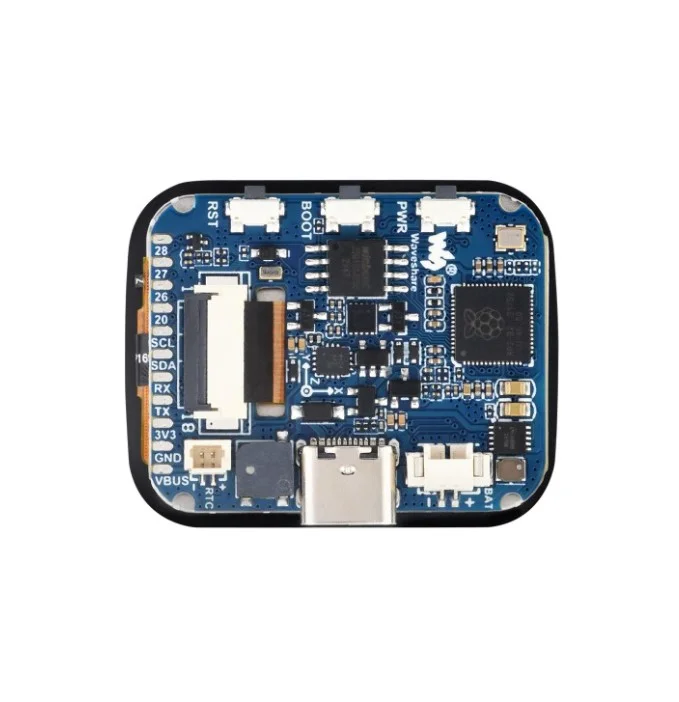

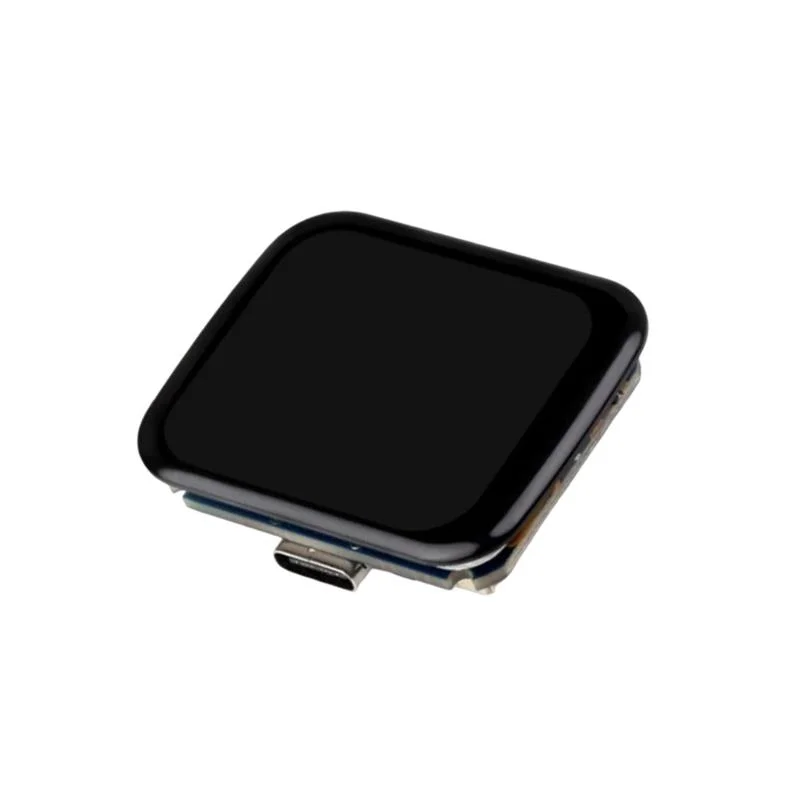

Waveshare RP2040 Dev Board w/ 1.69-Inch Touch LCD & IMU
The Waveshare RP2040 Development Board integrates a dual-core ARM Cortex-M0+ microcontroller with a 1.69-inch capacitive touch LCD and onboard accelerometer/gyroscope, ideal for building interactive IoT devices and HMI projects using C/C++, MicroPython, or Arduino frameworks.
Features
- RP2040 dual-core ARM Cortex-M0+ processor clocked up to 133 MHz for responsive embedded applications.
- Integrated 1.69-inch capacitive touch LCD (240×280, 65K colors) for direct user interface and data visualization.
- Onboard 6-axis IMU (accelerometer & gyroscope) enables motion sensing and orientation tracking.
- 16MB onboard flash and 264KB SRAM provide ample storage and memory for complex firmware.
- Supports drag-and-drop USB mass storage programming and is compatible with Arduino, MicroPython, and C/C++ SDKs.
Out of stock
This Waveshare development board is built around the Raspberry Pi RP2040 microcontroller, offering a powerful dual-core ARM Cortex-M0+ processor for efficient multitasking in embedded systems. The integrated 1.69-inch capacitive touchscreen serves as a compact human-machine interface (HMI), eliminating the need for external displays in portable or interactive projects.
The board includes a 6-axis inertial measurement unit (IMU) for precise motion detection, making it suitable for robotics, gaming controllers, or wearable tech. With support for low-power sleep modes, USB host/device functionality, and a built-in buzzer for audio feedback, it provides a comprehensive platform for rapid prototyping of smart, interactive IoT devices and portable instruments.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 7 × 4 × 2 cm |
