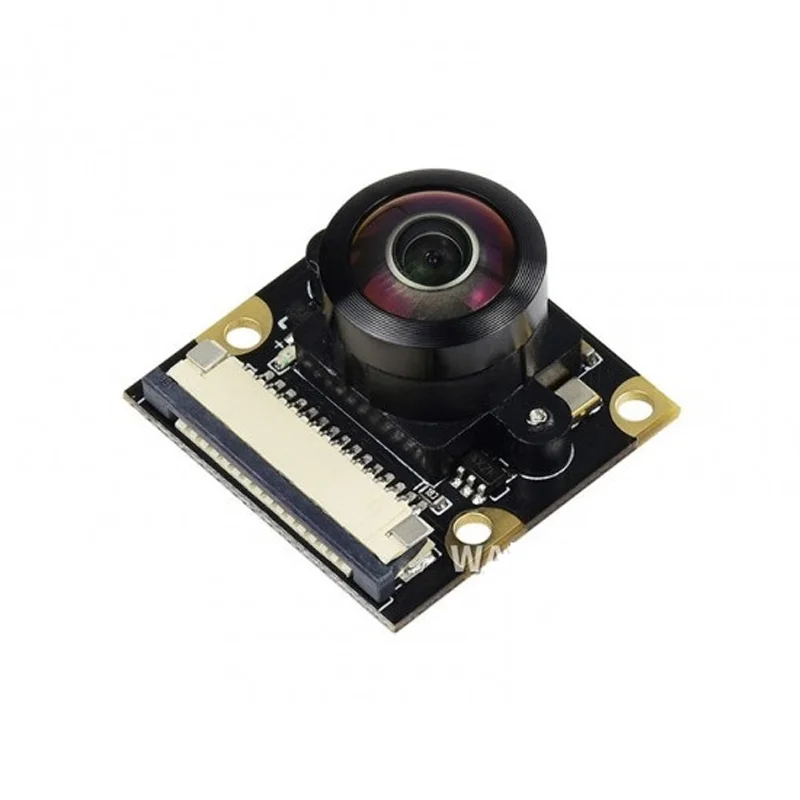

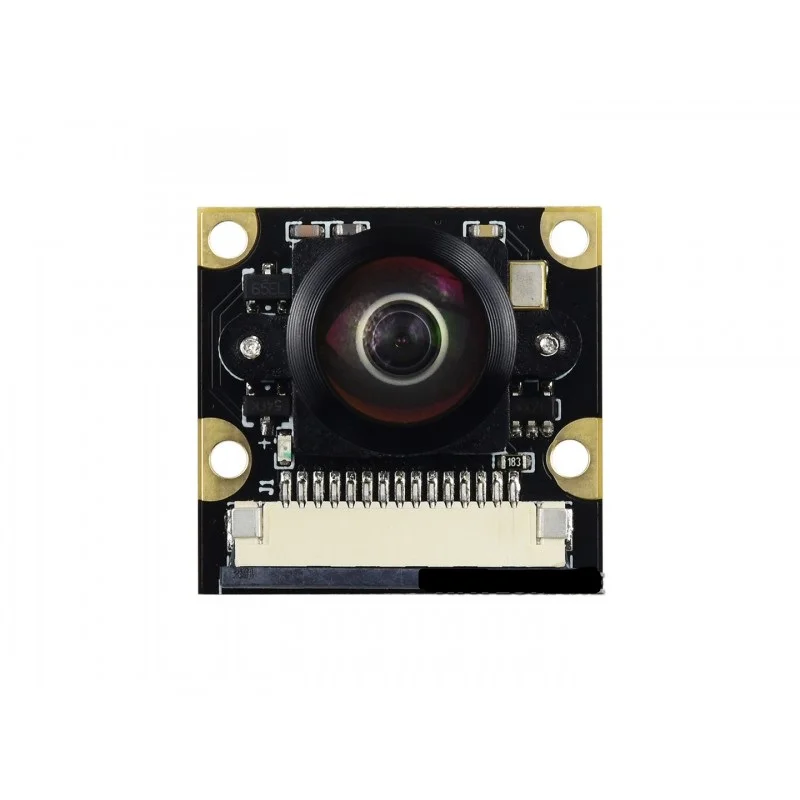

Waveshare Raspberry Pi Camera (M) Fisheye Lens Module
The Waveshare Raspberry Pi Camera (M) is a 5MP fisheye lens camera module designed for Raspberry Pi, featuring a 200-degree FOV and adjustable focus for wide-angle computer vision applications.
Features
- 5MP OV5647 sensor delivers 2592 x 1944 stills and 1080p30 video.
- Ultra-wide 200-degree fisheye field of view for immersive vision capture.
- Manually adjustable focus lens with F2.0 aperture for low-light performance.

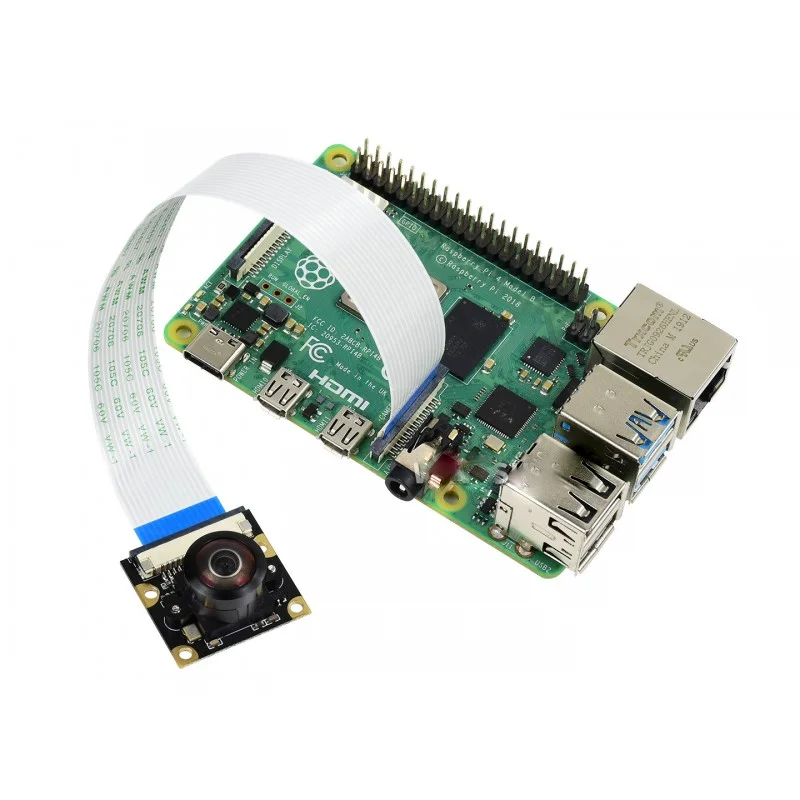

- Compatible with all Raspberry Pi revisions via 15-pin FFC ribbon cable.

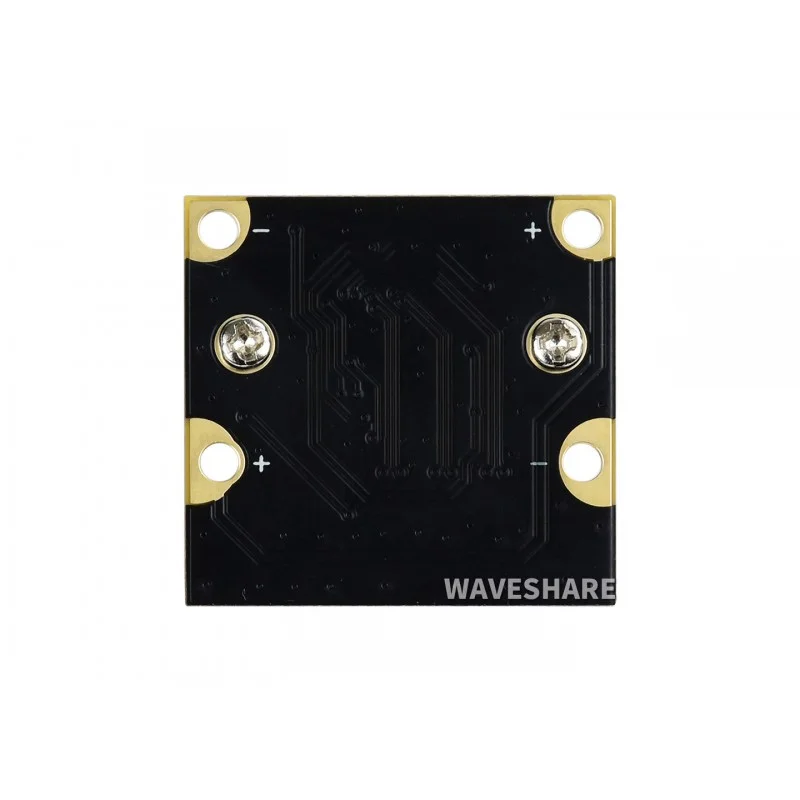

- Compact 25mm x 24mm board footprint for space-constrained projects.
Out of stock
The Waveshare Raspberry Pi Camera (M) integrates a 5-megapixel OV5647 CMOS sensor with a fixed fisheye lens, providing an extreme 200-degree horizontal field of view ideal for surveillance, robotics navigation, and immersive video capture. The module connects via a standard 15-pin FPC cable to the Raspberry Pi’s CSI-2 interface, supporting legacy Raspicam drivers and the newer libcamera software stack for flexible development.
With an F2.0 aperture and manually adjustable focus, the camera performs well in varied lighting conditions. Its compact form factor and support for common video modes like 1080p30 make it a versatile choice for makers and developers building wide-angle vision systems on the Raspberry Pi platform.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 11 × 5 × 3 cm |
