Waveshare Quad GPIO Expander for Raspberry Pi Pico

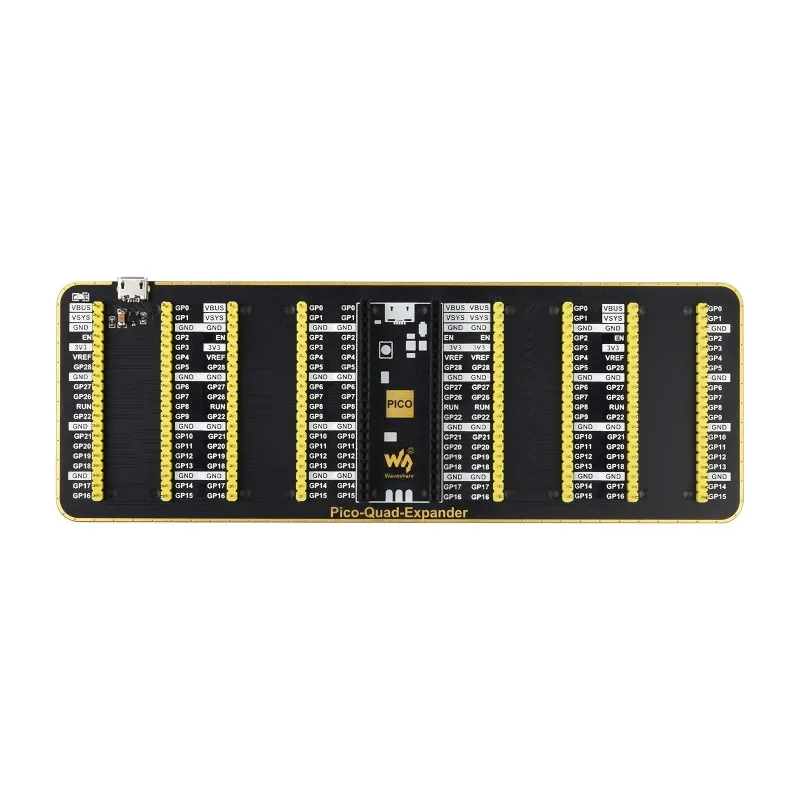

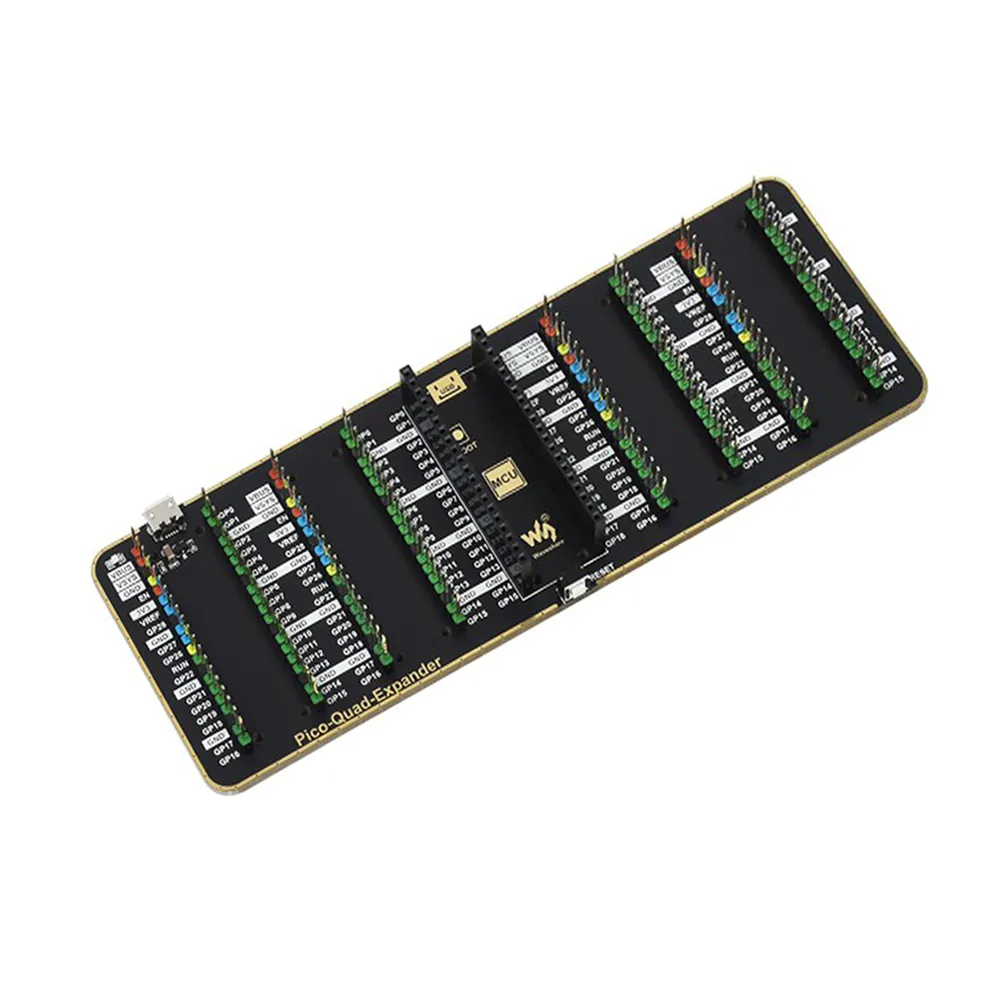

The Waveshare Quad GPIO Expander is designed for the Raspberry Pi Pico, enabling direct attachment via its central female pin header and expanding its GPIO to four sets of 2×20 male headers. It includes an extra USB connector for external power, ensuring stable operation for multiple expansion modules.
Features
- Directly attaches Raspberry Pi Pico for seamless integration.
- Provides four sets of 2×20 GPIO headers for extensive expansion capabilities.
- Dedicated USB power input ensures sufficient current for connected modules.
- Features clear, silk-screened pinout labels for intuitive connectivity.
- Utilizes an immersion gold process for enhanced durability and aesthetics.
Out of stock
This Waveshare Quad GPIO Expander significantly enhances the expansion capabilities of your Raspberry Pi Pico projects. It integrates a standard Raspberry Pi Pico female header, allowing for direct attachment of your Pico board (if equipped with male headers) or connection via jumper wires, streamlining your hardware setup for various applications.
The board effectively extends the Pico’s GPIO to four independent sets of 2×20 male headers, facilitating the connection of multiple Raspberry Pi Pico expansion modules simultaneously. To support this expanded functionality, a dedicated USB power input connector is provided, ensuring a stable and sufficient power supply for all connected peripherals and modules, preventing power-related issues during complex operations.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 17.7 × 6.2 × 2 cm |
