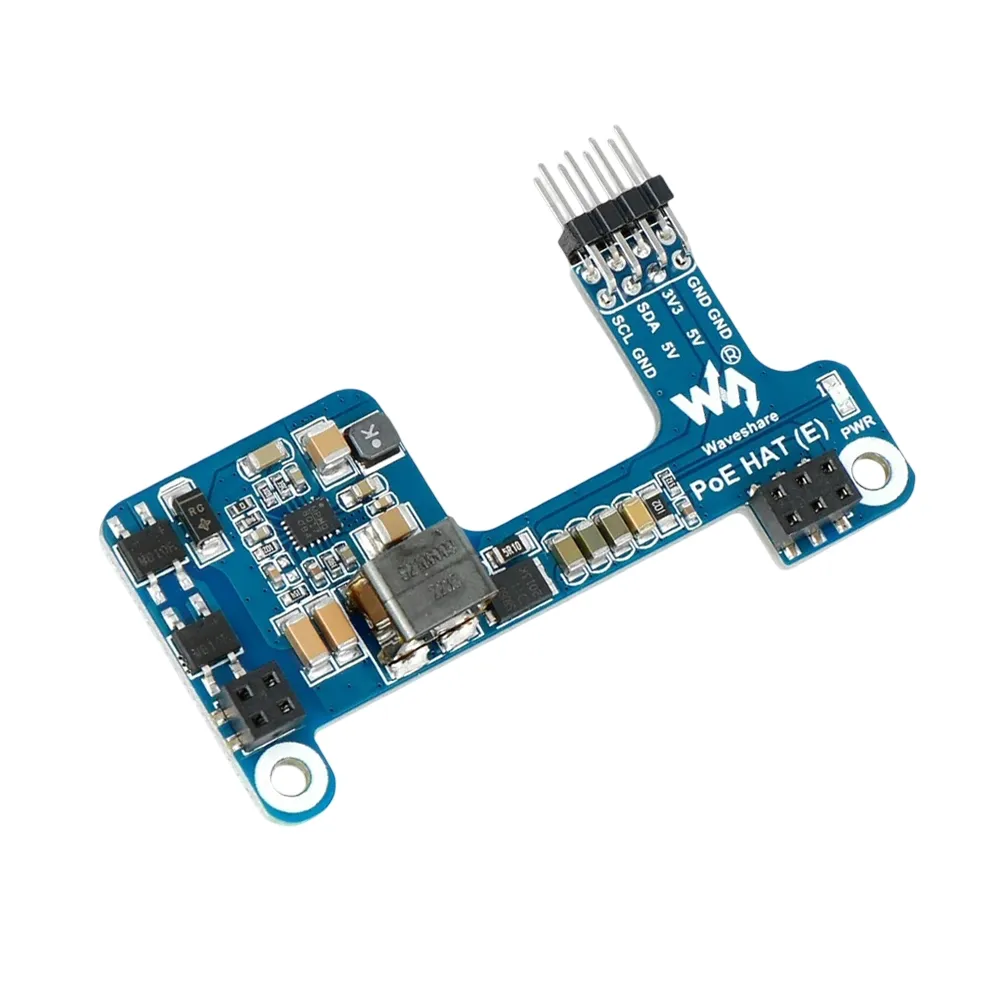

Waveshare PoE HAT (E) for Raspberry Pi 3B+/4B

₹1,459.00 (Inclusive of all taxes)
Out of Stock

The Waveshare Power over Ethernet HAT (E) provides IEEE 802.3af-compliant PoE capability for Raspberry Pi 3B+ and 4B, enabling both power and network via a single Ethernet cable. This compact HAT features a fully isolated SMPS and is compatible with the official Raspberry Pi case.

Features

  • Supports Raspberry Pi 3B+/4B, compatible with official Raspberry Pi cases.
  • IEEE 802.3af-compliant Power Over Ethernet (PoE) capability.

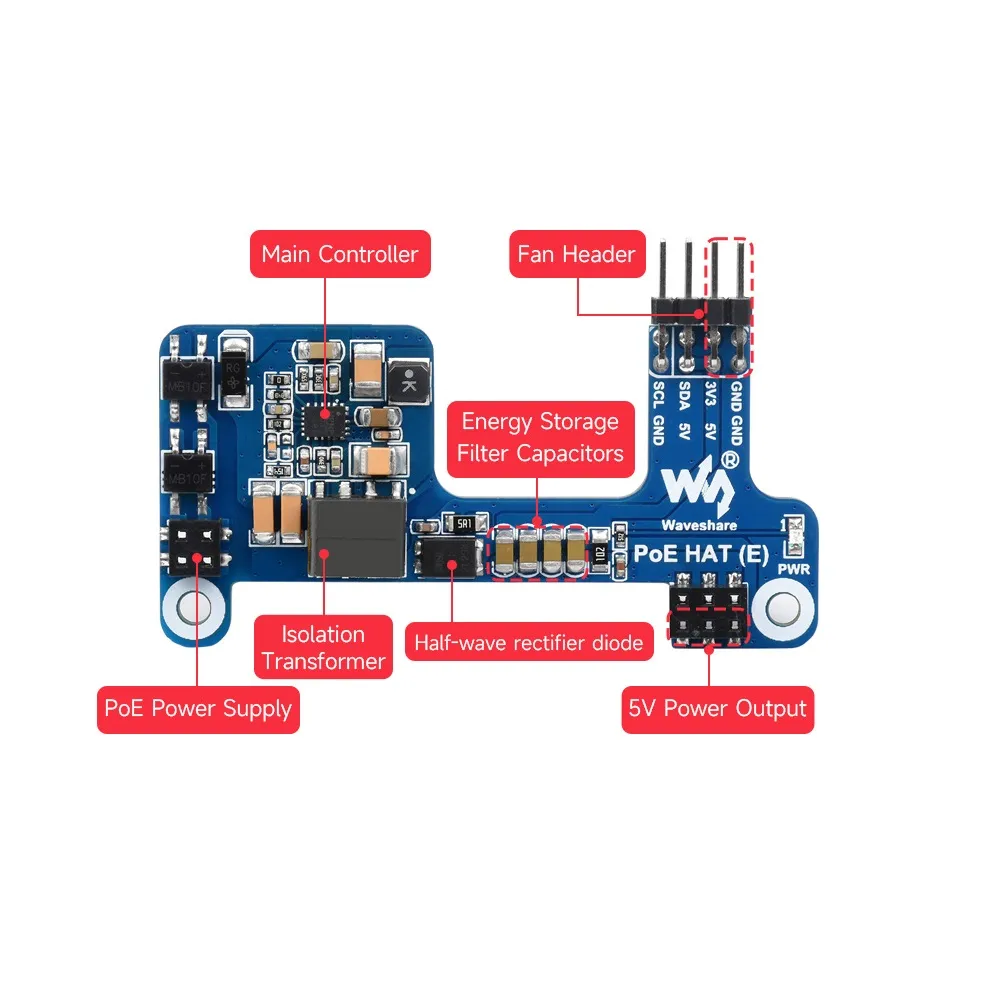

  • Features a fully isolated Switched-Mode Power Supply (SMPS).
  • Compact design with optimized component layout for flexible integration.
  • Delivers 5V DC at 2.5A to the Raspberry Pi.

Out of stock

Description

The Waveshare PoE HAT (E) is a compact, IEEE 802.3af-compliant Power Over Ethernet accessory designed for the Raspberry Pi 3B+ and 4B. This HAT enables the Raspberry Pi to receive both network connectivity and power supply over a single Ethernet cable, simplifying cabling and deployment in various embedded applications.

Equipped with a fully isolated switched-mode power supply (SMPS), the PoE HAT (E) ensures stable and reliable power delivery to your Raspberry Pi. Its optimized, smaller component layout offers enhanced flexibility for integration, making it a suitable choice for projects requiring power and data transmission through a single cable from an 802.3af-compliant PoE router or switch.

Key Features

  • Designed specifically for Raspberry Pi 3B+ and Raspberry Pi 4B models.

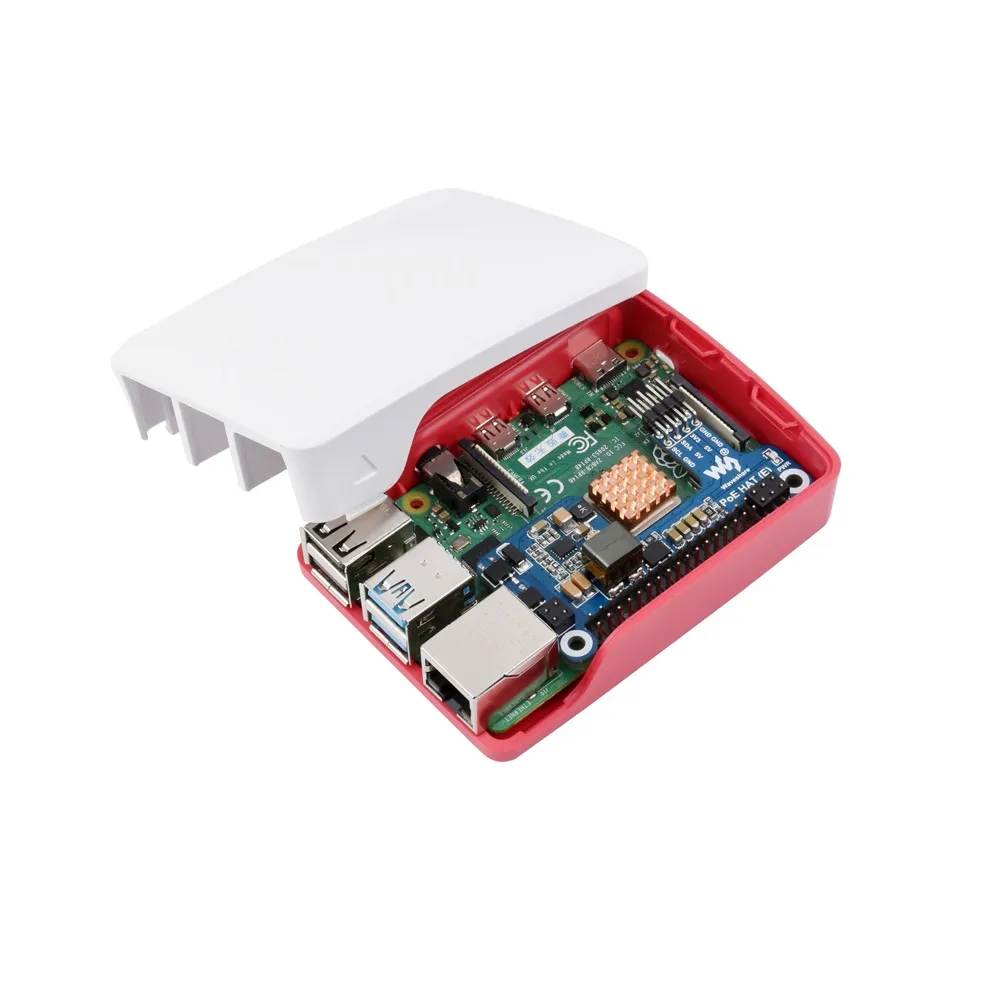

  • Integrates seamlessly with the official Raspberry Pi cases for a tidy setup.
  • Provides IEEE 802.3af-compliant Power Over Ethernet (PoE) functionality.
  • Delivers both power and network data to the Raspberry Pi via a single Ethernet cable.
  • Features a fully isolated Switched-Mode Power Supply (SMPS) for stable operation.
  • Offers a compact form factor with an optimized component layout for space-constrained projects.

Applications

  • Remote monitoring systems requiring simplified cabling.
  • Embedded network devices without local power outlets.
  • IoT deployments utilizing existing Ethernet infrastructure.
  • Robotics and automation projects needing consolidated power/data lines.
  • Compact Raspberry Pi setups where space for power adapters is limited.

Technical Specifications

CompatibilityRaspberry Pi 3B+, Raspberry Pi 4B
PoE StandardIEEE 802.3af
Power Output5V @ 2.5A DC
Power Supply TypeFully Isolated Switched-Mode Power Supply (SMPS)

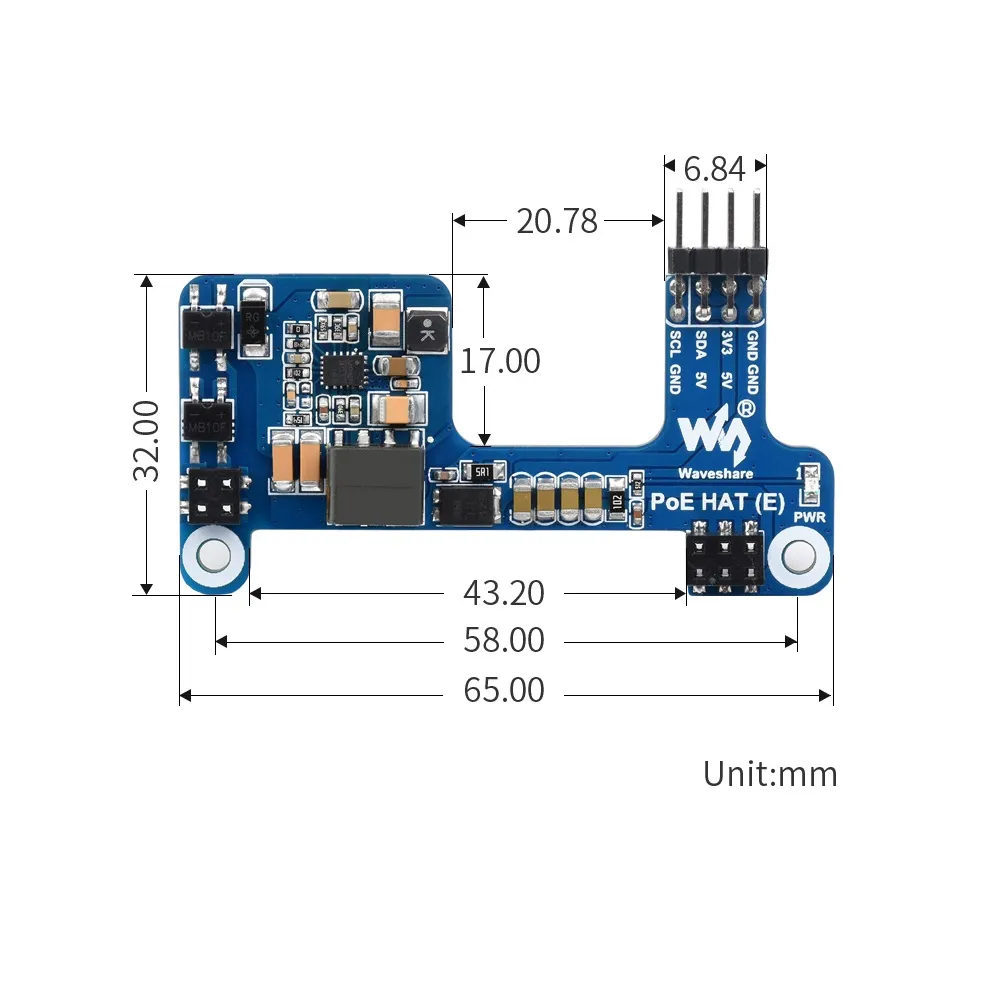

Dimensions (L x W)65.00mm × 32.00mm
Weight10g

Frequently Asked Questions

What Raspberry Pi models are compatible with the Waveshare PoE HAT (E)?

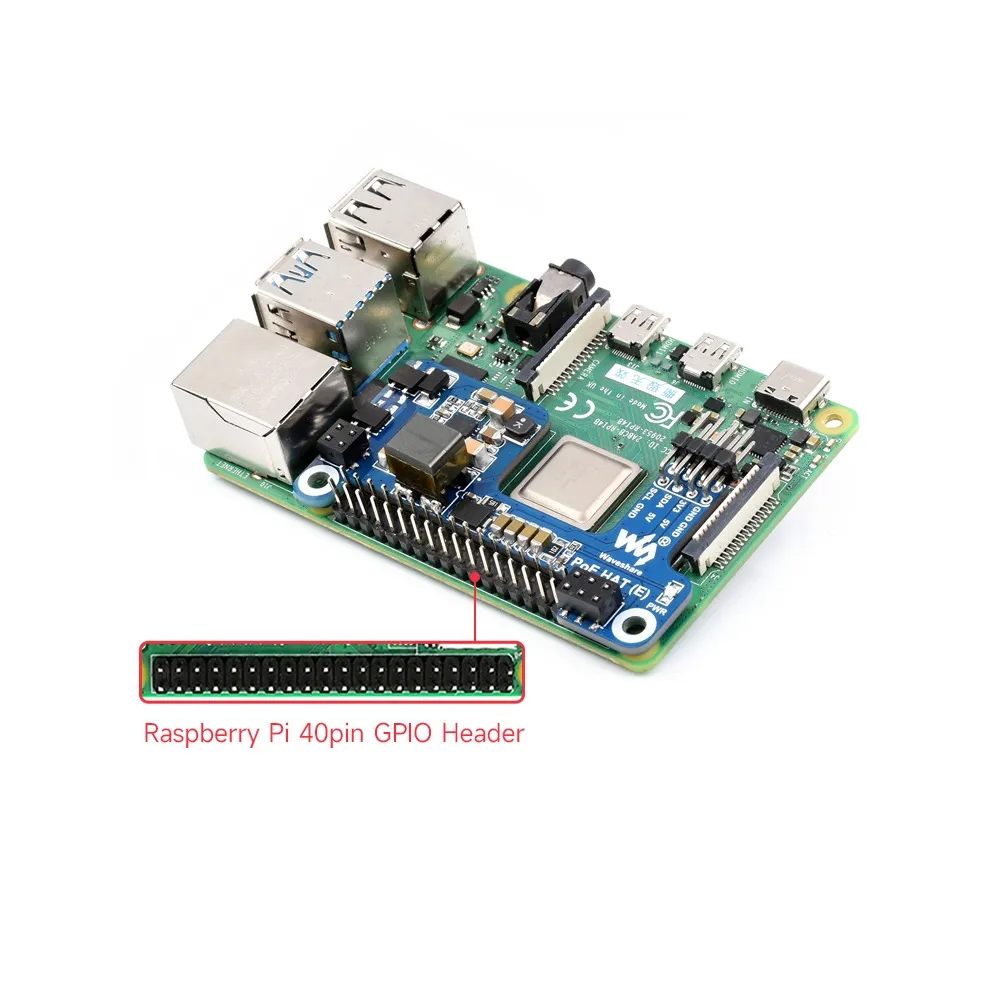

This Waveshare PoE HAT (E) is designed for seamless compatibility with the Raspberry Pi 3B+ and Raspberry Pi 4B models. It integrates directly onto the 40-pin GPIO header, providing a compact and efficient power and network solution. Its form factor also supports the official Raspberry Pi cases.

What PoE standard does this HAT support and what is the power output?

The Waveshare PoE HAT (E) is fully compliant with the IEEE 802.3af Power Over Ethernet standard. It provides a stable 5V DC power output at up to 2.5A, sufficient for most Raspberry Pi applications and connected peripherals, all delivered via the Ethernet cable.

Does the PoE HAT (E) provide an isolated power supply?

Yes, this HAT features a fully isolated switched-mode power supply (SMPS). This isolation is crucial for protecting your Raspberry Pi from potential electrical surges or ground loops on the Ethernet line, ensuring enhanced stability and reliability in industrial or demanding environments.

Can I use this HAT with a standard Ethernet switch, or do I need a special one?

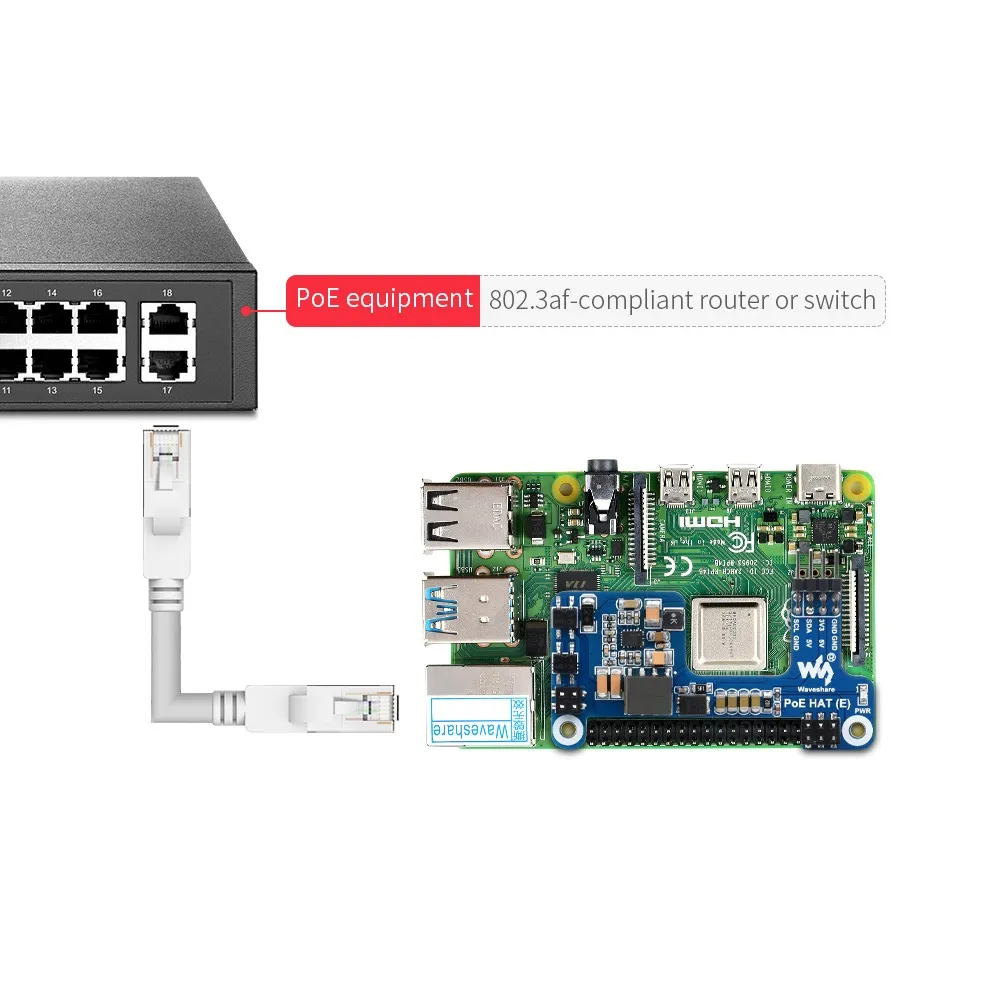

To utilize the PoE functionality of the Waveshare HAT (E), you need an IEEE 802.3af-compliant PoE-enabled switch or injector. A standard Ethernet switch without PoE capabilities will provide network connectivity but will not deliver power to the Raspberry Pi through the Ethernet cable.

Package Includes

  • 1x Waveshare Power over Ethernet HAT (E)

Additional Information

Weight 0.01 kg
Dimensions 6.5 × 3.2 cm
