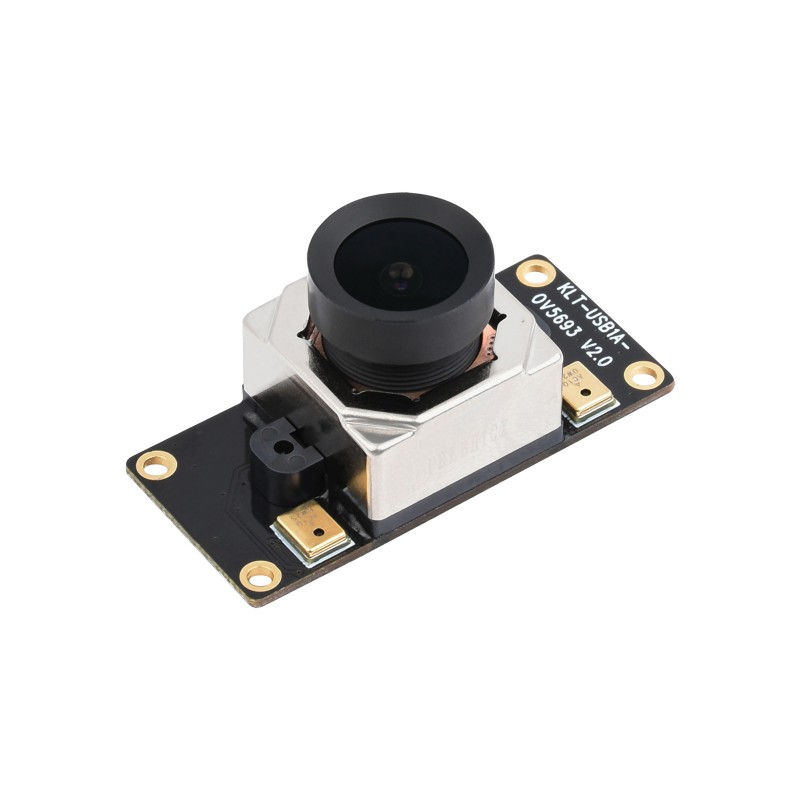

Waveshare OV5693 5MP USB Camera Module, Fixed-focus, Auto Focusing - M12 Mount
The Waveshare OV5693 is a 5MP USB camera module featuring a 1/4-inch CMOS sensor and a fixed-focus M12 lens with a 135° diagonal field of view, designed for integration into computer vision, telepresence robotics, and FPV monitoring systems.
Features
- 5MP OV5693 CMOS sensor delivering 2592 x 1944 resolution.
- Fixed-focus M12 lens with 2.5mm focal length and F2.1 aperture.
- Wide 135° diagonal field of view for expansive scene capture.
- USB 2.0 interface compatible with Windows, Linux, and MacOS.
- Compact 18 x 18 x 19.69 mm module size for space-constrained builds.
Out of stock
The Waveshare OV5693 USB camera module integrates a high-sensitivity 1/4-inch CMOS sensor, providing a 5-megapixel still image output and supporting multiple video streaming formats including MJPG and YUY2. Its fixed-focus optical design, with a 2.5mm focal length and F2.1 aperture, is calibrated for sharp imaging at a consistent working distance, eliminating the need for manual focus adjustments.
Engineered for reliable operation, the module operates from a standard 5V USB power supply with a 500mA current draw and maintains functionality within a 0°C to 50°C temperature range. The compact, board-level form factor and standardized M12 lens mount facilitate direct integration into custom drone payloads, robotic vision systems, and desktop monitoring applications.
Additional Information
| Weight | 0.054 kg |
|---|---|
| Dimensions | 1.8 × 1.8 × 1.969 cm |
